Evaporative Emission Control System

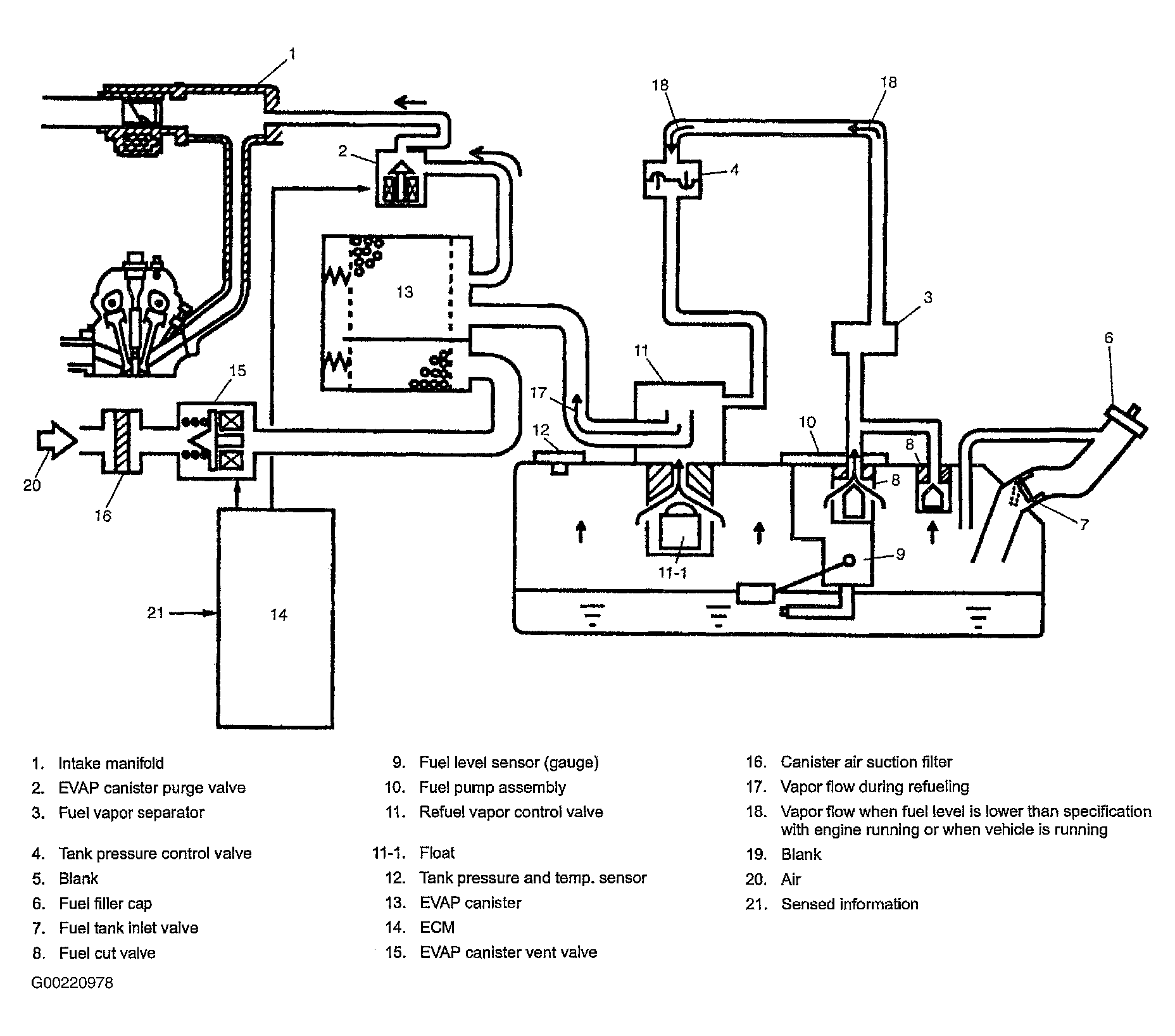

The role of the system is to prevent fuel vapor from discharging into the air. Vapor produced in the fuel tank is stored in the EVAP canister. The system's component parts are shown in Fig 1 .
The role of the system is to prevent fuel vapor from discharging into the air. Vapor produced in the fuel tank is stored in the EVAP canister. The system's component parts are shown in Fig 1 .
