Fuel Tank Pressure Control Valve: Installation

  1. Install tank pressure control valve to fuel tank in such direction that vapor flows from its green (1) nozzle side towards canister (A). See Fig 1 .
  2. Connect hoses to tank pressure control valve and clamp them securely.
Fig 1: Locating Tank Pressure Control Valve (Aerio)
G00276027Courtesy of SUZUKI OF AMERICA CORP.


  1. Install tank pressure control valve to fuel tank in such direction that vapor flows from its black nozzle side (1) towards canister side (2). See Fig 1 & TORQUE SPECIFICATIONS  .
  2. Connect hoses to tank pressure control valve and clamp them securely.

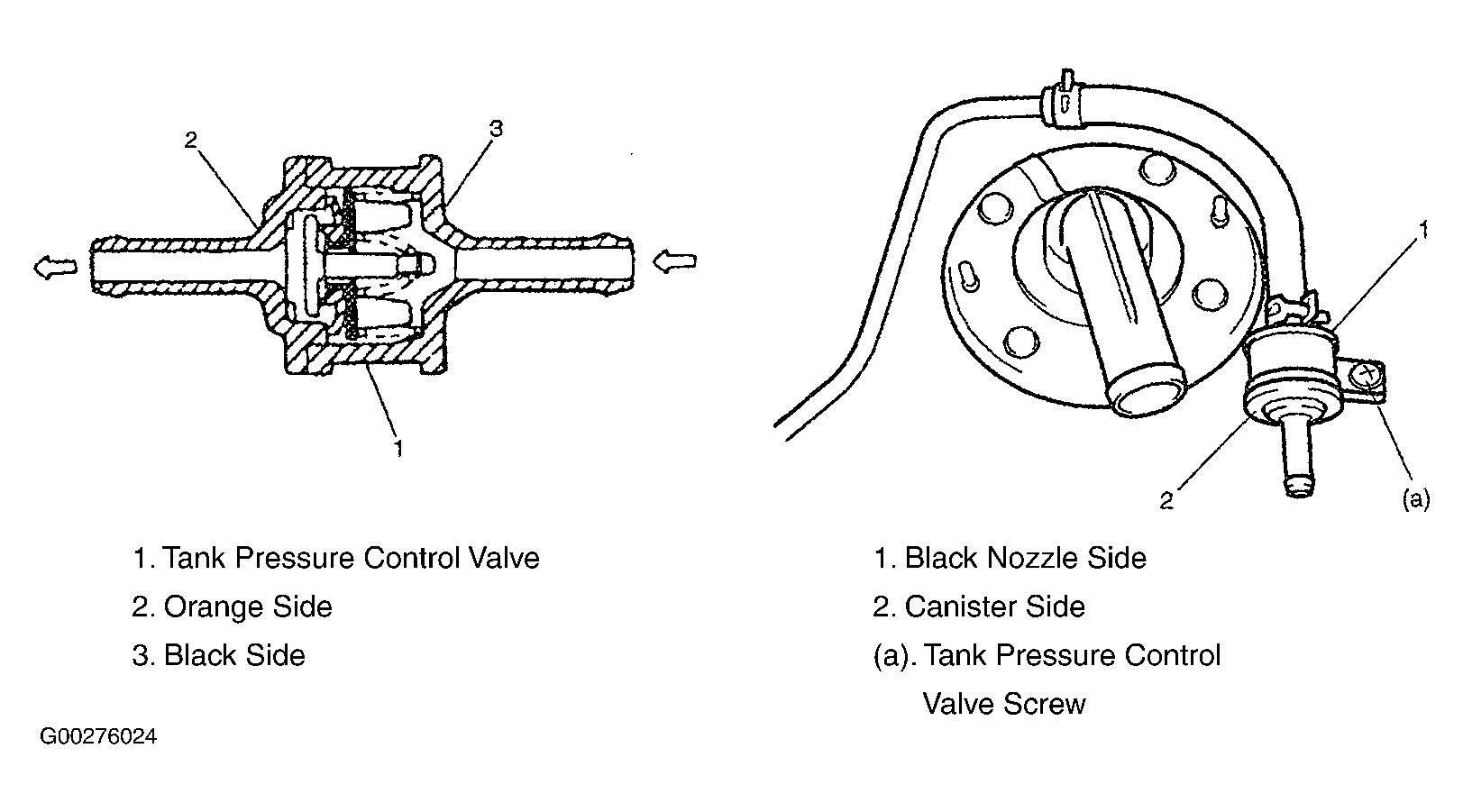

Fig 1: Identifying Fuel Tank Pressure Control Valve (Grand Vitara, Vitara & XL-7)
G00276024Courtesy of SUZUKI OF AMERICA CORP.
