Ignition System Symptom Diagnosis

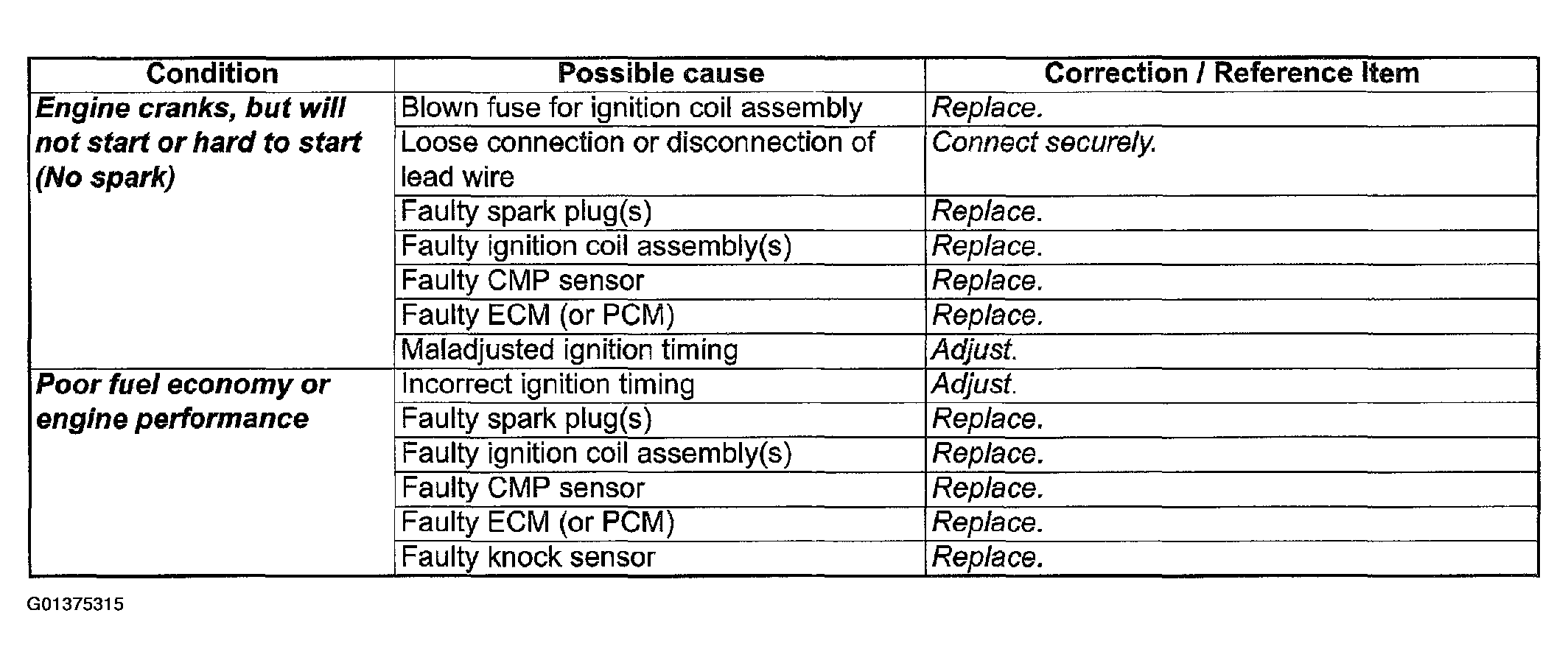

Fig 1: Ignition System Symptom Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
