Fuse Box

The dash fuse panel is located behind a cover in the dash to the left of the steering column. For fuse identification, refer to illustration. See Fig 1 .

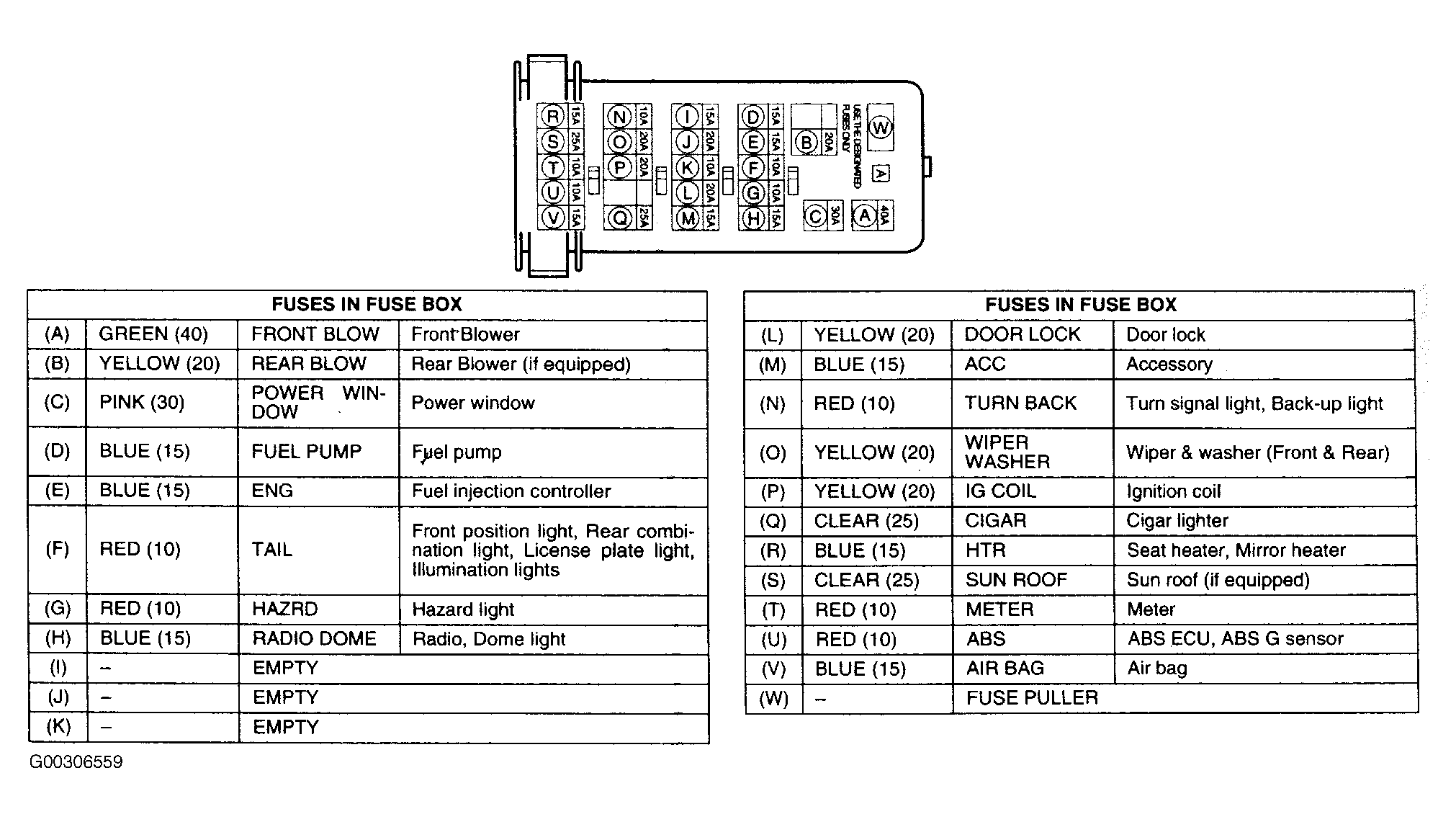

Fig 1: Identifying Under Hood Fuse/Relay Box

Courtesy of SUZUKI OF AMERICA CORP.
