Sliding Roof Switch Inspection

Check switch for continuity between terminals as shown below.

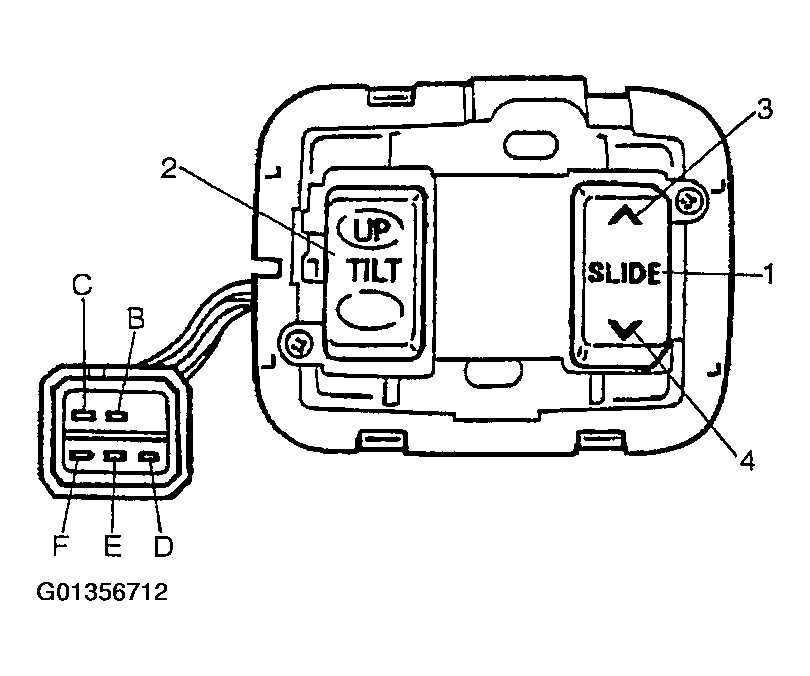

Fig 1: Identifying Sliding Roof Switch Terminals

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Slide Switch (1) Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Tilt Switch (2) Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.
