Power Sliding Roof System Symptom Diagnosis

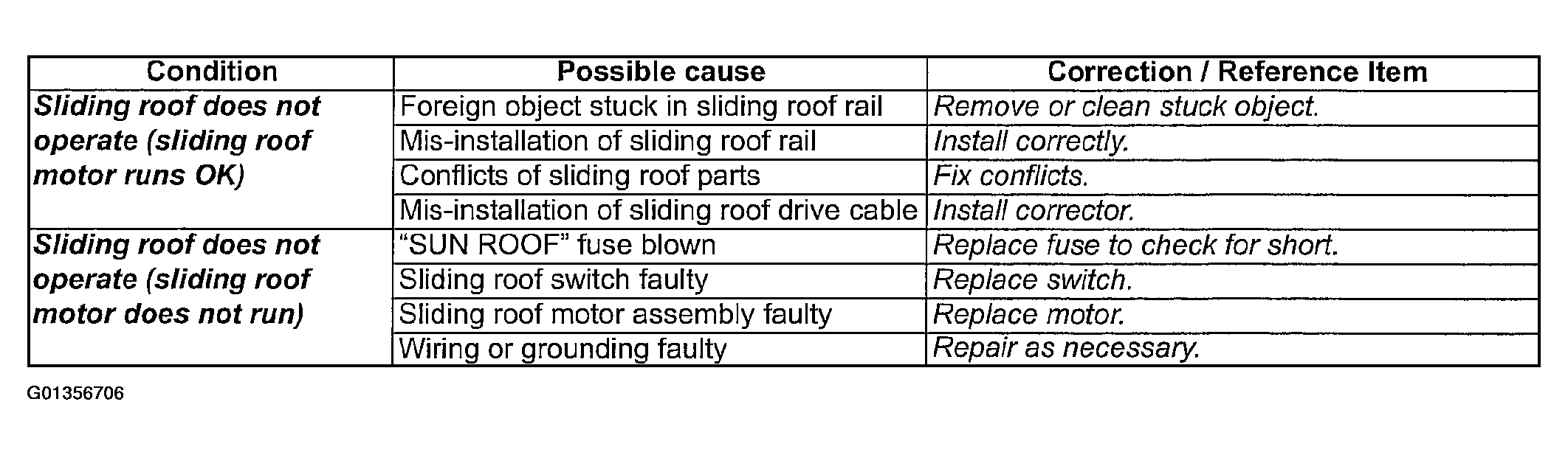

Fig 1: Power Sliding Roof System Symptom Diagnosis Chart
G01356706Courtesy of SUZUKI OF AMERICA CORP.
