Rear Door Lock Assembly Removal And Installation: Removal

  1. Remove door trim and door sealing cover referring to Steps 1) to 5) of "Removal" in REAR DOOR GLASS REMOVAL AND INSTALLATION (2003 models) or REAR DOOR GLASS REMOVAL AND INSTALLATION (2004 models).
  2. Remove door opening control rod (2) and door lock control rod (1).

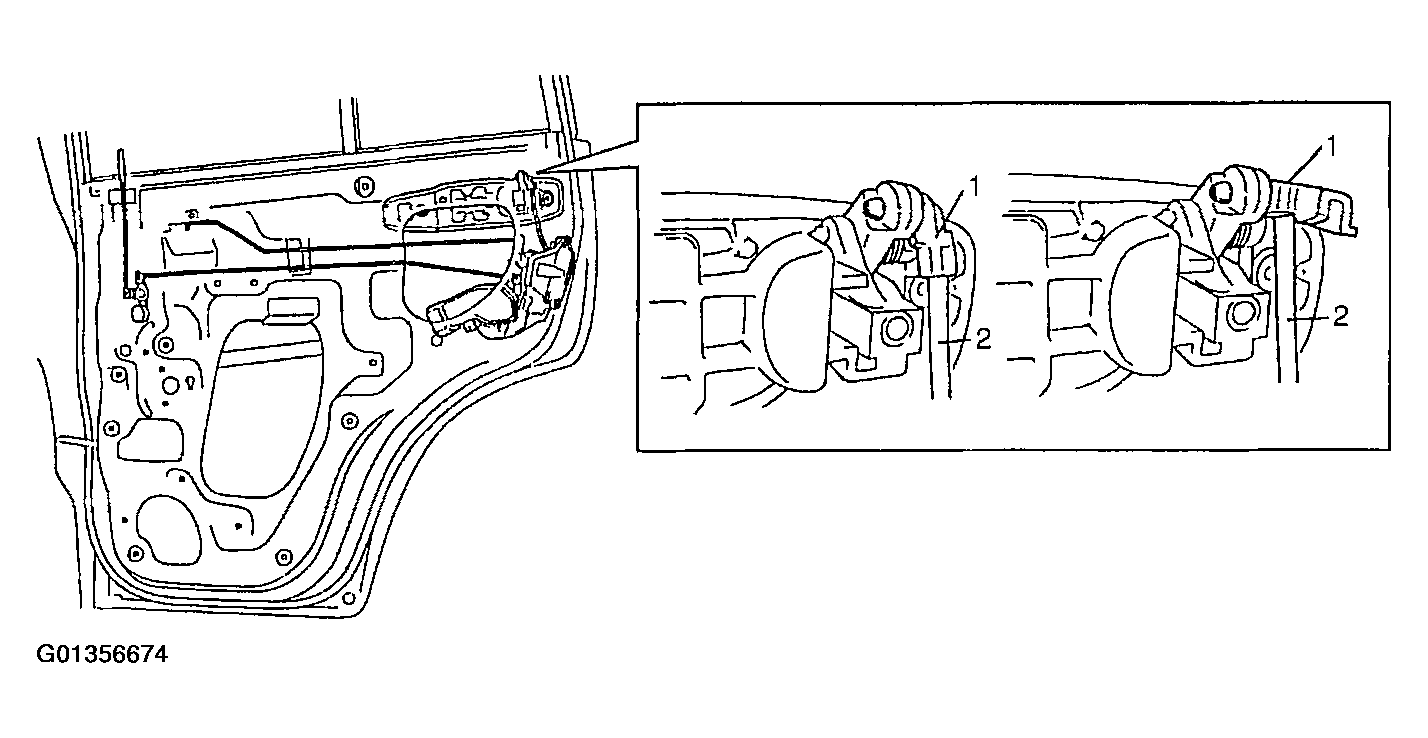

    Fig 1: Removing Components
    G01356674Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove lock assembly.
