Key Cylinder Switch Inspection

Inspect continuity at terminals according to the key action.

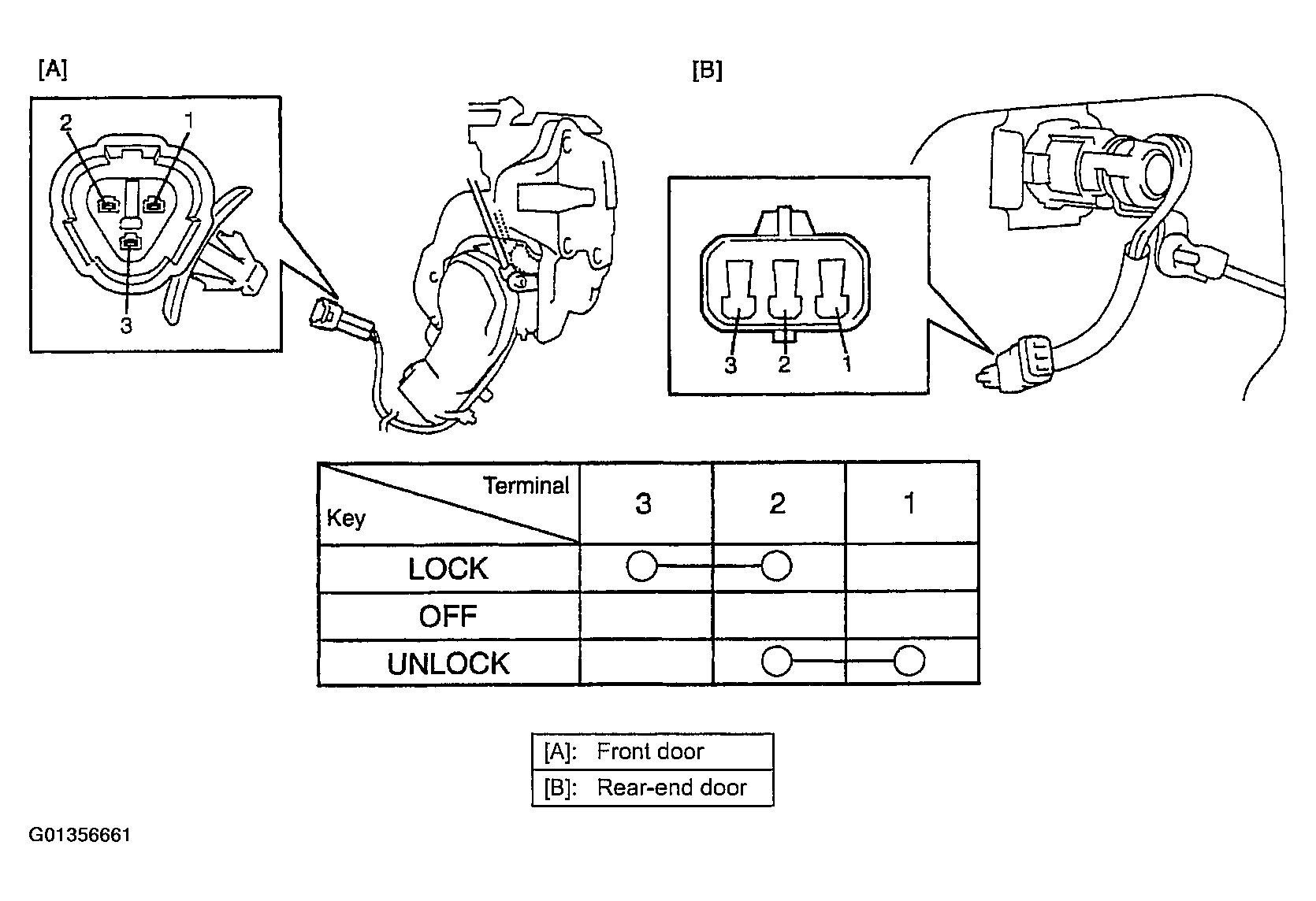

Fig 1: Checking Key Cylinder Switch
G01356661Courtesy of SUZUKI OF AMERICA CORP.
