Power Door Lock System Location

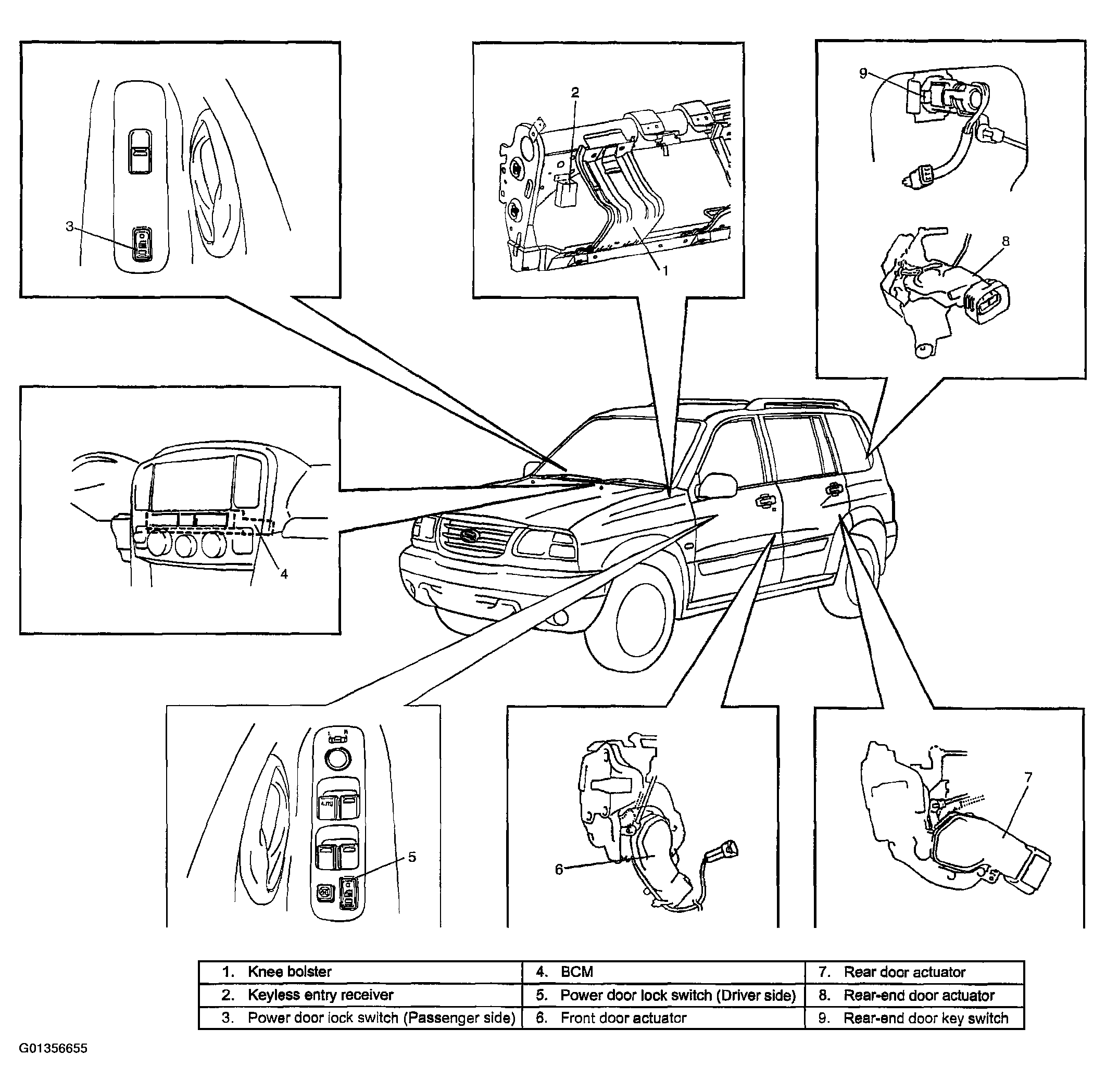

Fig 1: Locating Power Door Lock System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
