Steering Column Removal and Installation: Installation

CAUTION: After tightening steering column mounting bolts, steering shaft joint bolts should be tightened.
  1. Be sure that front wheels and steering wheel are in straight-ahead position.
  2. For A/T vehicle, connect shift (key) interlock cable (1) to ignition switch with ignition switch turned at "ACC" position. And then turn ignition switch "LOCK" position.
    Fig 1: Turning Ignition Switch To "LOCK" Position
    G01325446Courtesy of SUZUKI OF AMERICA CORP.
  3. Align cutting point "A" of steering column assembly (1) with bolt hole "B" of steering upper shaft upper joint as shown in the figure. Then connect steering upper shaft upper joint.
    Fig 2: Aligning Cutting Point "A" Of Steering Column Assembly With Bolt Hole "B" Of Steering Upper Shaft Upper Joint
    G01325447Courtesy of SUZUKI OF AMERICA CORP.
  4. Install steering column assembly (1) with contacting upper side of lower bracket slits to mounting bolts. Tighten steering column lower mounting nuts (3) first and then upper mounting bolts (2) to specified torque.

    Tightening torque

    Steering column mounting bolts and nuts (b):  25 N.m (2.5 kg-m, 18.0 lb-ft)

    Fig 3: Installing Steering Column Assembly
    G01325448Courtesy of SUZUKI OF AMERICA CORP.
  5. Install new steering upper shaft upper joint bolt (2) and nut (1). Tighten new steering upper shaft upper joint nut (1) to specified torque.
    NOTE: Do not reuse steering upper shaft upper joint bolt and nut.

    Be sure to use new bolt and nut when installing.

    Tightening torque

    Steering upper shaft upper joint nut (a):  23 N.m (2.3 kg-m, 17.0 lb- ft)

    Fig 4: Installing Steering Upper Shaft Upper Joint Bolt & Nut
    G01325449Courtesy of SUZUKI OF AMERICA CORP.
  6. If contact coil and combination switch assembly is removed, install it, referring to Contact Coil and Combination Switch Assembly Removal and Installation  .
  7. Connect all connectors that have been removed in Removal  .

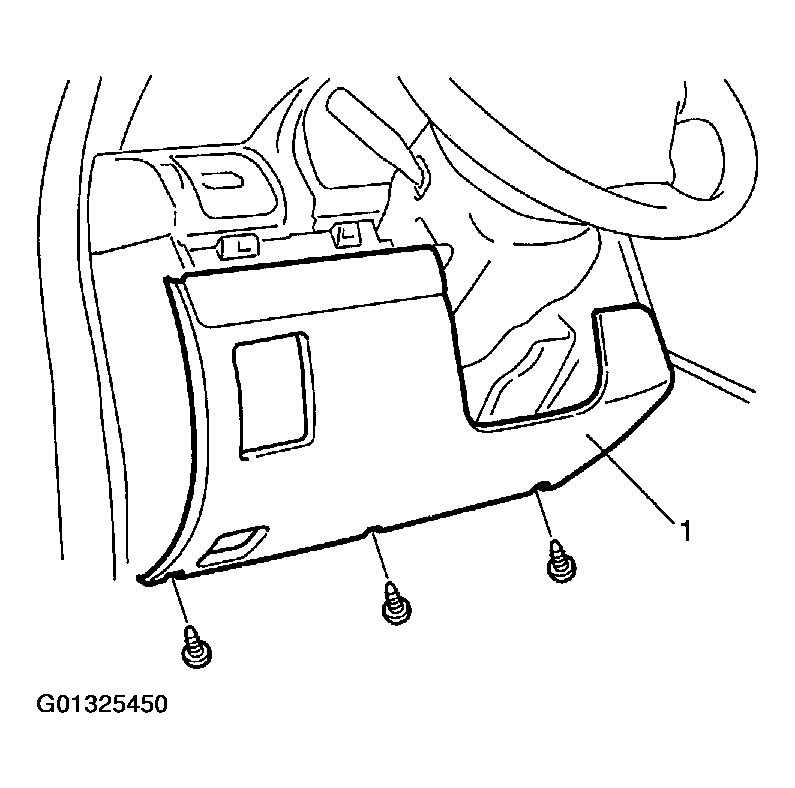

  8. Install steering column hole cover (1).
    Fig 5: Installing Steering Column Hole Cover
    G01325450Courtesy of SUZUKI OF AMERICA CORP.
  9. If steering wheel is removed, install it by referring to Steering Wheel Removal and Installation "Steering Wheel Removal and Installation:".
  10. Connect negative (-) cable to battery.
  11. After installing steering column assembly, be sure to enable air bag system by referring to AIR BAG RESTRAINT SYSTEMS .
