Second Seat Components for H27 Engine Model

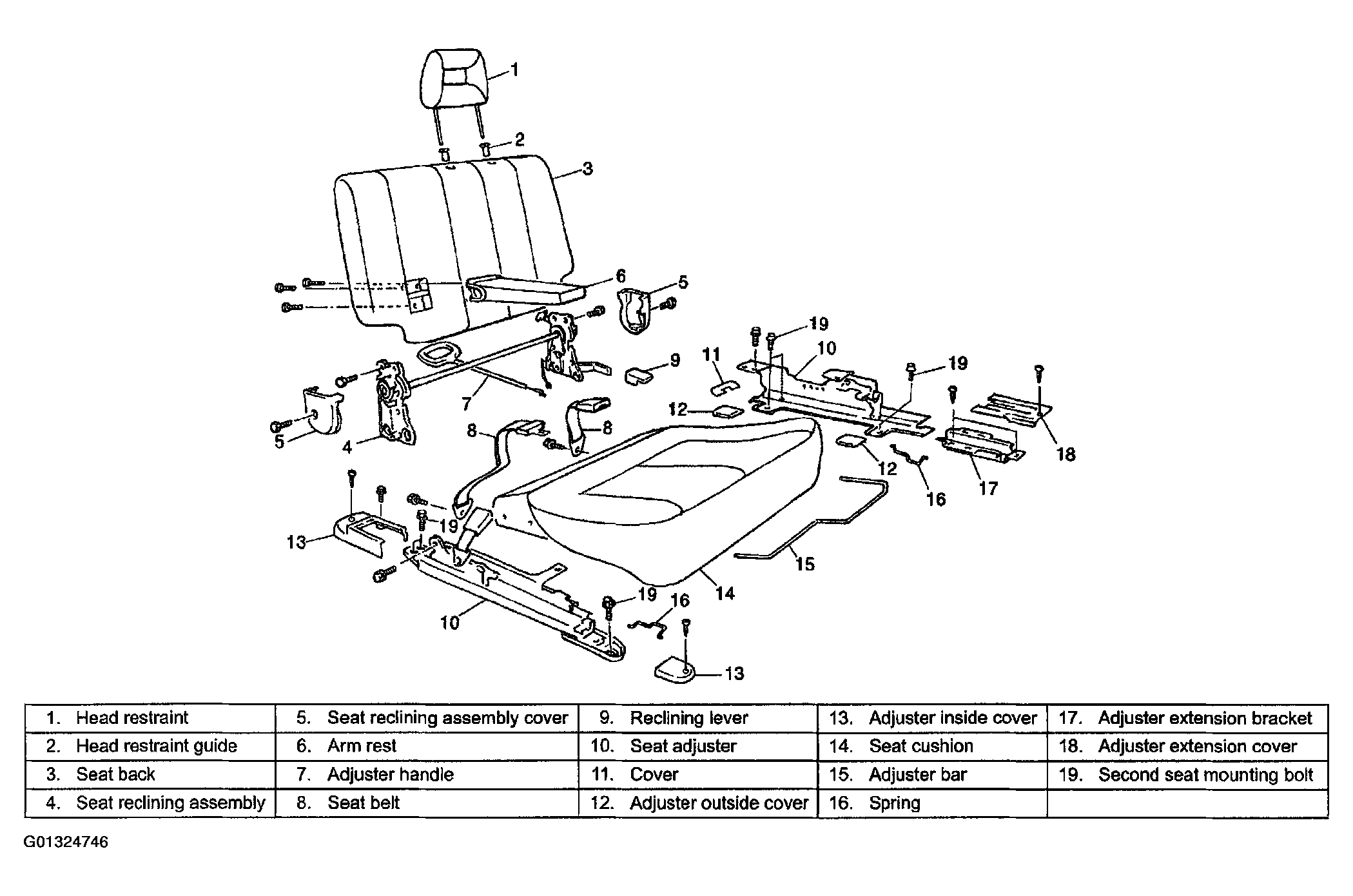

Fig 1: Exploded View Of Second Seat Components (H27 Engine Model)
G01324746Courtesy of SUZUKI OF AMERICA CORP.
