Body Electrical Control System Wiring Circuit Diagram

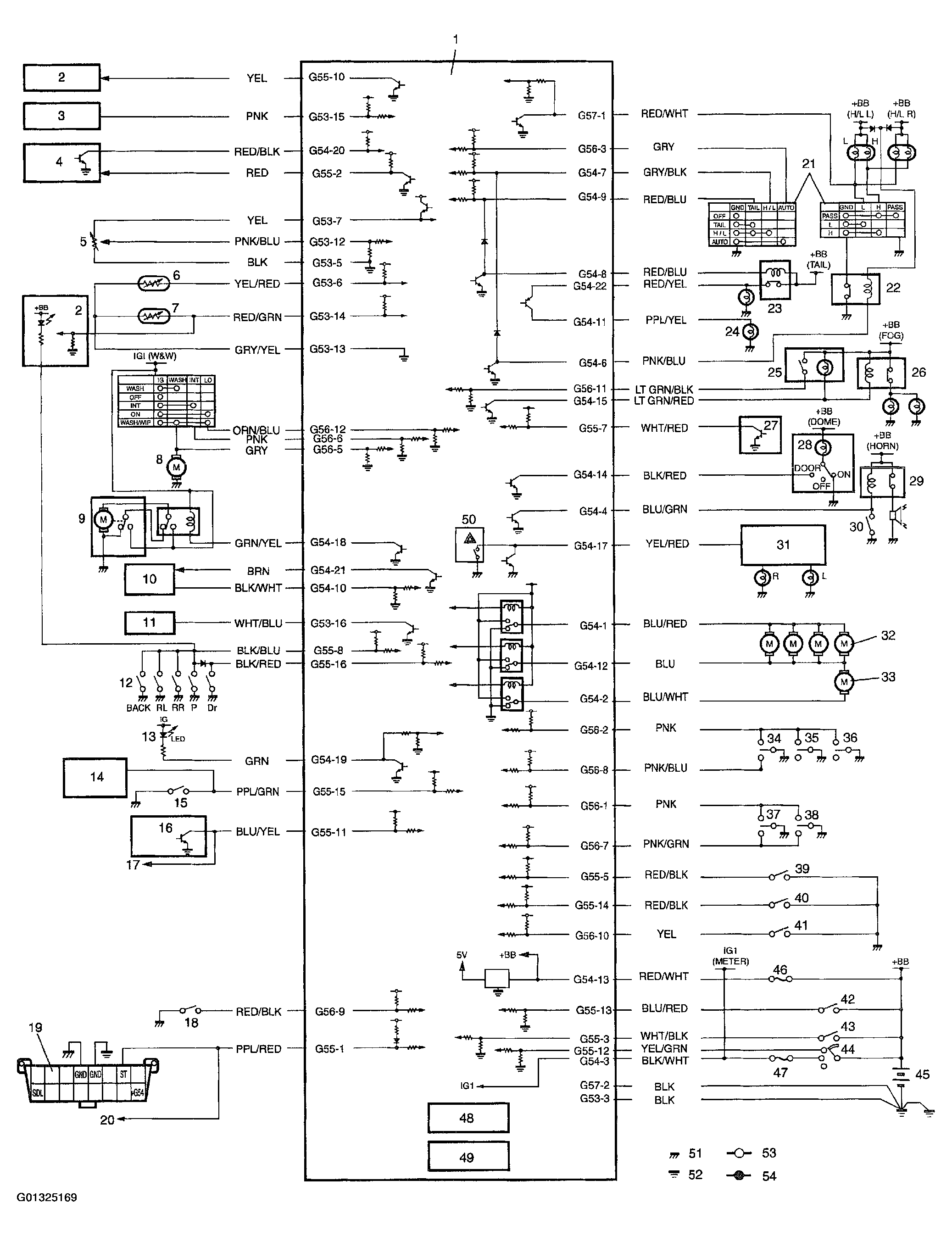

Fig 1: Identifying Body Electrical Control System Wiring Circuit Diagram (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

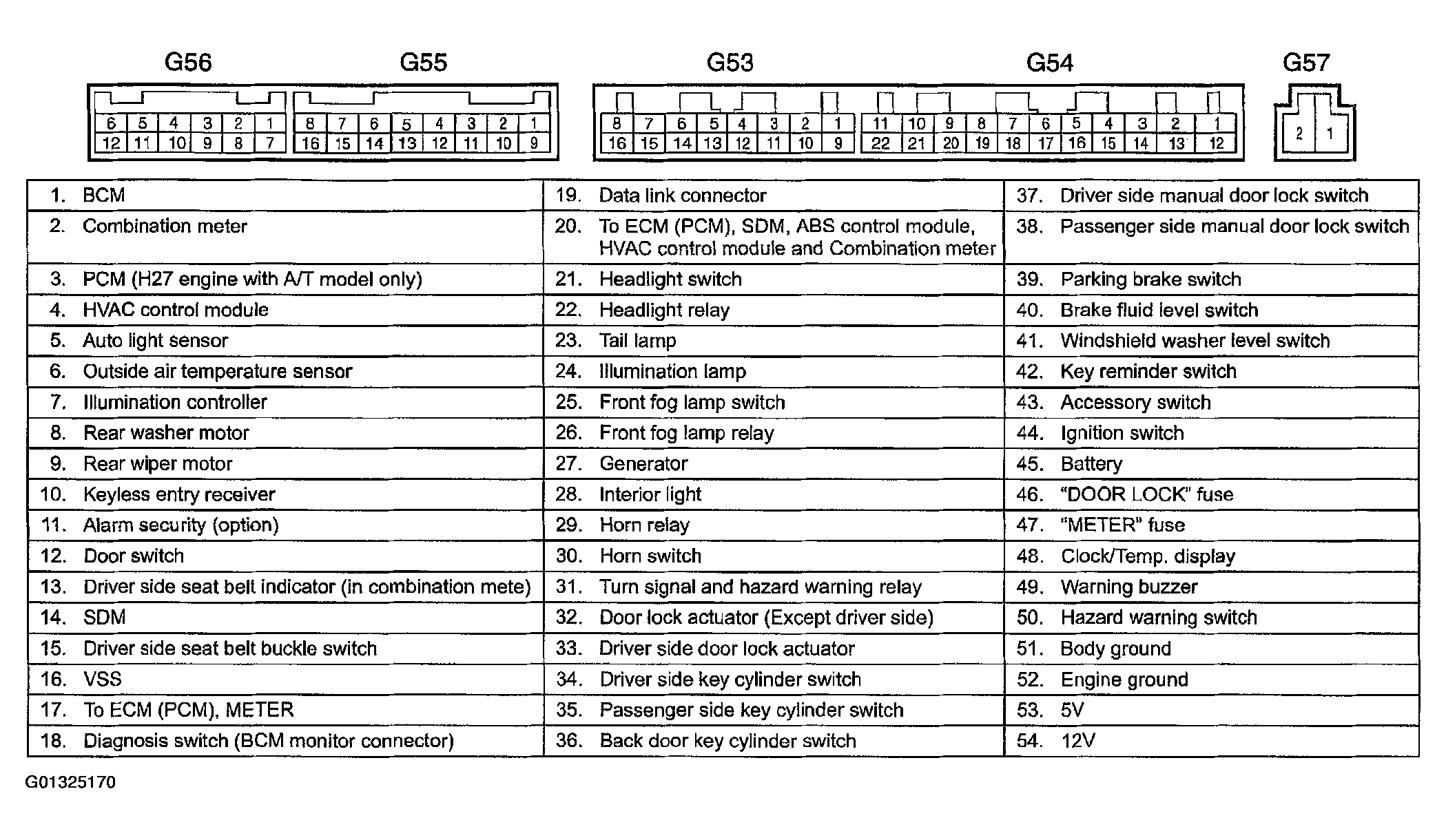

Fig 2: Identifying Body Electrical Control System Wiring Circuit Diagram (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
