BCM Removal And Installation: Removal

Disconnect negative (-) cable at battery.
Remove center lower garnish (1).

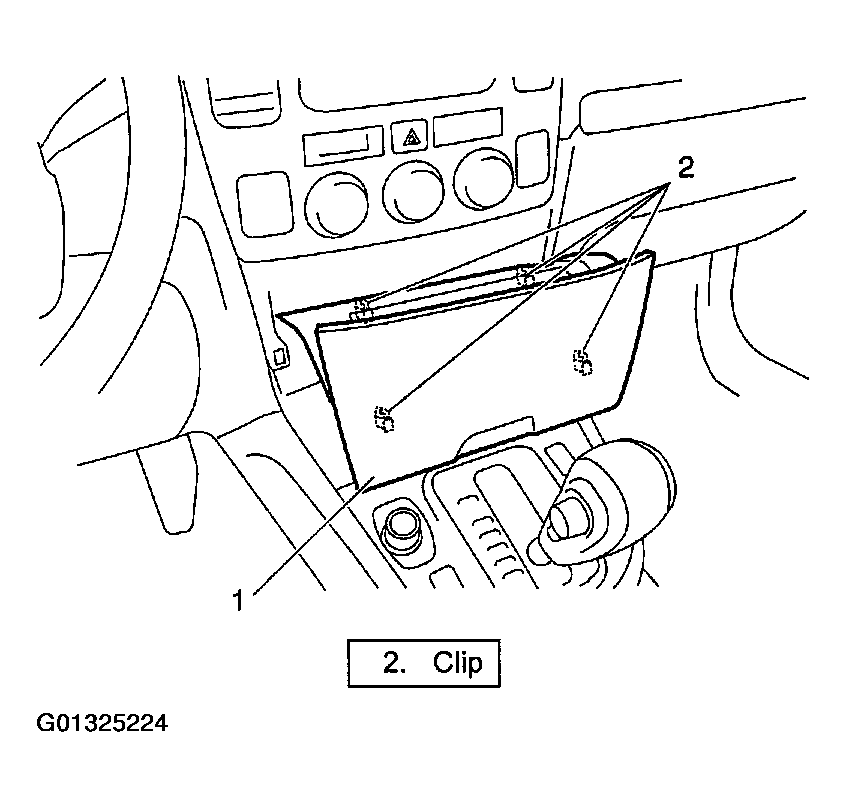

Fig 1: Removing Center Lower Garnish
Courtesy of SUZUKI OF AMERICA CORP.
Remove center garnish mounting screw (1) and then pull off center garnish.
Remove harness and controller cover (2).

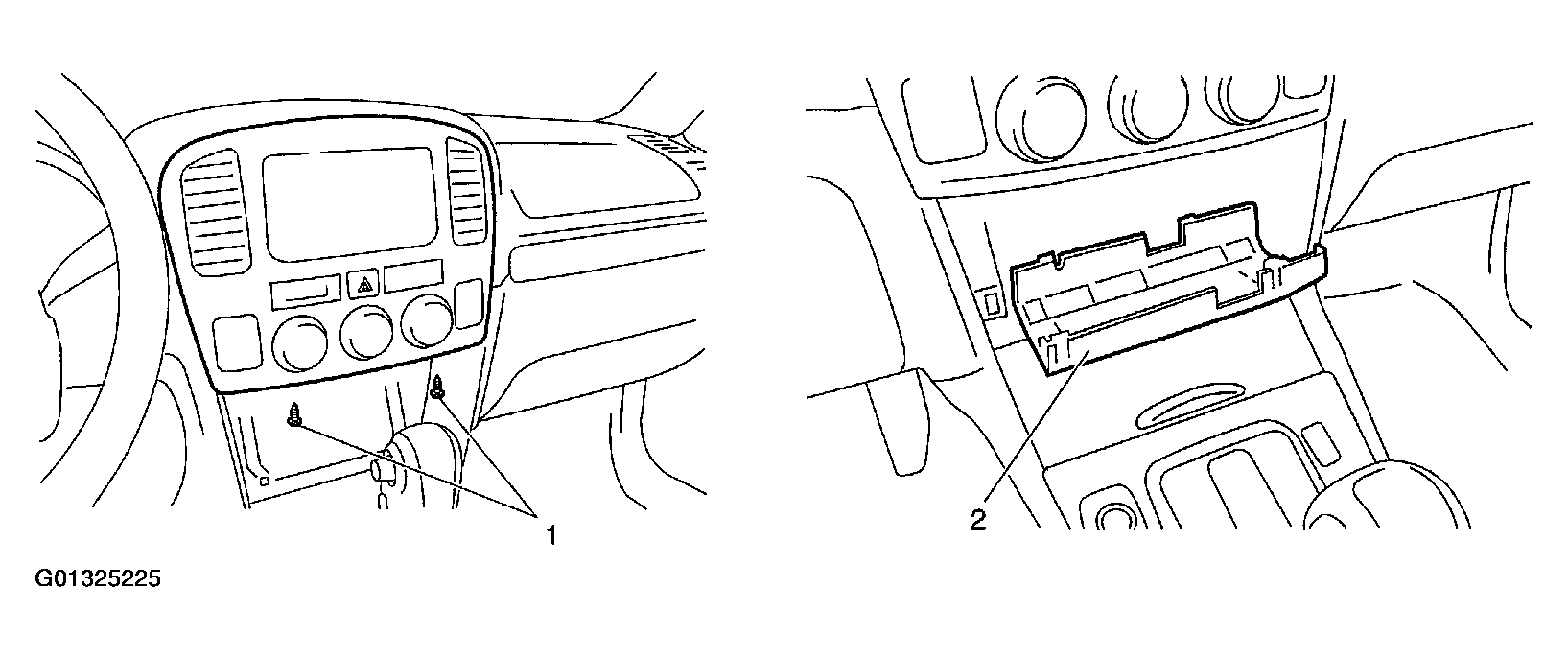

Fig 2: Removing Harness and Controller Cover
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect BCM connectors and HVAC control module connector from each controller.
Remove center garnish (1) with BCM (2) and HVAC control module.

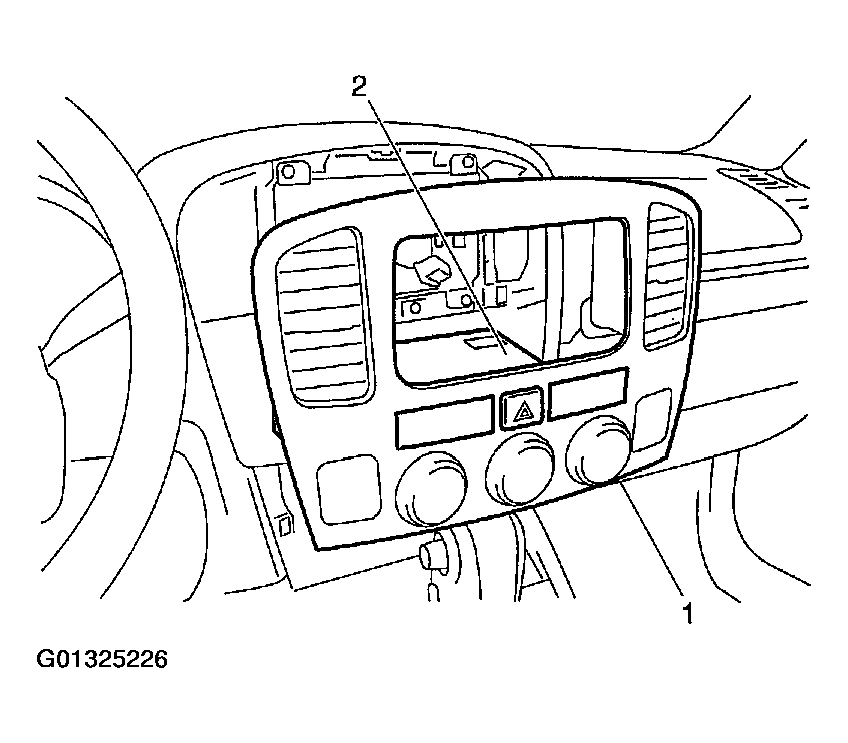

Fig 3: Removing Center Garnish With BCM and HVAC Control Module
Courtesy of SUZUKI OF AMERICA CORP.
Remove BCM from center garnish.

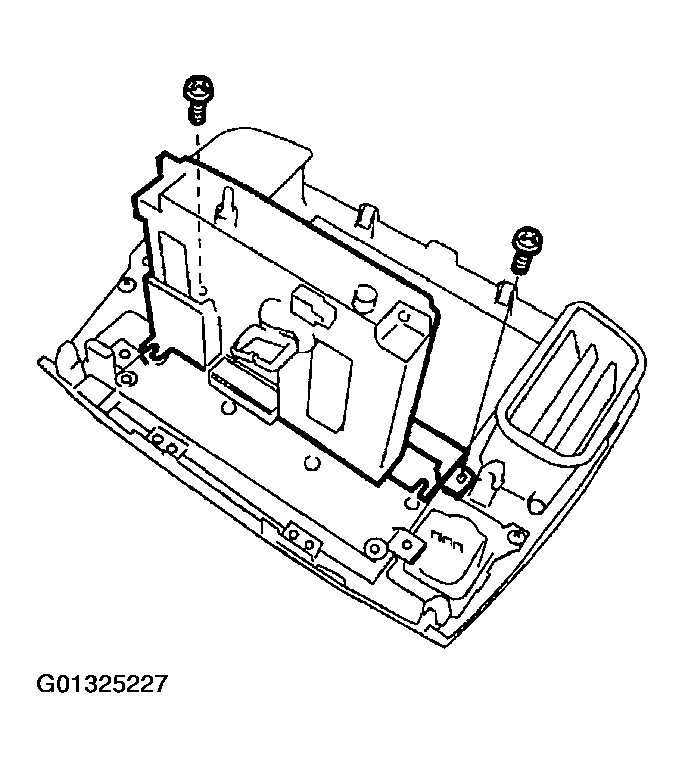

Fig 4: Removing BCM From Center Garnish
Courtesy of SUZUKI OF AMERICA CORP.
