DTC B1131 (No. 31): Illumination Control Input Circuit Open
>>
Diagnostic Trouble Codes Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Trouble Codes Troubleshooting

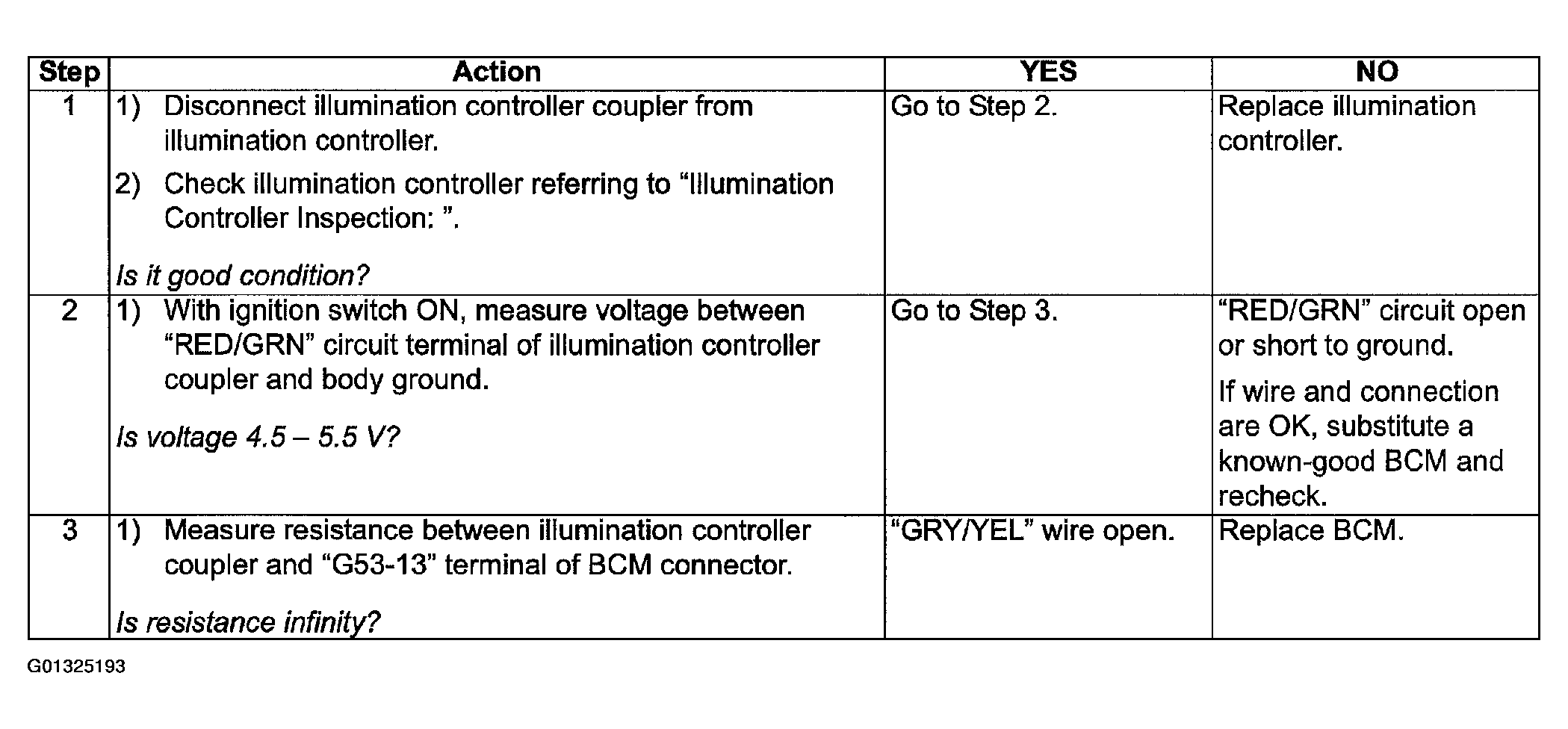

Fig 1: DTC B1131 (No. 31) Troubleshooting Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
