Diagnostic Trouble Codes Detecting Condition and Possible Cause

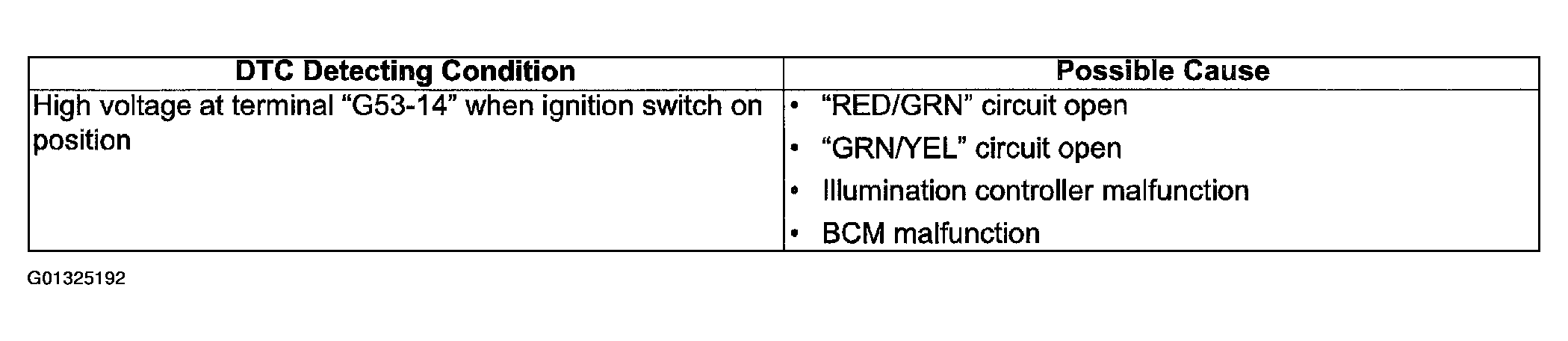

Fig 1: DTC B1131 (No. 31) Detecting Condition & Possible Cause Table
G01325192Courtesy of SUZUKI OF AMERICA CORP.
