Overdrive and TCC OFF Command Signal Circuit Check

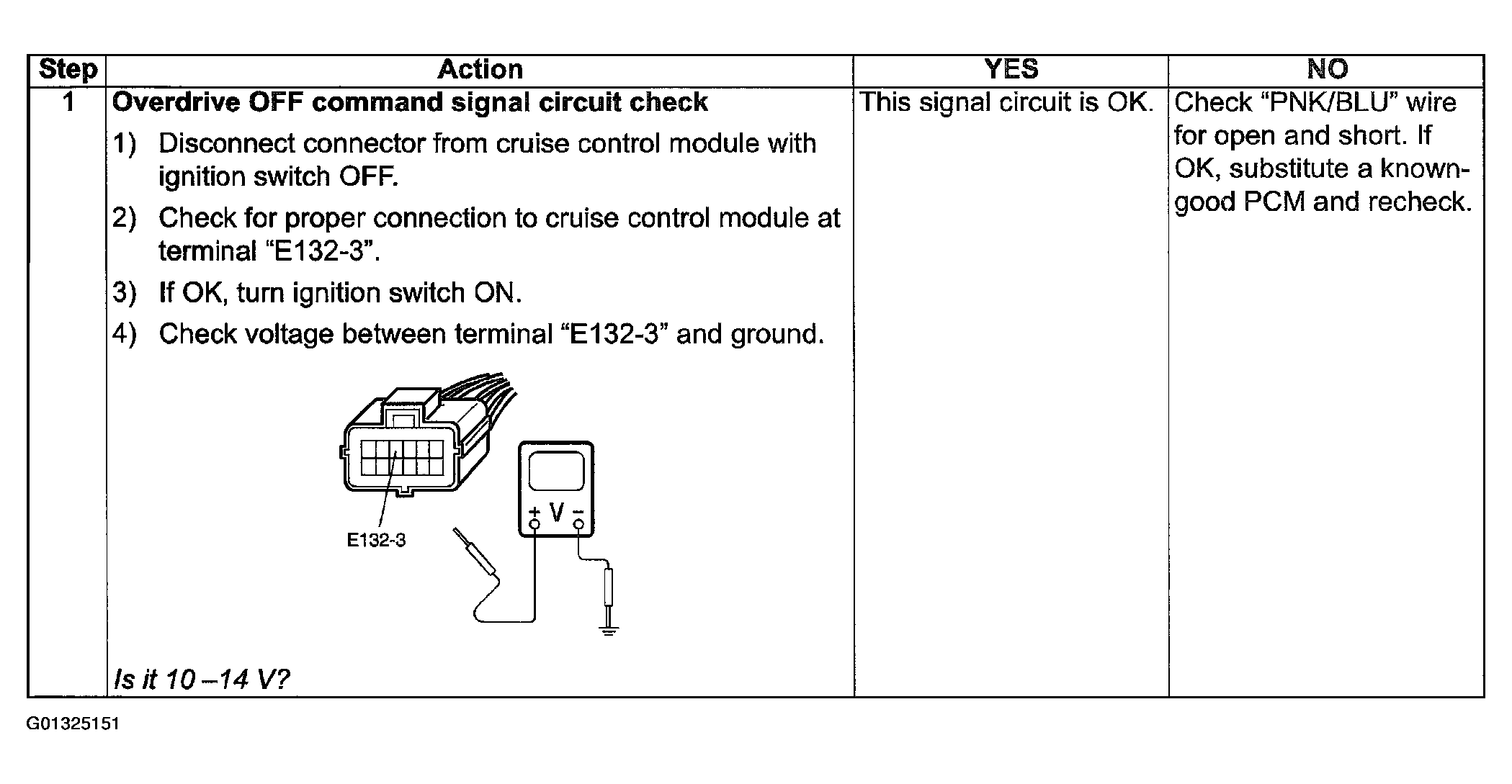

Fig 1: Overdrive and TCC OFF Command Signal Circuit Check Chart
G01325151Courtesy of SUZUKI OF AMERICA CORP.
