Cruise Control System Symptom Diagnosis

Perform troubleshooting for each problem symptom, checking circuits involved in each symptom in the number order given below.

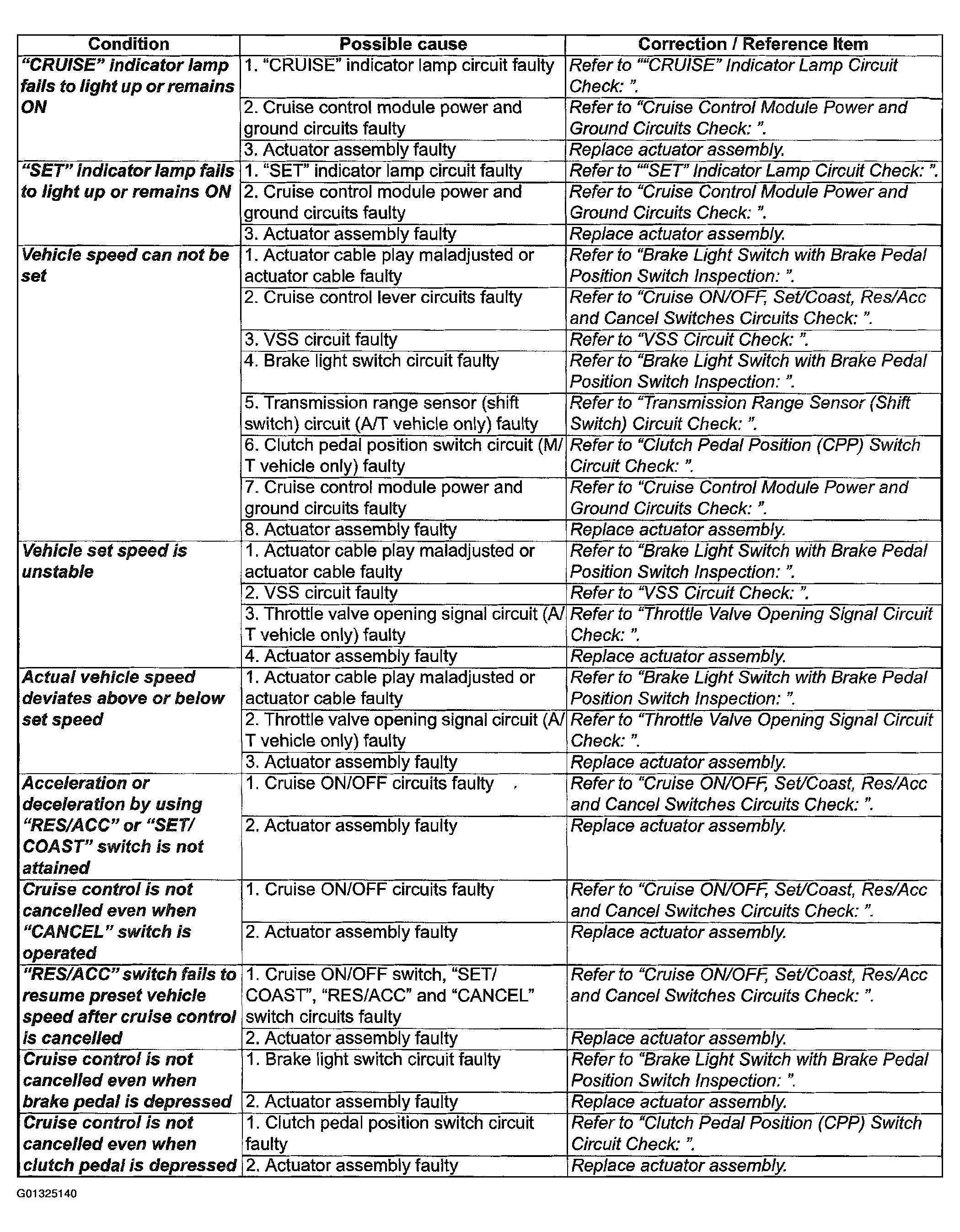

Fig 1: Cruise Control System Symptom Diagnosis Table (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

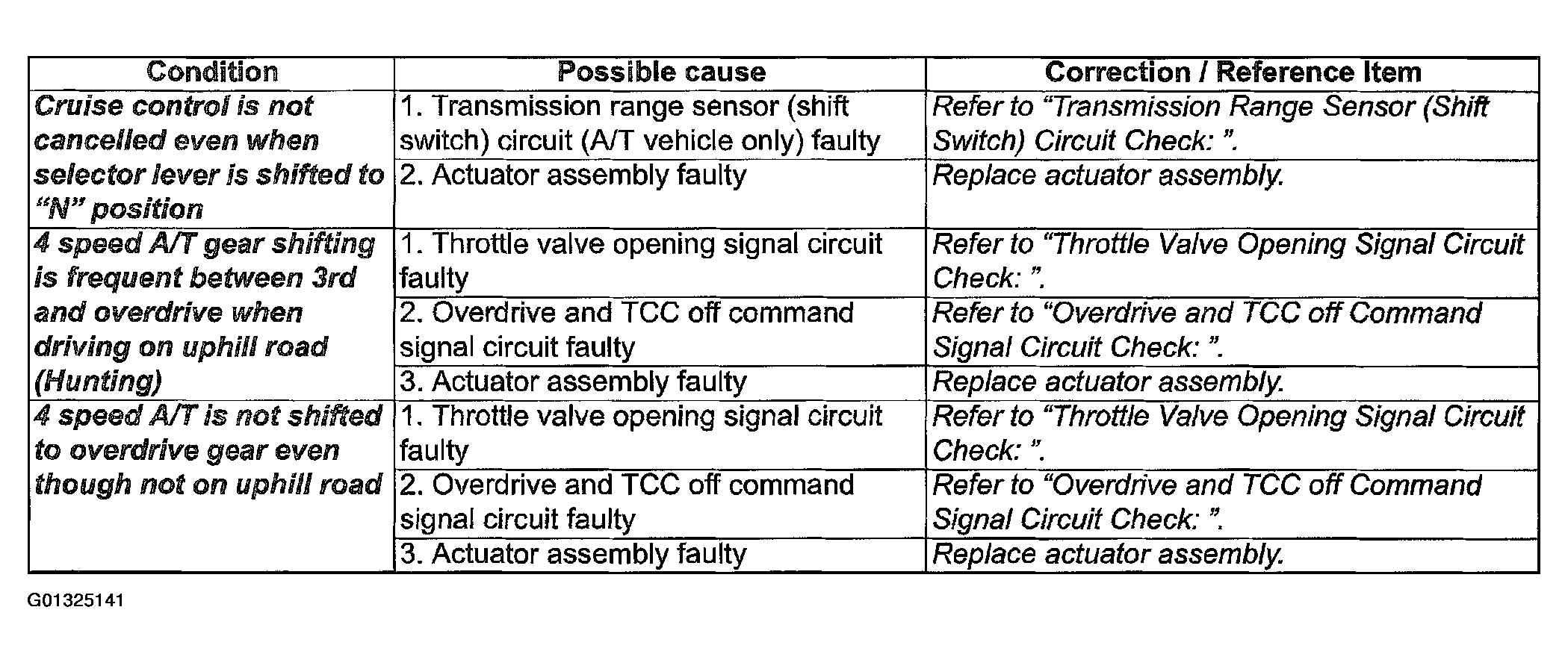

Fig 2: Cruise Control System Symptom Diagnosis Table (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
