Transmission Shift Control Lever Removal and Installation: Removal

1. Remove covers (1) from center console boxes.
2. Remove rear center console box upper cover (2).
3. Remove 6 screws then take off rear center console box and front center console box.
   Fig 1: Removing Rear & Front Center Console Box

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove console box bracket (2) and boot cover (1).
5. Lift up boot No. 3 (3) and boot No. 2 (5).
6. Remove boot clamp and then lift up boot No. 1 (4) from transmission shift lever case (7).
7. With gear shift control case cover (8) pushed down with fingers, turn it to counter clockwise and take out shift control lever (6).

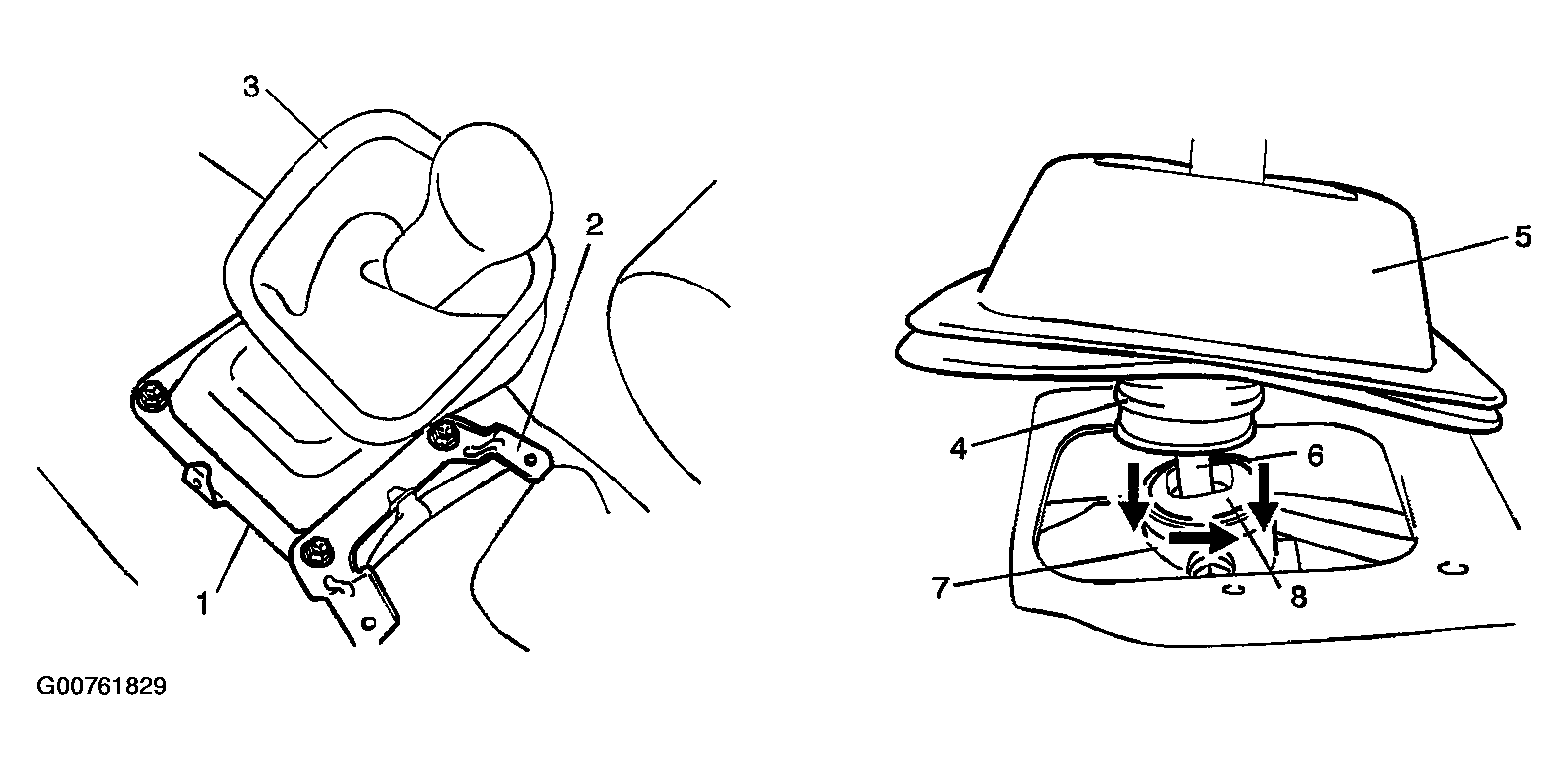

Fig 2: Removing Shift Control Lever

Courtesy of SUZUKI OF AMERICA CORP.
