Manual Transmission Case Components

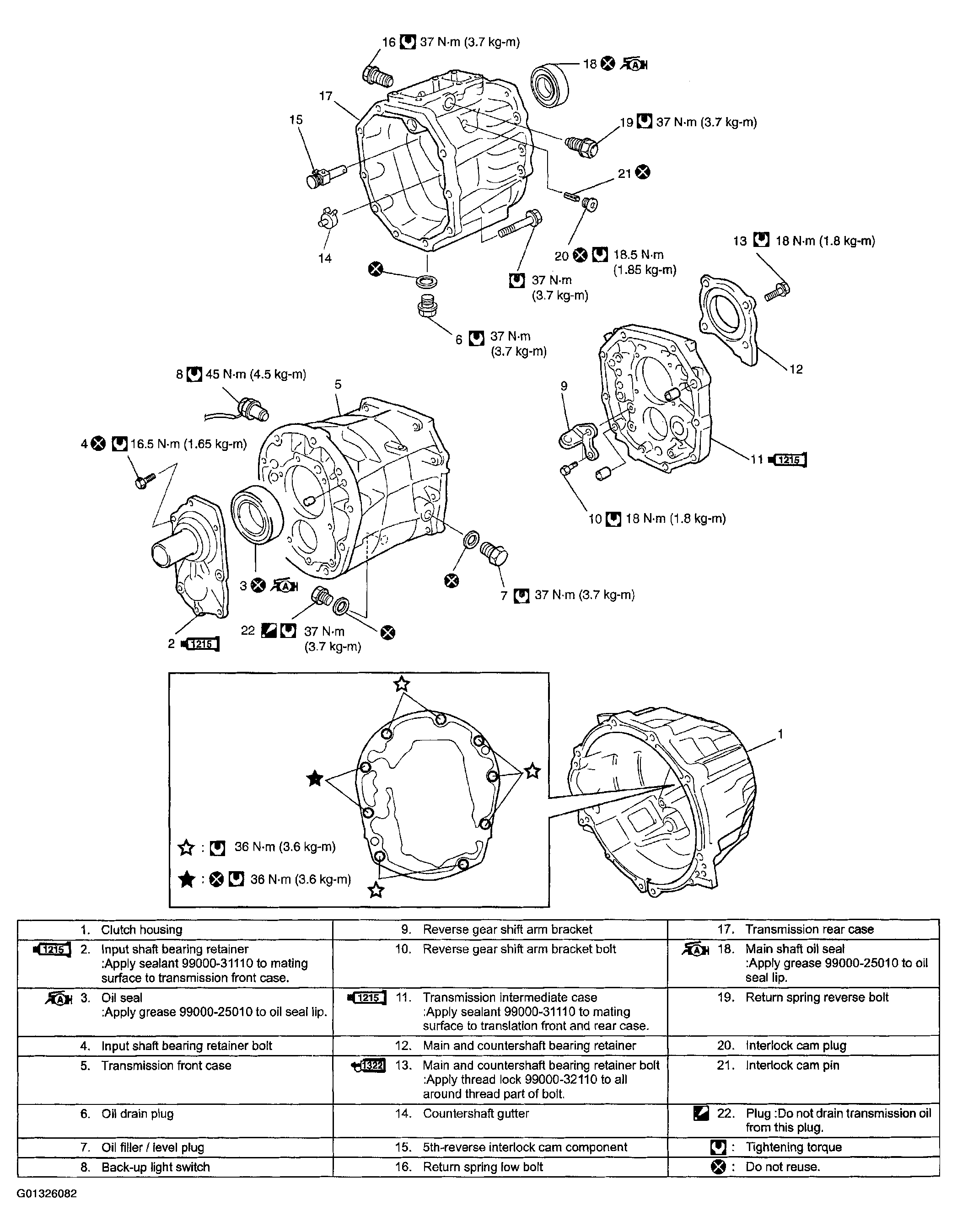

Fig 1: Exploded View Of Manual Transmission Case Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
