Service Manual Update For Seat Heater Inspection (TS 06 03143)

Publication date: 2003-03-14
Reference number: TS 06 03143

SERVICE MANUAL UPDATE FOR SEAT HEATER INSPECTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 06 03143, Date of Issue: March 14, 2003

SUZUKI:	2003 GRAND VITARA, GRAND VITARA XL-7
SECTION:	Body/Body Electrical

CONDITION:

Seat heater inspection table incorrect in service manual.

CAUSE:

N/A

CORRECTION:

Update service manual with updated information in this service bulletin.

Affected Service Manuals

Name of Manual	Part Number	Corresponding Page
2003 MY GRAND VITARA /XL-7 SERVICE MANUAL	99500-52D20-33E	9G-2, 9G-3

NOTE: This update will be reflected in future printings of the service manuals and CDROM's. If the reprint date shown at the third cover page of the manual back cover.

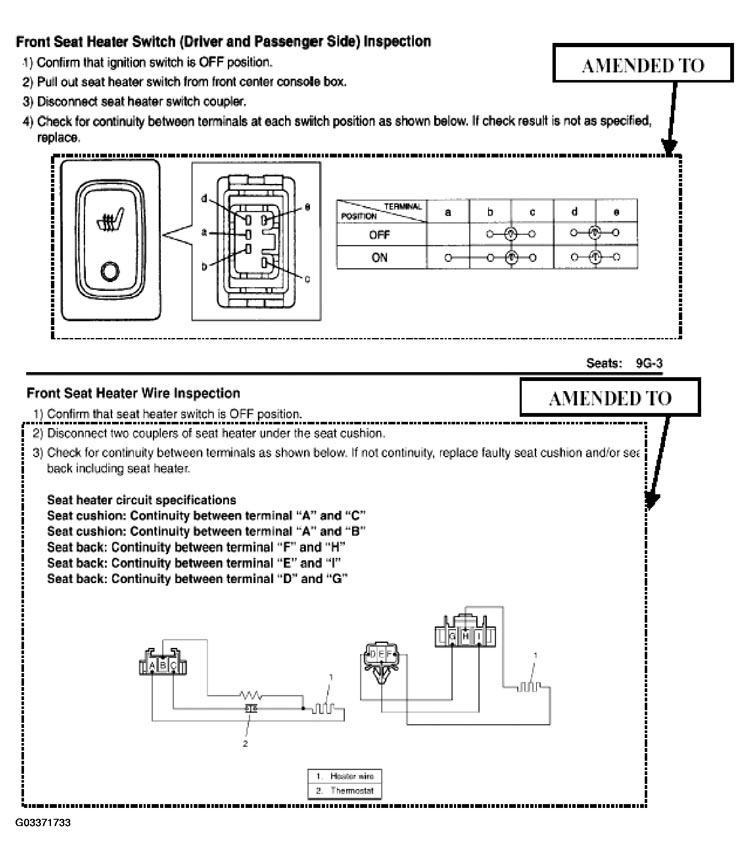

Fig 1: Seat Heater Inspection
