Safety Recall Campaign: Em (TS 11 12083)
Publication date: 2003-12-08Reference number: TS 11 12083
SAFETY RECALL CAMPAIGN: EM
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 11 12083, Date of Issue:
December 08, 2003
| SUZUKI: | 1999-2003 AND SOME 2004 GRAND VITARA (SQ 625) AND GRAND VITARA XL-7 (JA 627) |
| SECTION: | Engine |
CONDITION:
Accelerator cable may stick during vehicle operation.
CAUSE:
It has been found that the plastic casing cap may crack at the bulk head on some accelerator cables. This can cause the inner accelerator cable to become frayed.
CORRECTION:
Replace accelerator cable assemblies on all affected vehicles.
AFFECTED VIN RANGE
| AFFECTED VIN RANGE | |||
|---|---|---|---|
| 1999-2004 4WD | JS3TD62V_X4100002 | ~ | JS3TD62V_44100886 |
| 1999-2004 2WD | JS3TE62V_X4100010 | ~ | JS3TE62V_44100186 |
| 2001-2004 4WD | JS3TX92V_14100010 | ~ | JS3TX92V_44101673 |
| 2001-2004 2WD | JS3TY92V_14100009 | ~ | JS3TY92V_44100703 |
PARTS INFORMATION
PARTS INFORMATION
| Part # | Part Name | Model(s) | Contents |
|---|---|---|---|
| 15910-67DV0 | Cable Assy., Accel. | Grand Vitara, Grand Vitara XL-7 | 1 each |
PROCEDURE:

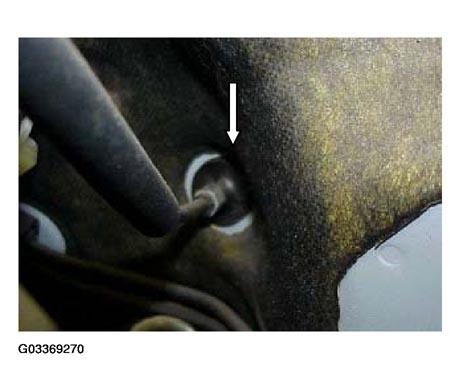

- Accelerator cable casing cap at driver side bulkhead.

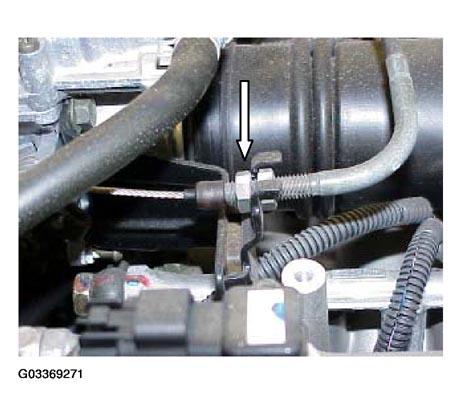

- Loosen accelerator cable jamb nuts and remove cable barrel from throttle crank.

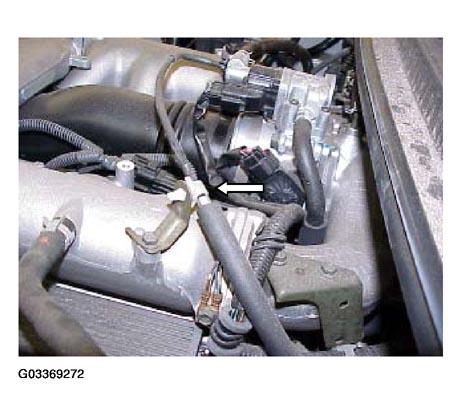

- Detach cable from plastic retaining clip on support brace.

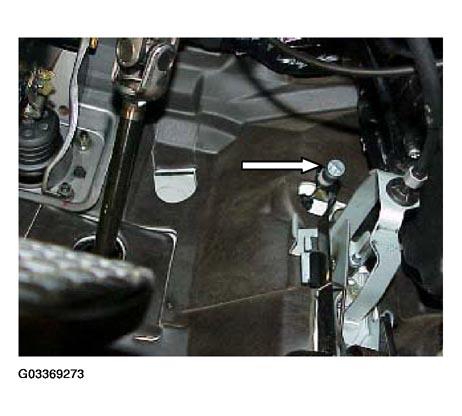

- Disconnect cable from accelerator pedal assembly and push cable assembly through bulkhead.
- Install new cable in reverse order.
- Adjust cable with engine at operating temperature using the procedure outlined in the appropriate service manual.

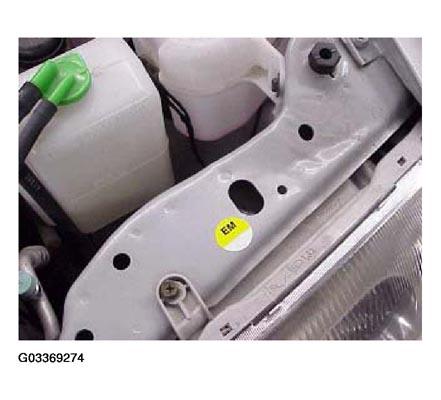

- Install the EM recall sticker to the radiator core support above the left headlamp.
