Clutch/Brake Functions of Automatic Transmission

WARNING: This page is about a different variant/trim than selected.

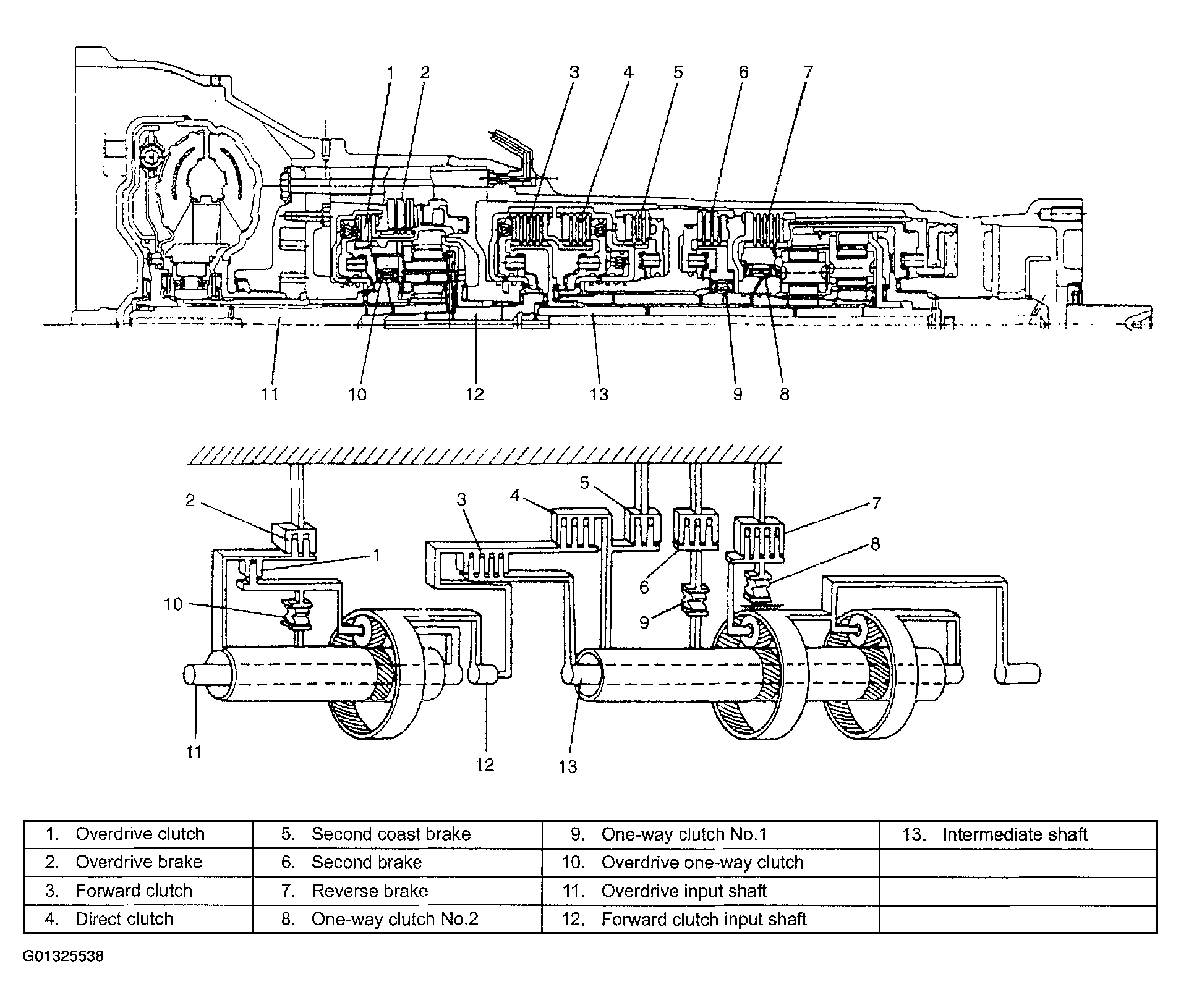

Fig 1: Identifying Clutch/Brake Functions Of Automatic Transmission (1 Of 2)
G01325538Courtesy of SUZUKI OF AMERICA CORP.

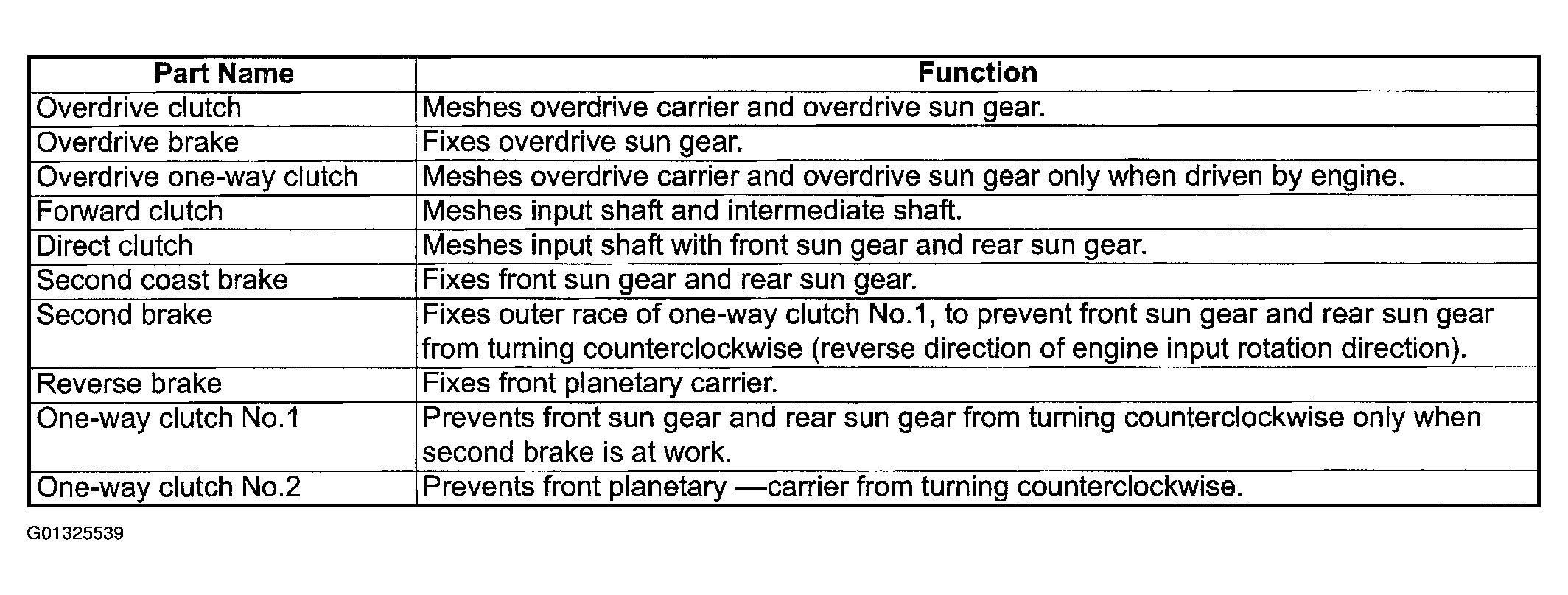

Fig 2: Identifying Clutch/Brake Functions Of Automatic Transmission (2 Of 2)
G01325539Courtesy of SUZUKI OF AMERICA CORP.
