Idle Air Control (IAC) Valve Removal and Installation: Installation

Install new O-ring to throttle body.
Install IAC valve to throttle body.
Tighten IAC valve screws to specified torque.
Tightening torque
1. IAC valve screw (a): 3.5 N.m (0.35 kg-m, 2.5 lb-ft)

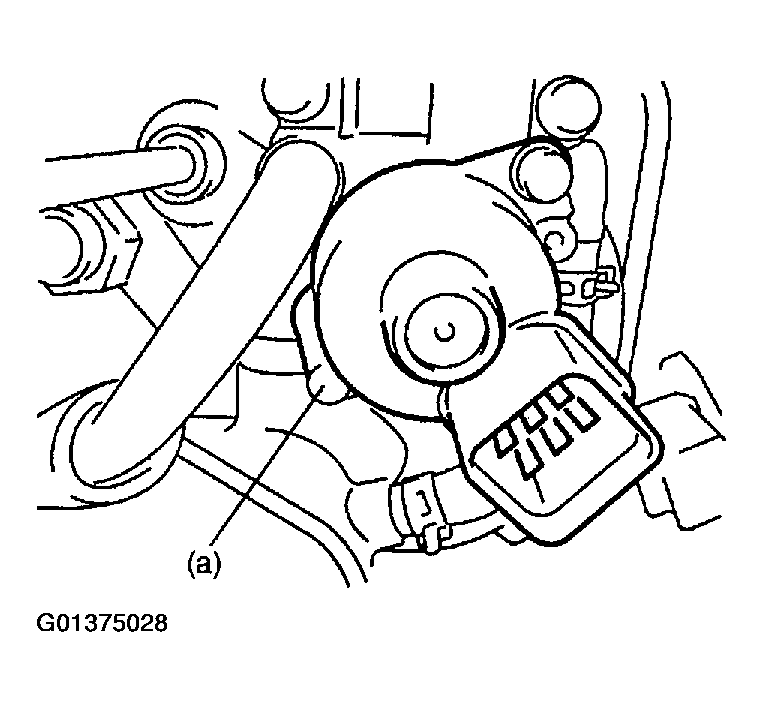

Fig 1: Installing IAC Valve
Courtesy of SUZUKI OF AMERICA CORP.
Connect IAC valve connector securely.
Connect negative cable (-) to battery.
