EVAP Canister Check
WARNING:
DO NOT SUCK nozzles on EVAP canister. Fuel vapor inside EVAP canister is harmful.
- Disconnect vacuum hoses from EVAP canister.

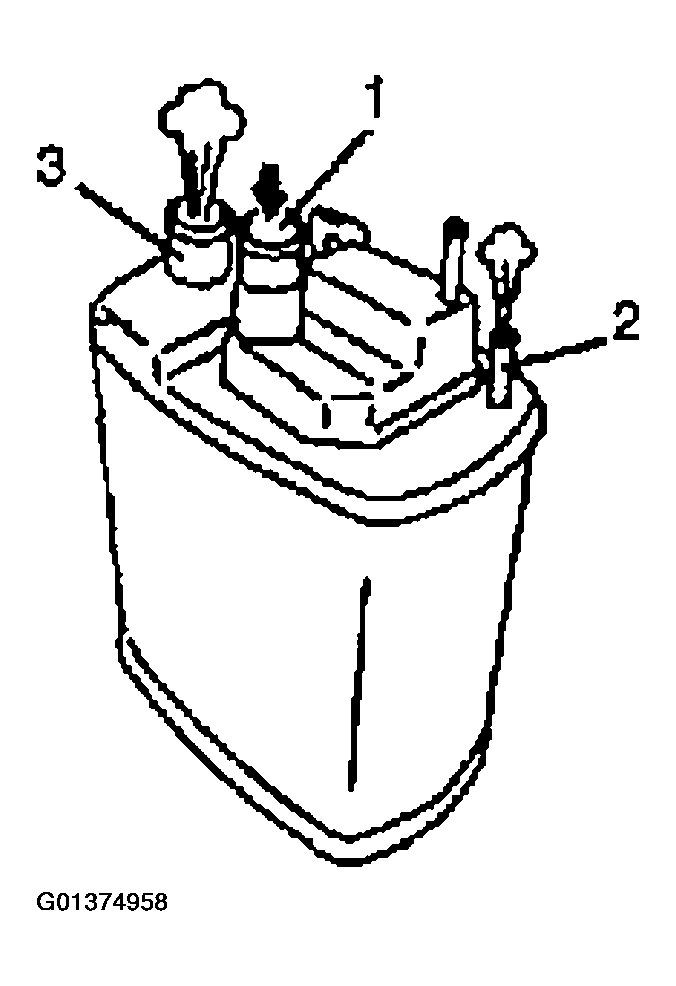

- When air is blown into tank pipe (1), there should be no restriction of flow through purge pipe (2) and air pipe (3).
- If operation differs from above description, EVAP canister must be replaced.
- Connect hoses to canister.
