Power Door Mirror Switch Inspection

  1. Remove mirror switch from instrument panel.
  2. Check continuity at each switch position by using a circuit tester. If any continuity is not obtained, replace mirror switch.

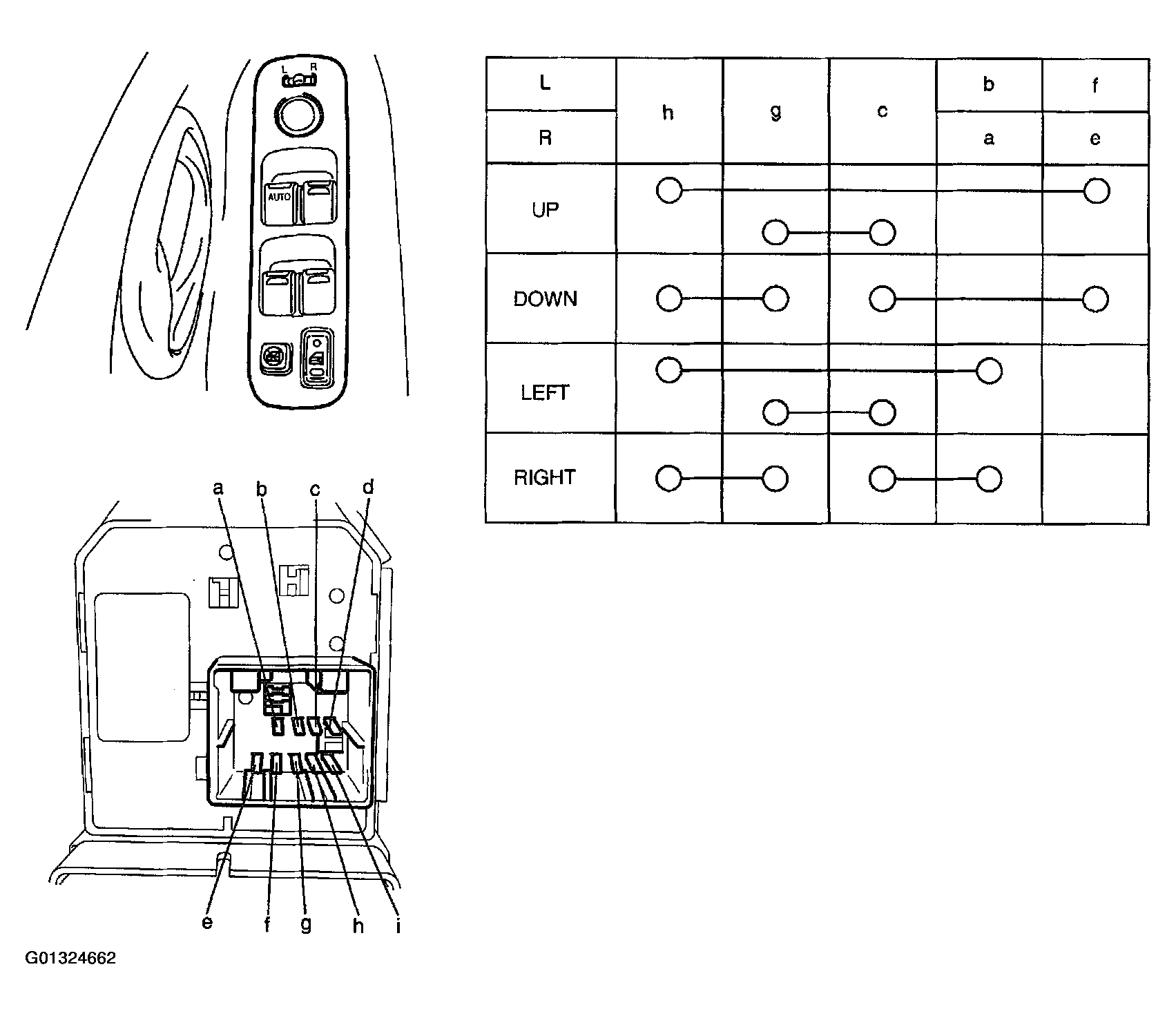

    Fig 1: Checking Power Door Mirror Switch
    G01324662Courtesy of SUZUKI OF AMERICA CORP.
