Repair and Diagnosis
>>
Body & Frame
>>
Power Door Locks & Remote Keyless Entry
>>
Repair Instructions
>>
Keyless Entry Receiver And Its Circuit Inspection
>>
Keyless Entry Receiver Circuit Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Entry Receiver Circuit Check

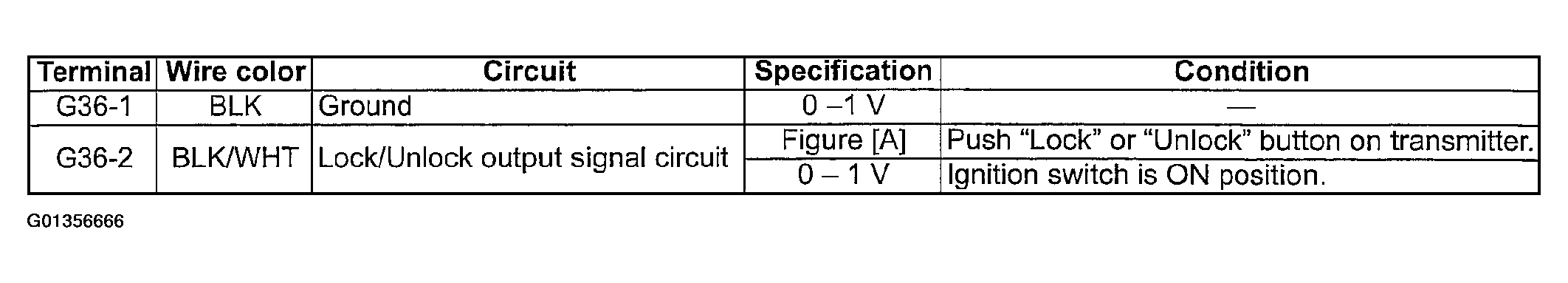

Fig 1: Keyless Entry Receiver Circuit Check Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

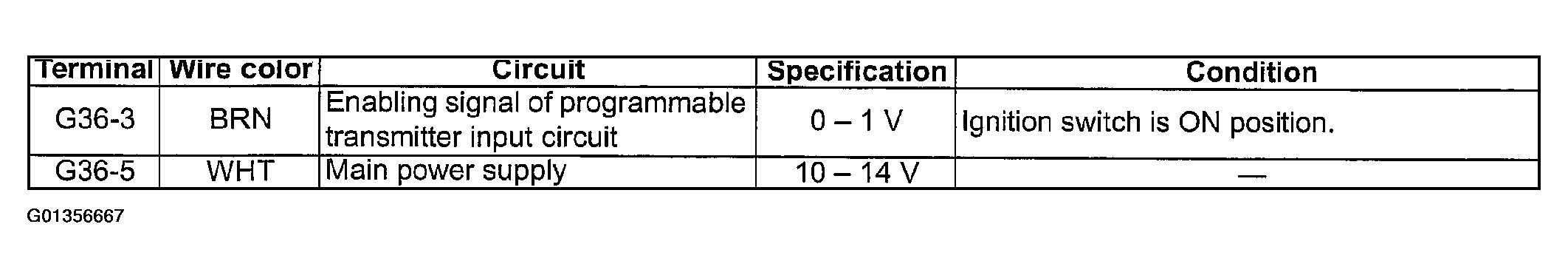

Fig 2: Keyless Entry Receiver Circuit Check Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
