Keyless Entry System Symptom Diagnosis
NOTE:
Confirm that power door lock system is in good condition before referring to the following possible causes.

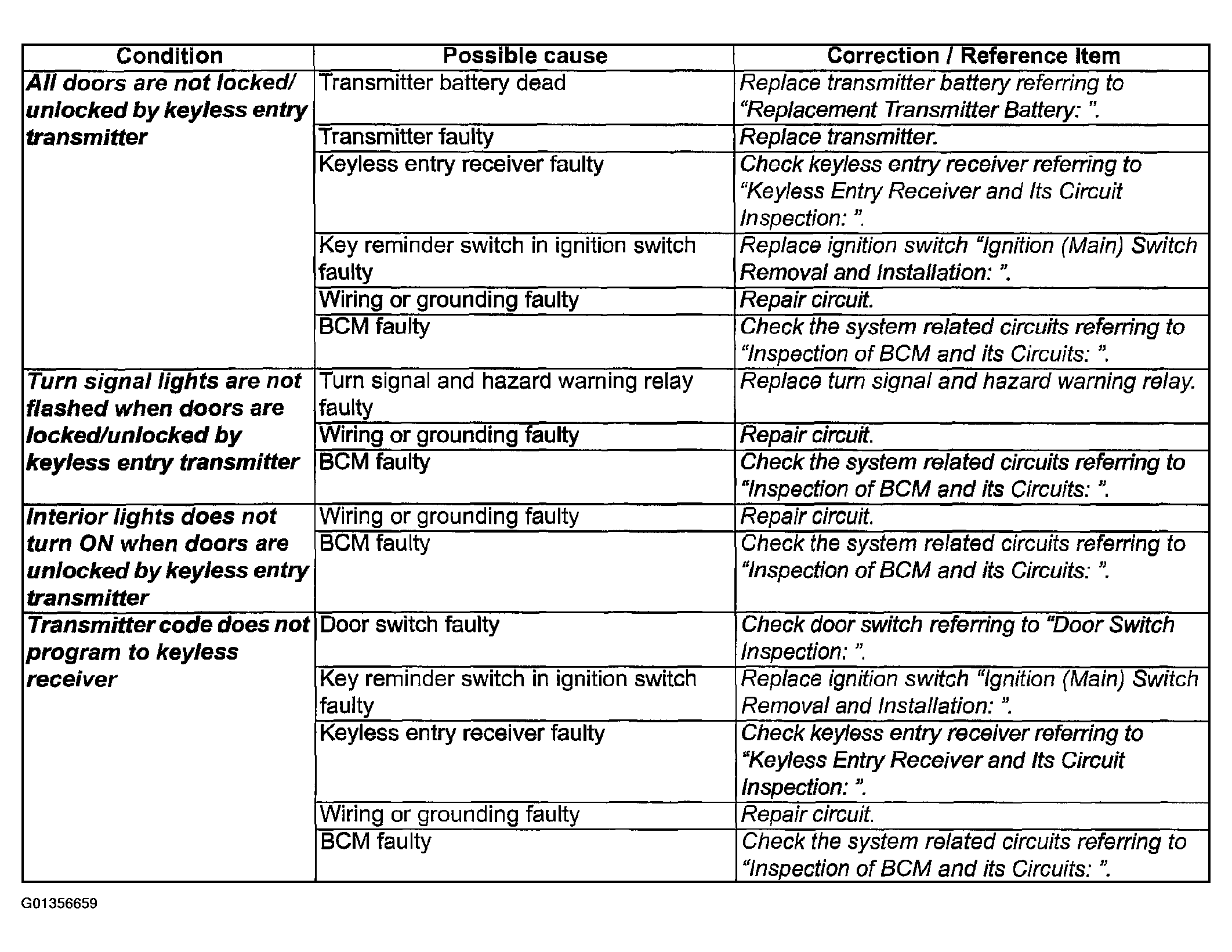

Fig 1: Keyless Entry System Symptom Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
