BCM Power Circuit and Ground Circuit Check: Troubleshooting

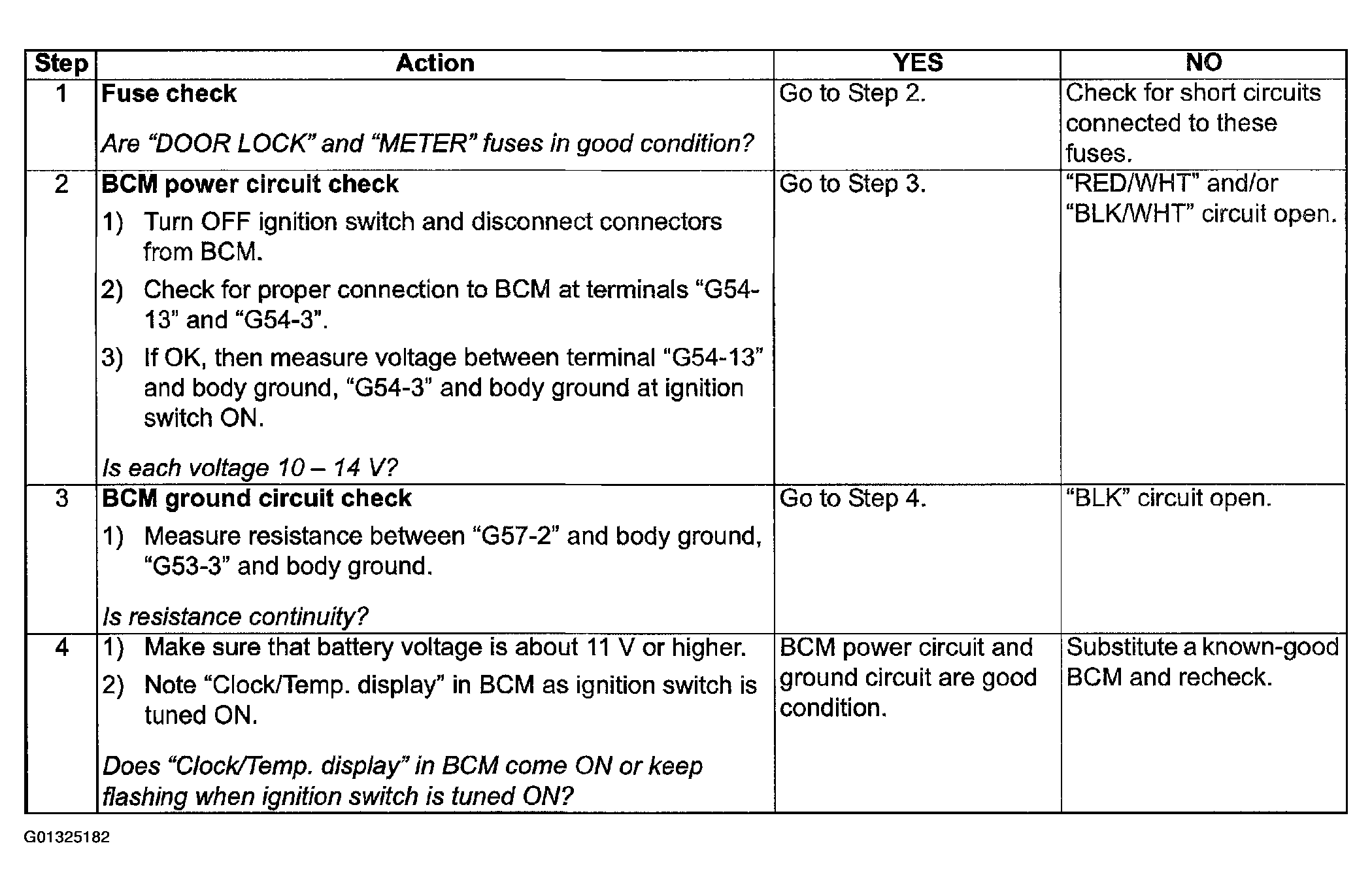

Fig 1: BCM Power Circuit and Ground Circuit Check Troubleshooting Chart
G01325182Courtesy of SUZUKI OF AMERICA CORP.
