Throttle Valve Opening Signal Circuit Check

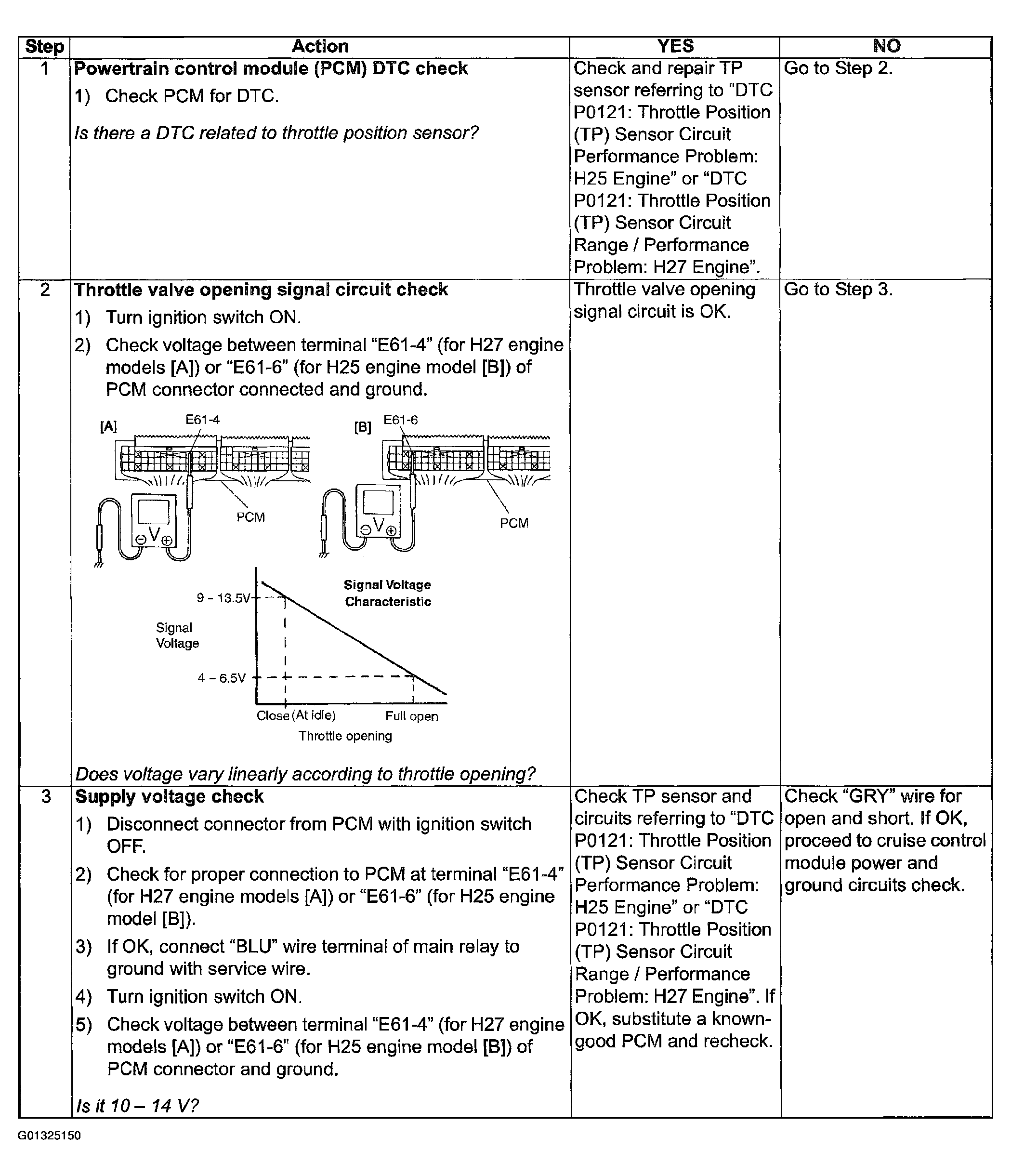

Fig 1: Throttle Valve Opening Signal Circuit Check Chart
G01325150Courtesy of SUZUKI OF AMERICA CORP.
