Resistance Check

Disconnect cruise control module connector from cruise control module with ignition switch OFF.
CAUTION:
- Never touch terminals of cruise control module itself.
- Be sure to turn OFF ignition switch for this check.
- Resistance in the following table represents that when parts temperature is 20 °C (68 °F).
Fig 1: Checking Resistance of Control Module Connector
Courtesy of SUZUKI OF AMERICA CORP.
Check resistance between each pair of terminals of disconnected connectors as shown in the following table.

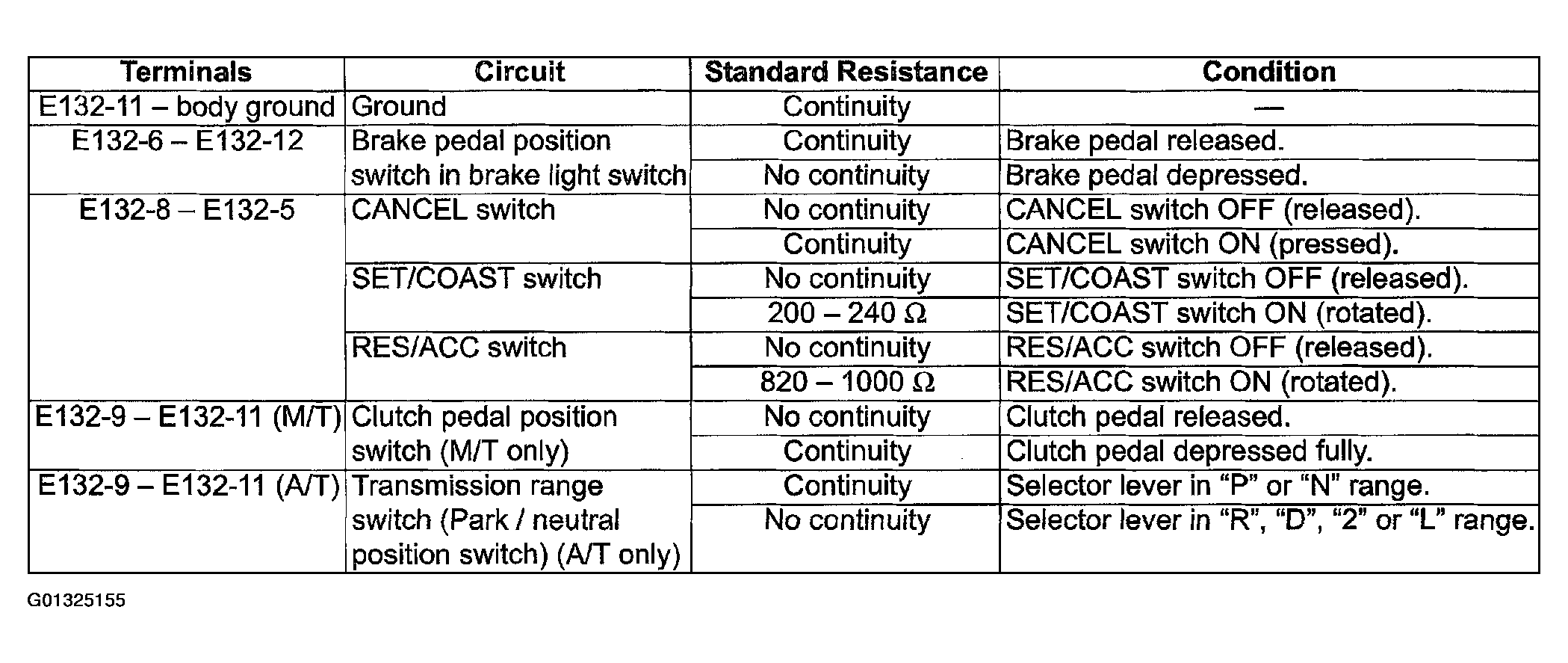

Fig 2: Control Module Connector Resistance Check Table
Courtesy of SUZUKI OF AMERICA CORP.
