Blower Motor

Blower Motor Inspection

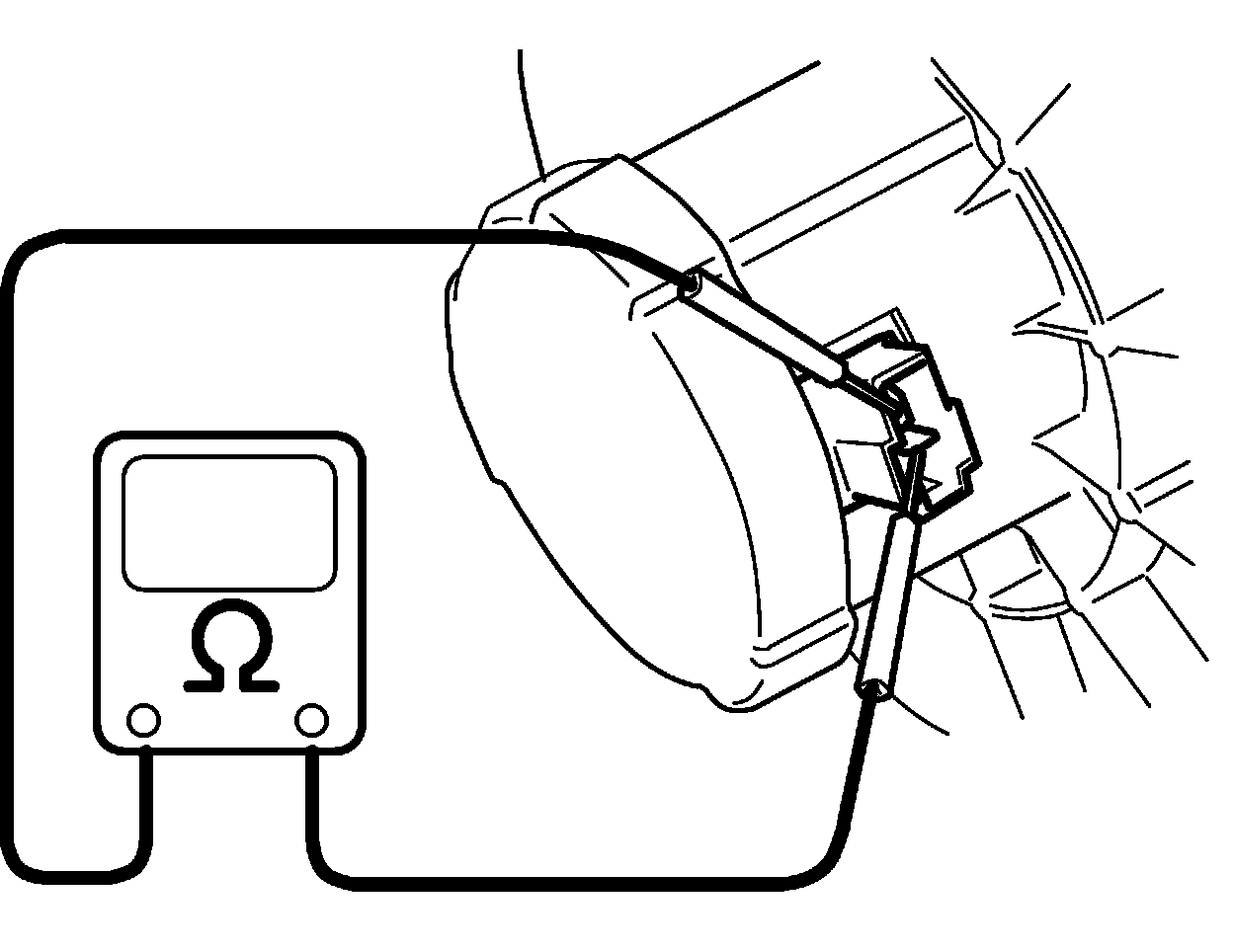

- Check continuity between terminal to terminal as shown in the figure.
If check results are continuity, proceed to next operation check. If not, replace.




- Connect battery to blower motor as shown, then check if the blower motor operates smoothly.

Reference specified consumption current for blower motor: 18 - 24 A at 12 V
