4WD Control System

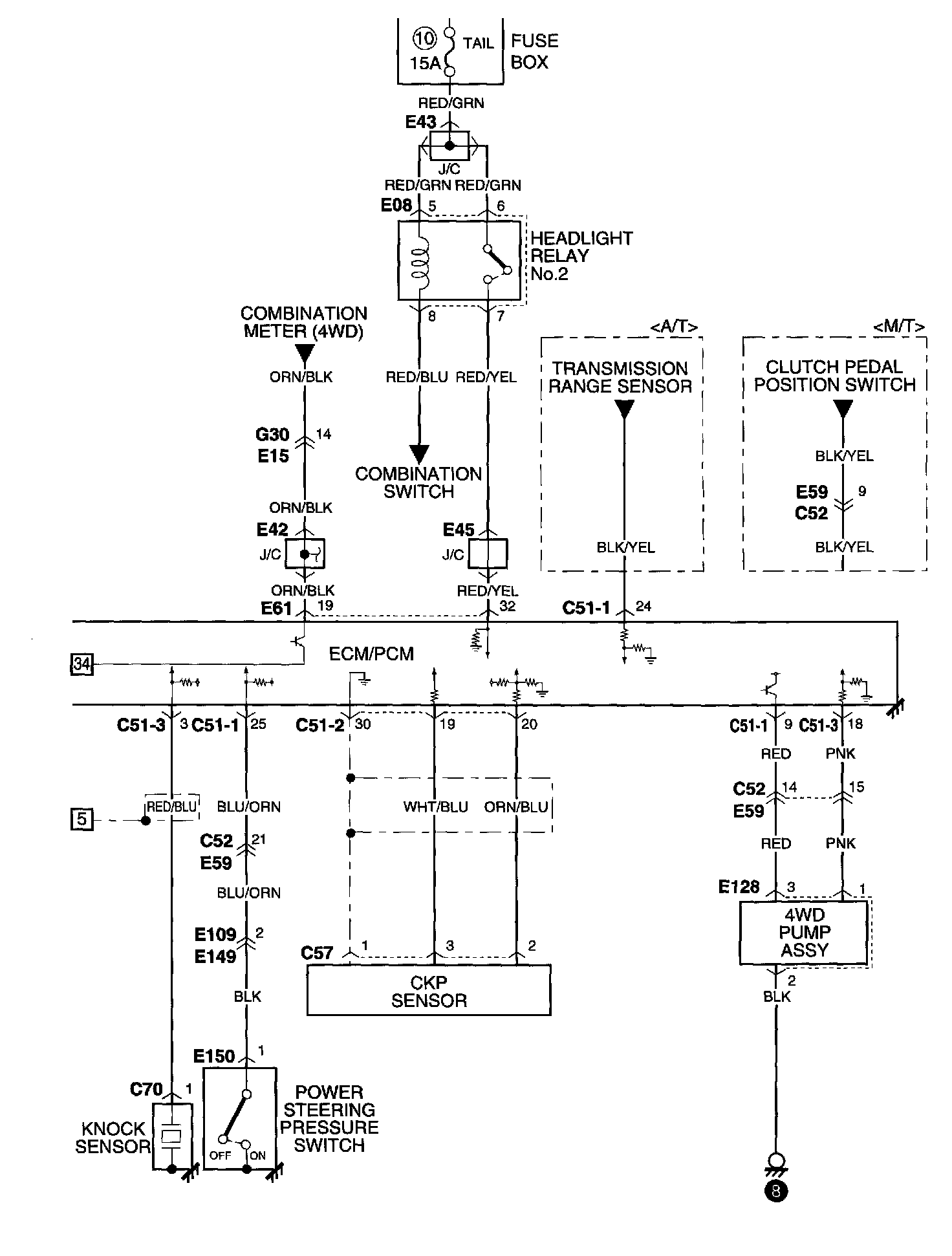

Ignition, Engine, Emission,and 4WD Control System Circuit Diagram Part 1:

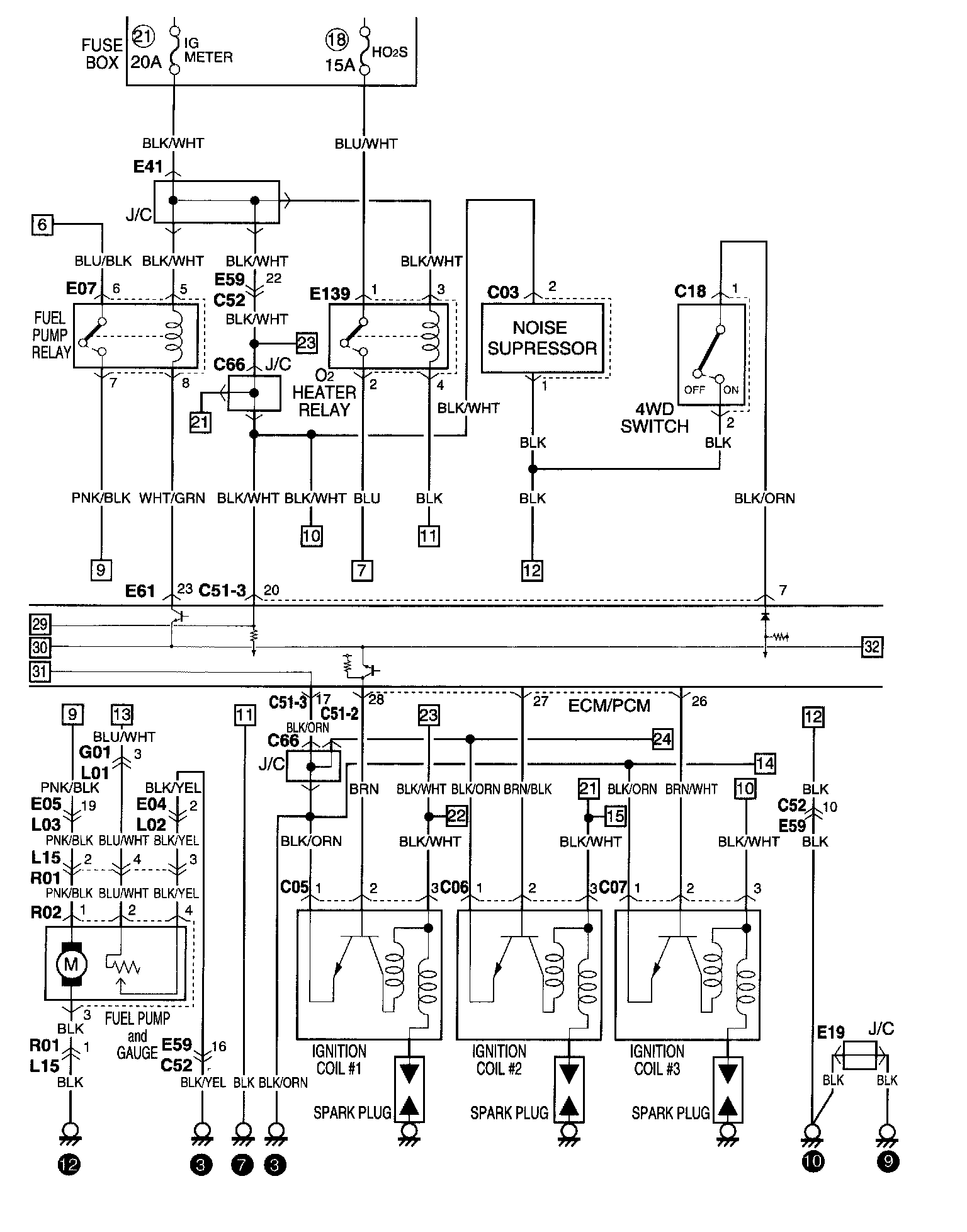

Ignition, Engine, Emission, and 4WD Control System Circuit Diagram Part 2:

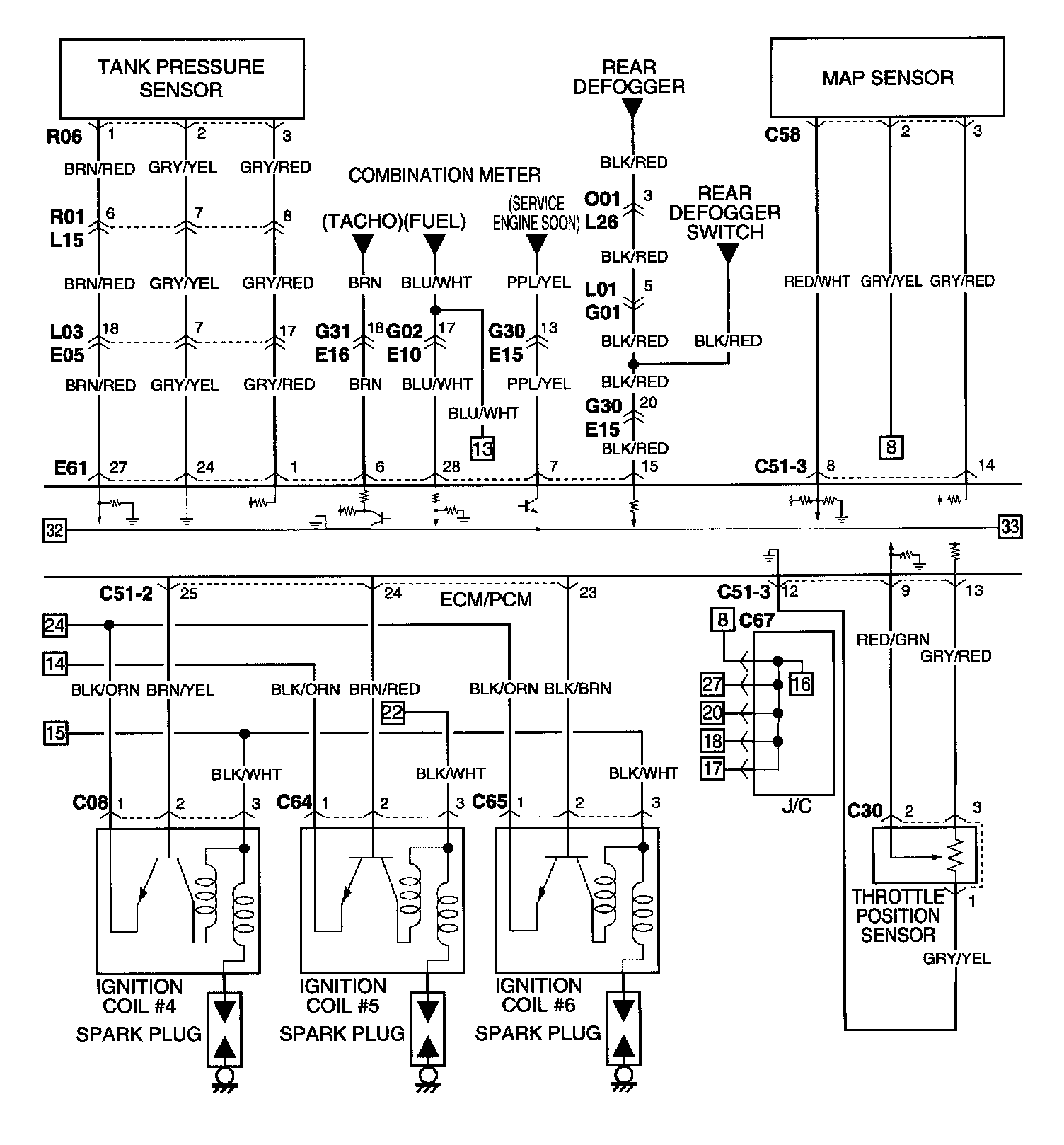

Ignition, Engine, Emission, and 4WD Control System Circuit Diagram Part 3:

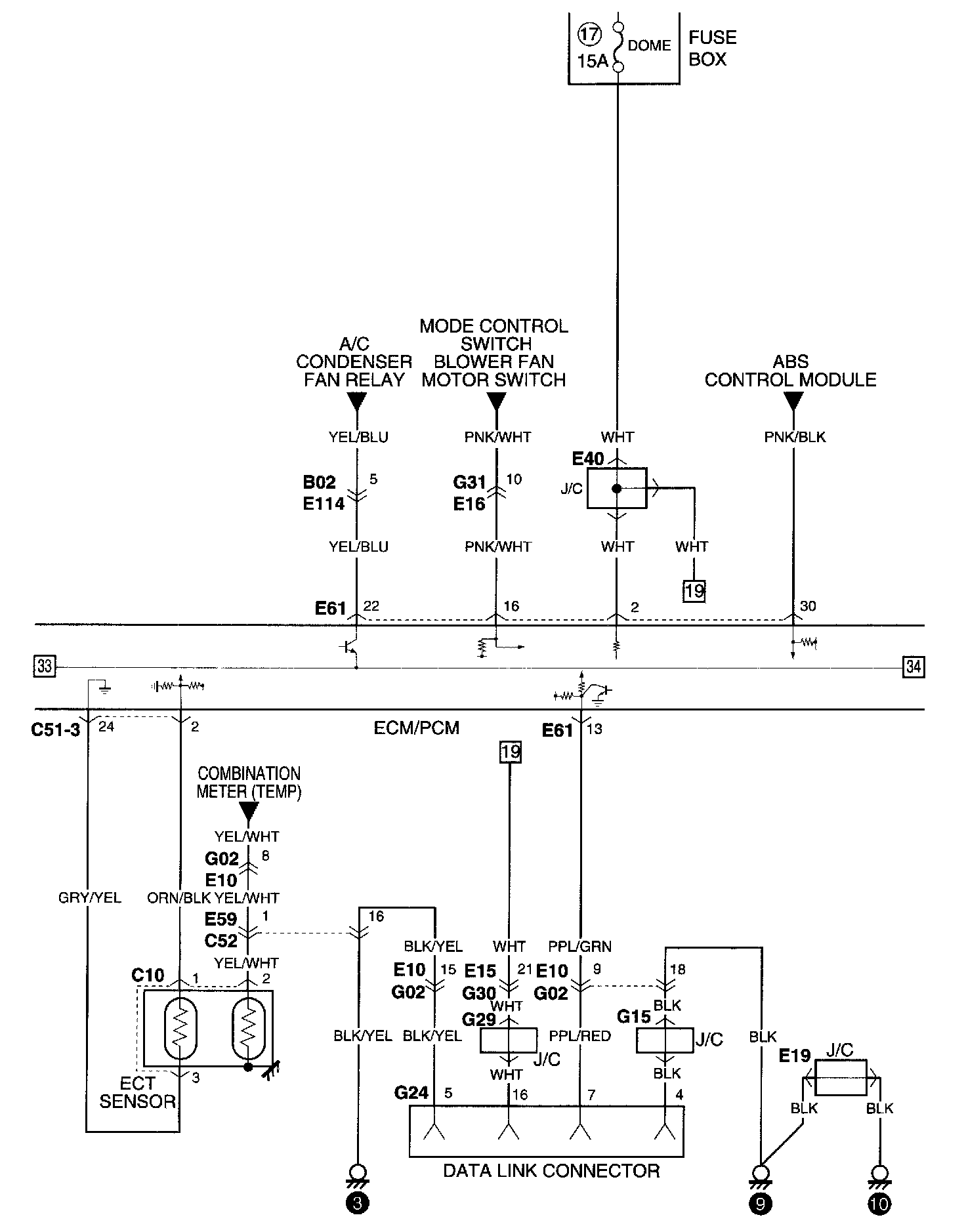

Ignition, Engine, Emission, and 4WD Control System Circuit Diagram Part 4:

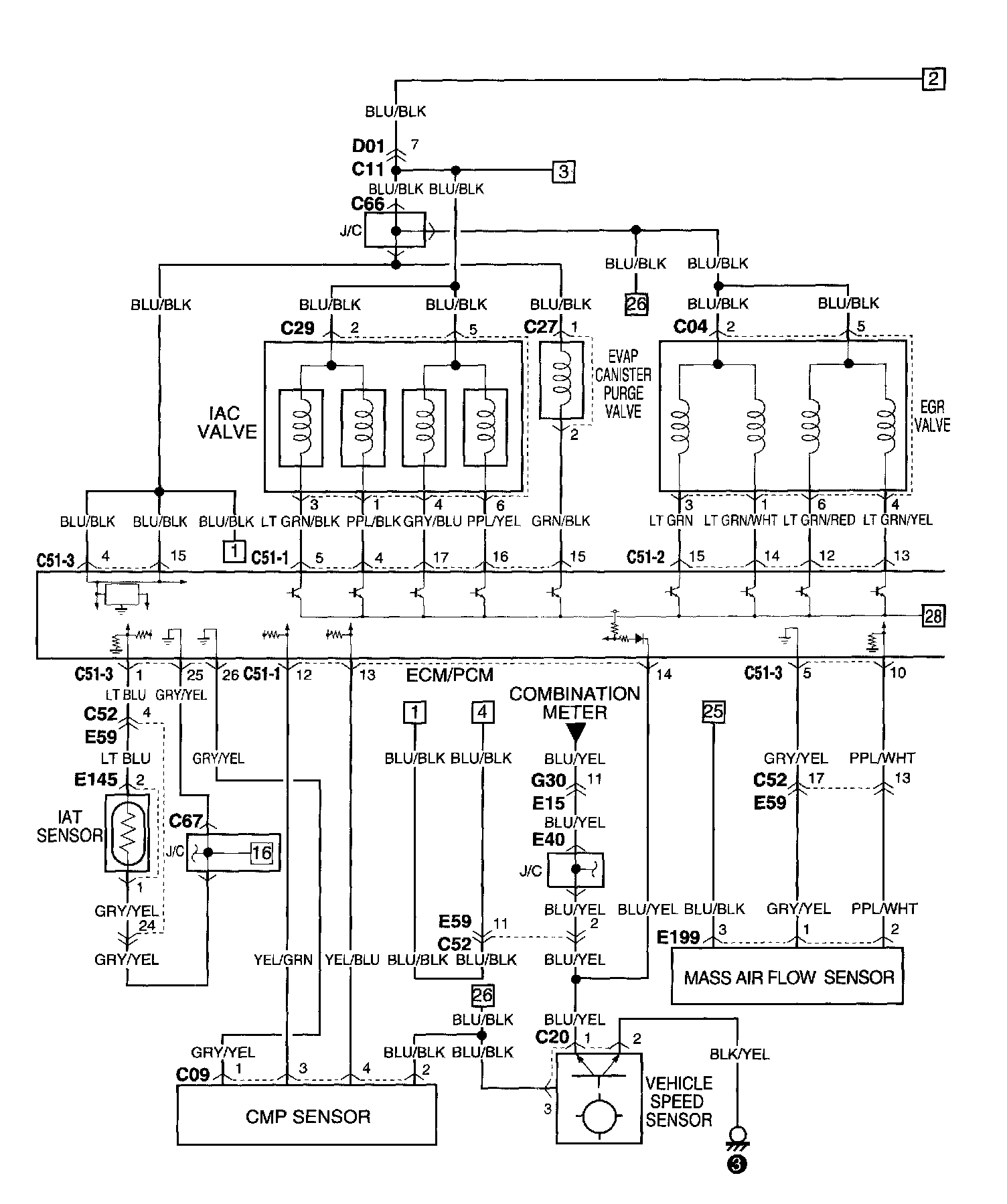

Ignition, Engine, Emission, and 4WD Control System Circuit Diagram Part 5:

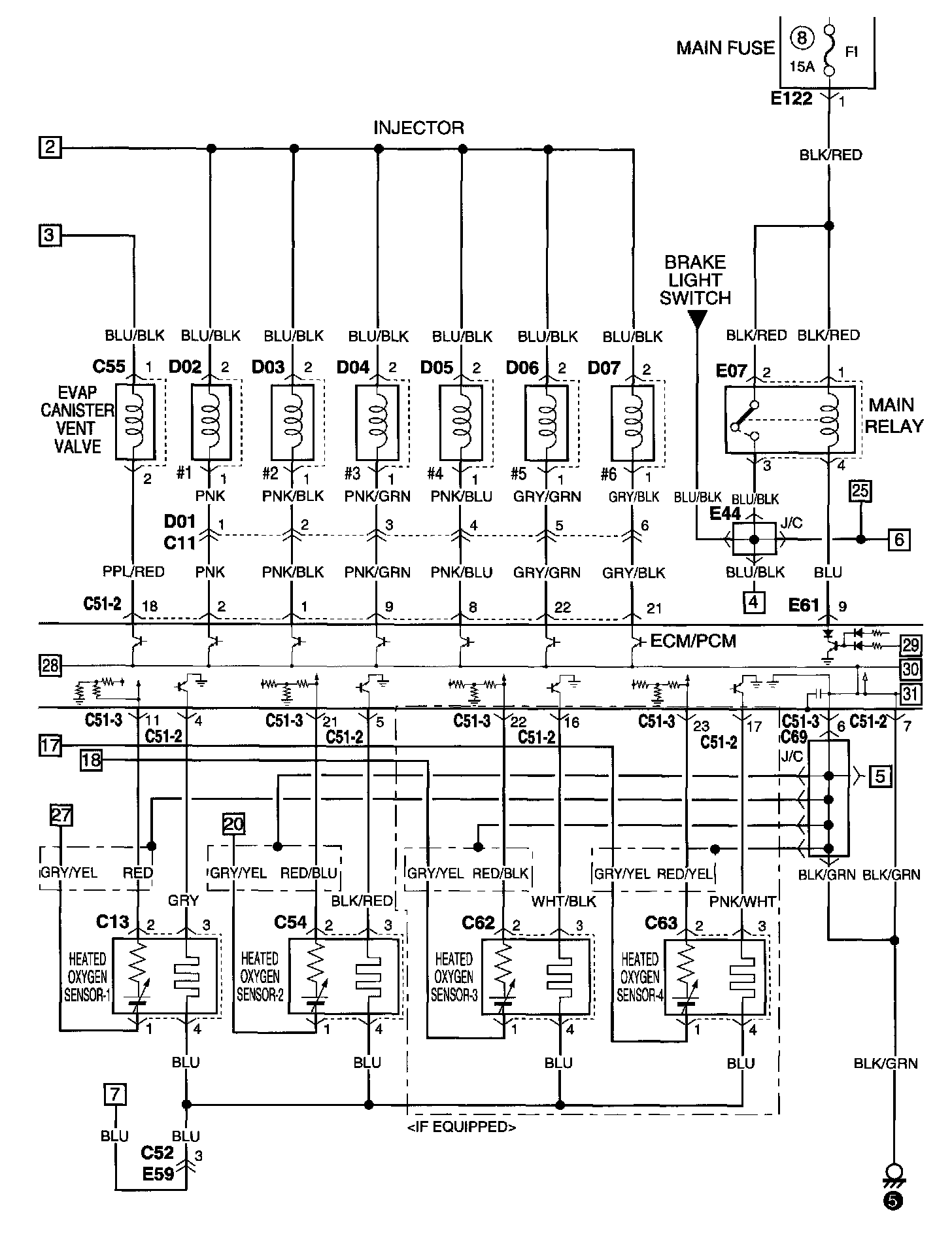

Ignition, Engine, Emission, and 4WD Control System Circuit Diagram Part 6:
