Rear Door Lock Assembly Removal and Installation

REAR DOOR LOCK ASSEMBLY REMOVAL AND INSTALLATION

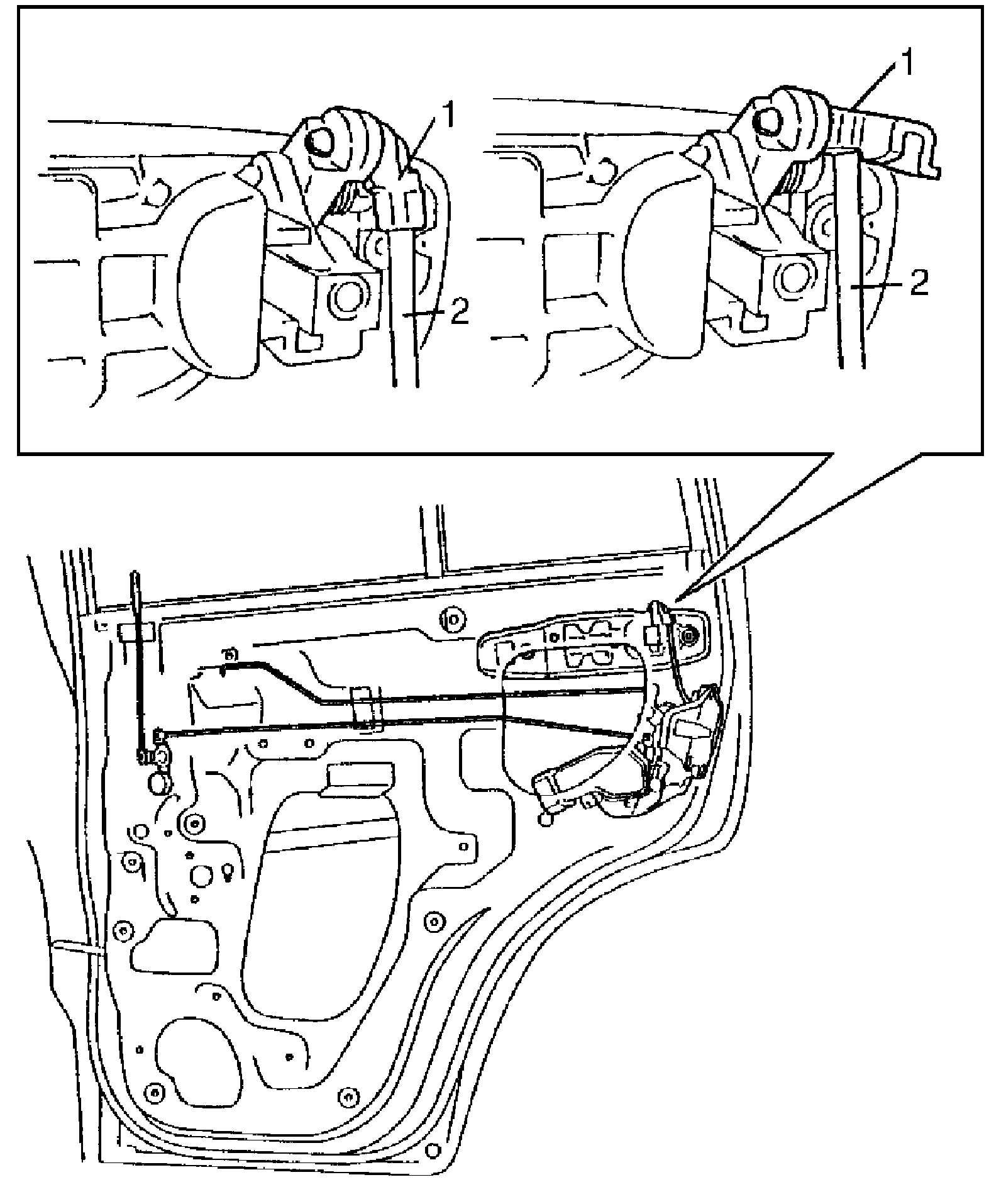

Reference: Rear Door Lock Assembly Components

REMOVAL
1. Remove door trim and door sealing cover referring to Steps 1) to 5) of "Removal" in Rear Door Glass Removal and Installation.




2. Remove door opening control rod (2) and door lock control rod (1).
3. Remove lock assembly.

INSTALLATION
Reverse removal sequence to install rear door lock, noting points mentioned in Front Door Lock Assembly Removal and Installation.
