Checking For Fluid Leakage

FLUID LEAKAGE CHECK

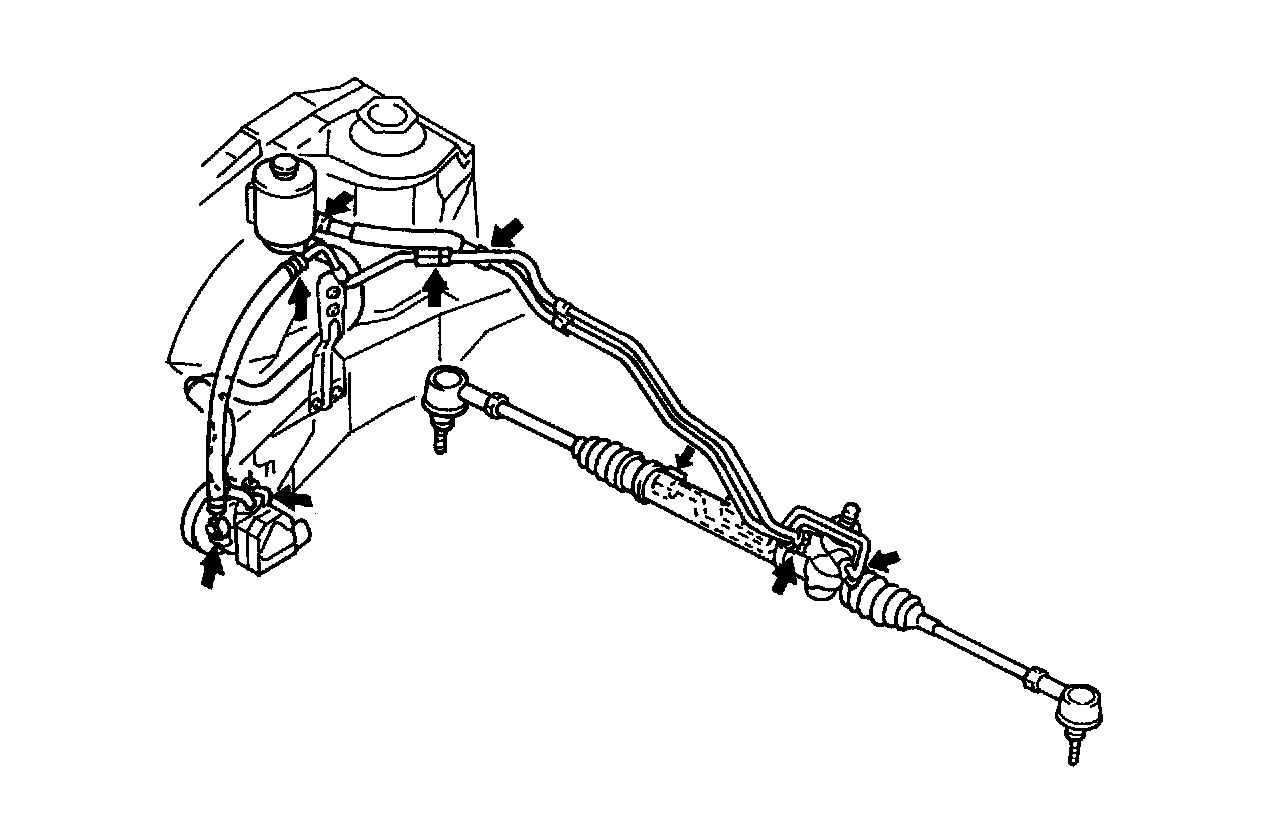

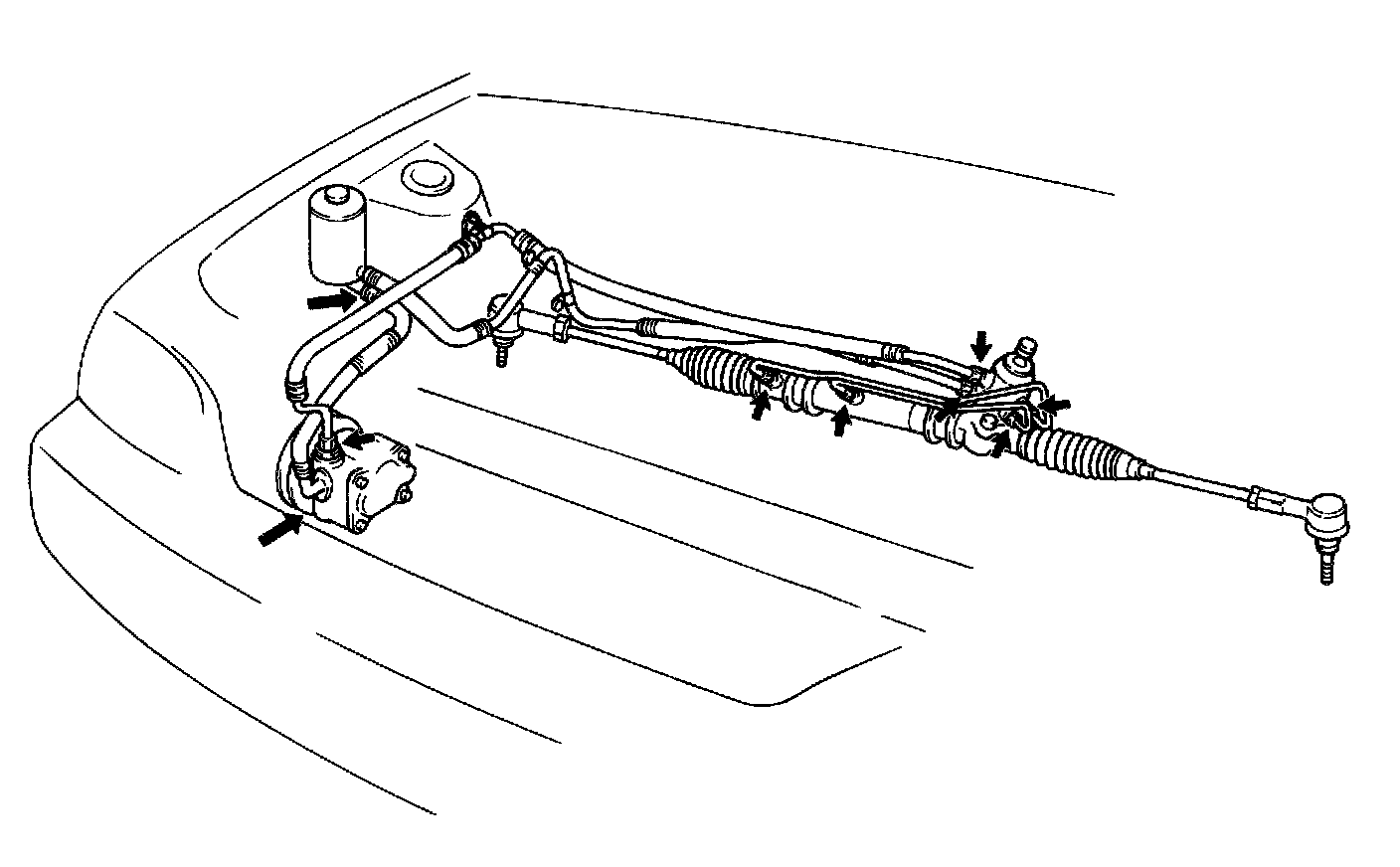

Start engine and turn steering wheel fully to the right and left so that maximum hydraulic pressure is provided. Then visually check near box, P/S Pump and oil tank themselves and each joint of their connecting pipes for leakage.

CAUTION: Never keep steering wheel turned fully for longer than 10 seconds.
