Repair Instructions: Remounting
For remounting, reverse dismounting procedure and use the following tightening torque.
After tightening all fasteners properly, fill hypoid gear oil as specified and check tightening of plugs with specification.

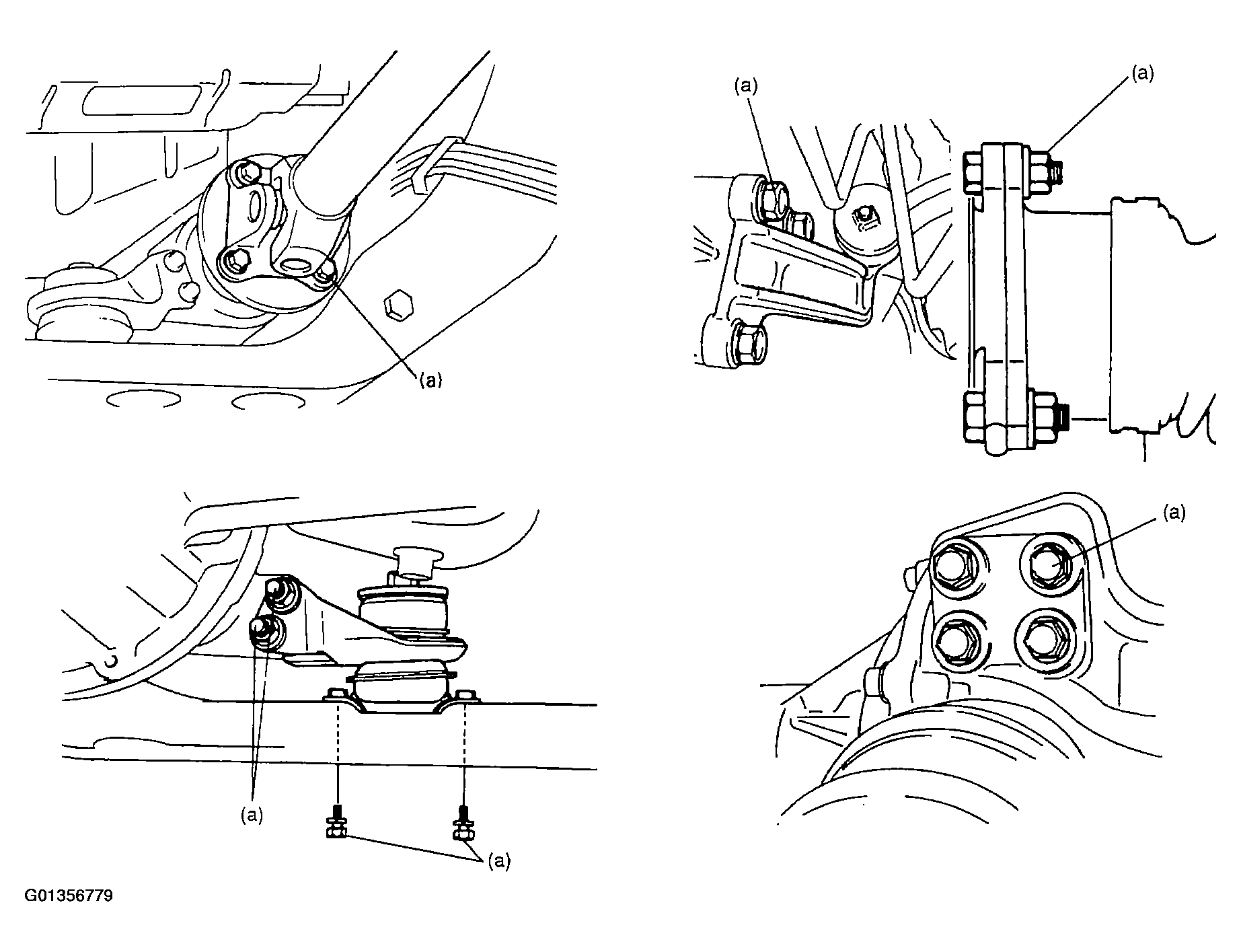

Tightening torque
Front drive shaft flange bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)
Propeller shaft flange bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)
Differential mounting bracket bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)
Rear mounting bracket bolts (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)
