Front Washer Switch

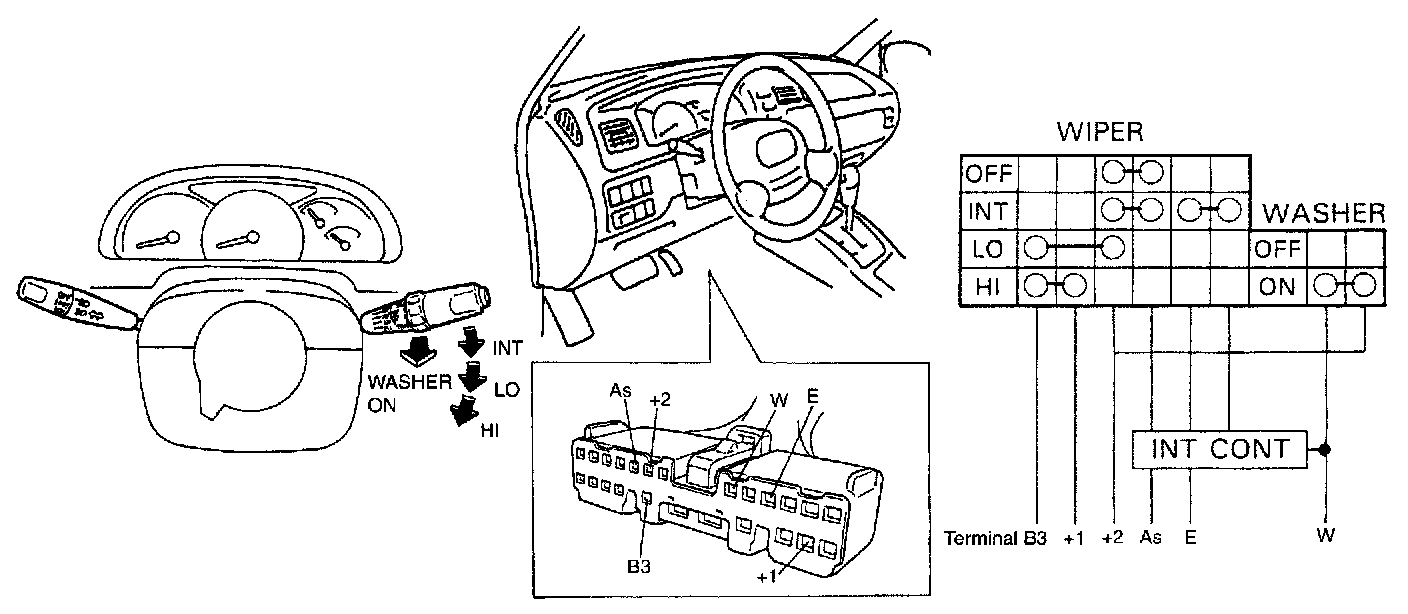

Front Wiper and Washer Switch (in combination Switch) On-Vehicle Inspection
1. Disconnect negative cable (-) at battery.
2. Disconnect combination switch lead wire coupler.
3. Use a circuit tester to check the continuity at each switch position. If any continuity is not obtained, replace switch.
