Wiper and Washer Systems: Diagrams

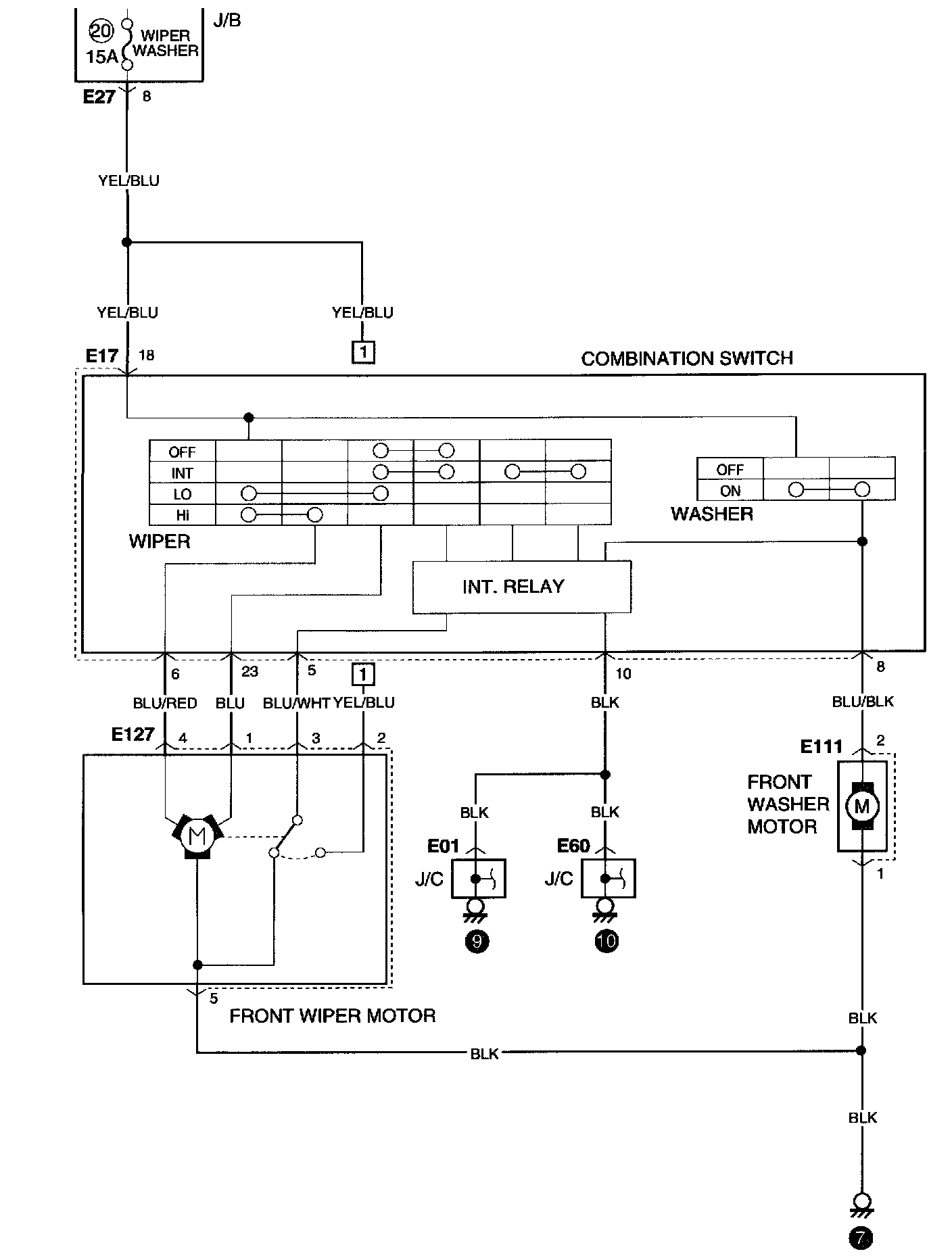

Windshield Wiper And Washer Circuit Diagram:

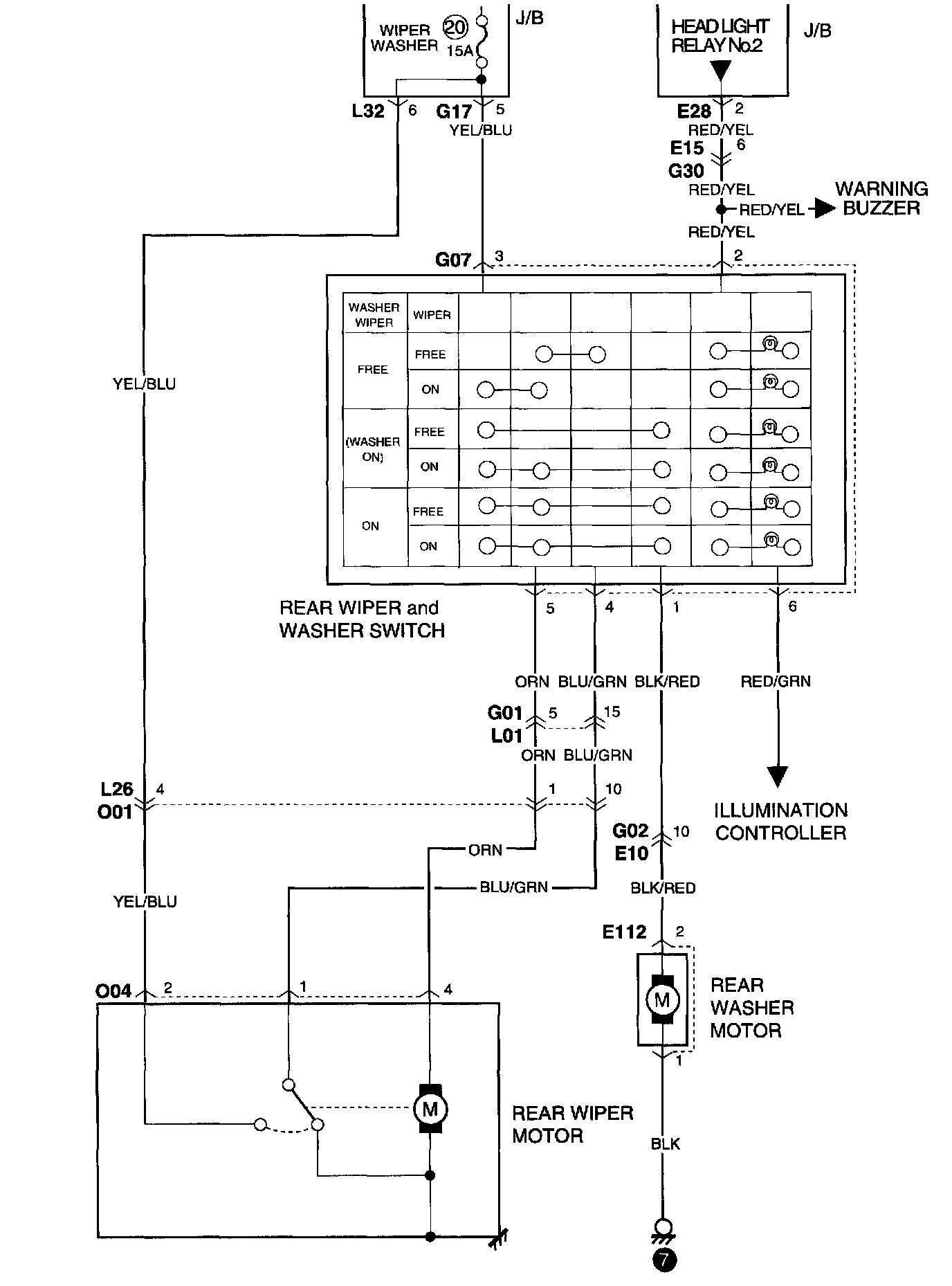

Rear Wiper And Washer Circuit Diagram:
