Heated Glass Element: Diagrams

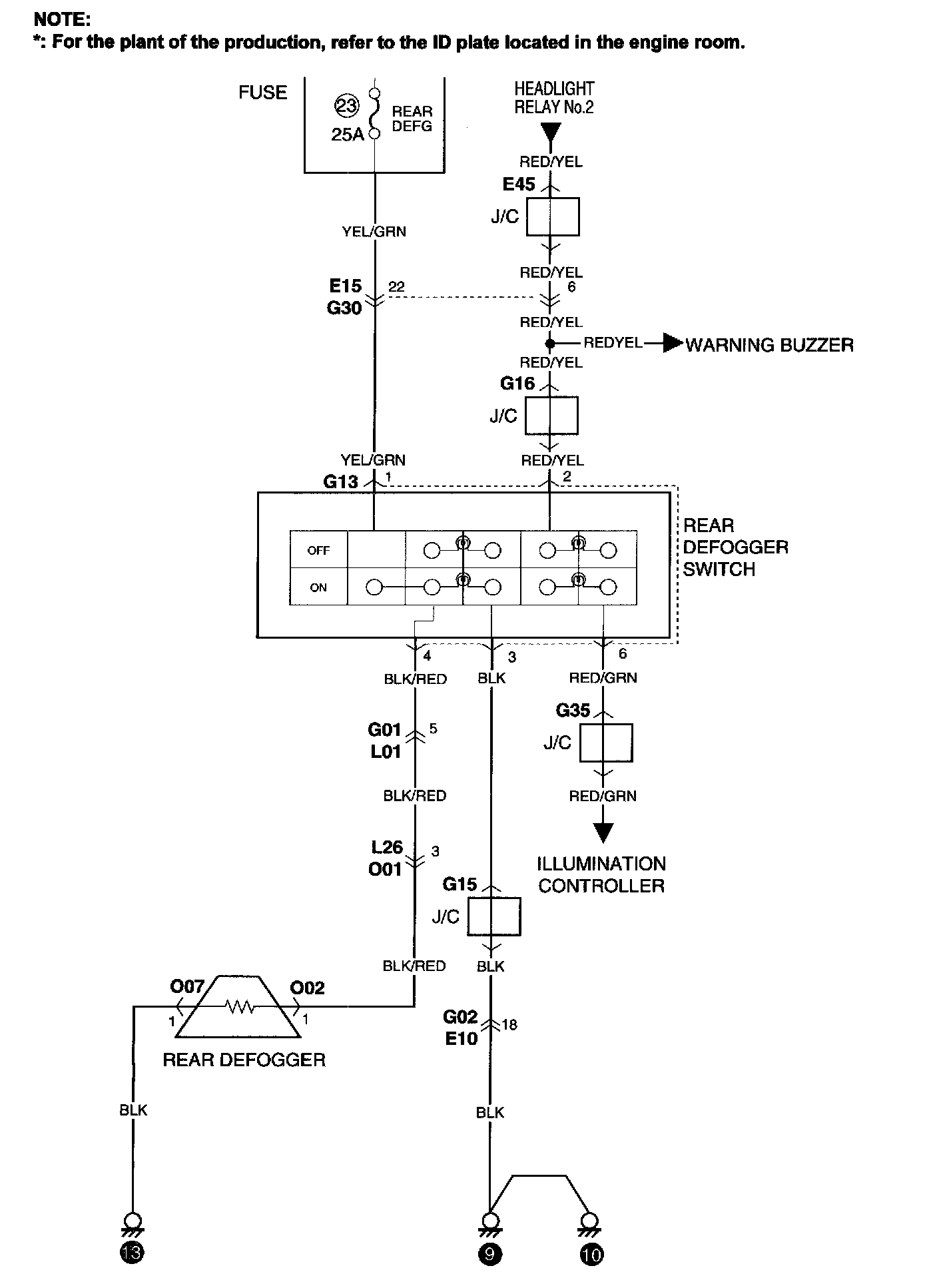

Rear Window Defogger Circuit Diagram For CAMI Production:

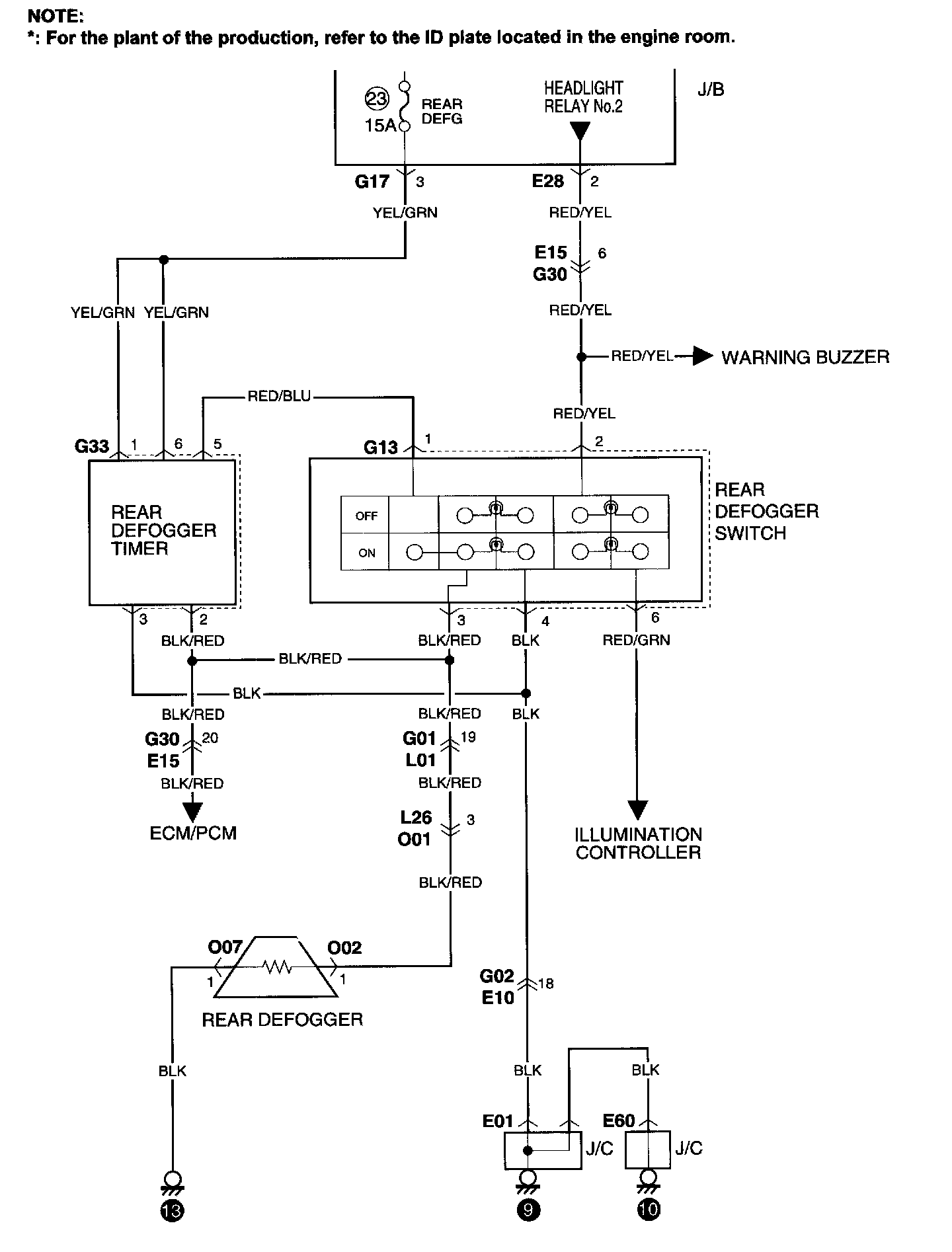

Rear Window Defogger Circuit Diagram For IWATA Production:
