Throttle Valve Cable/Linkage: Adjustments

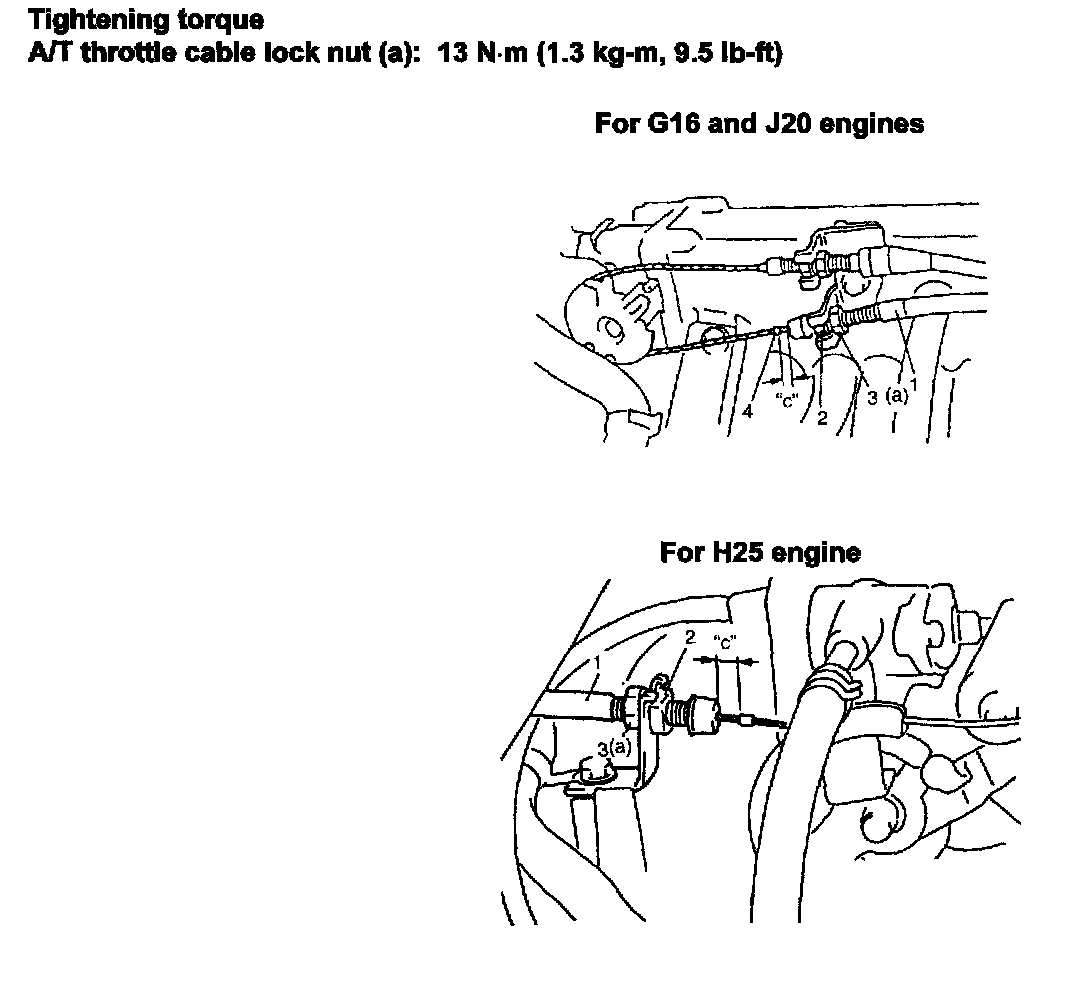

Adjustment1) Adjust installing position of A/T throttle cable (1) by turning cable adjusting nut (2) so that distance "C" between marker (4) and edge of outer cable is in specified value.
A/T throttle cable adjustment clearance (inner cable position)
"c": 0.8 - 1.5 mm (0.03 - 0.06 inch)
2) Tighten lock nut (3) to specified torque,
Installation of now cable
1) Install one end of cable on throttle valve cam in transmission.
2) Bend cable (1) with its radius in 100 mm as shown in figure and pull inner cable (3) by force of 1.2 N (0.1 - 0.2 kg, 0.22 - 0.44 lb) and take slack away.
3) Clinch marker (2) supplied with cable on inner cable (3) at distance "a" from edge of outer cable.
A/T throttle cable adjustment clearance (inner cable position) "a": 0.8 - 1.5 mm (0.03 - 0.06 inch)
4) Install another end of cable to engine throttle cam.
5) Adjust cable.
