Overall System

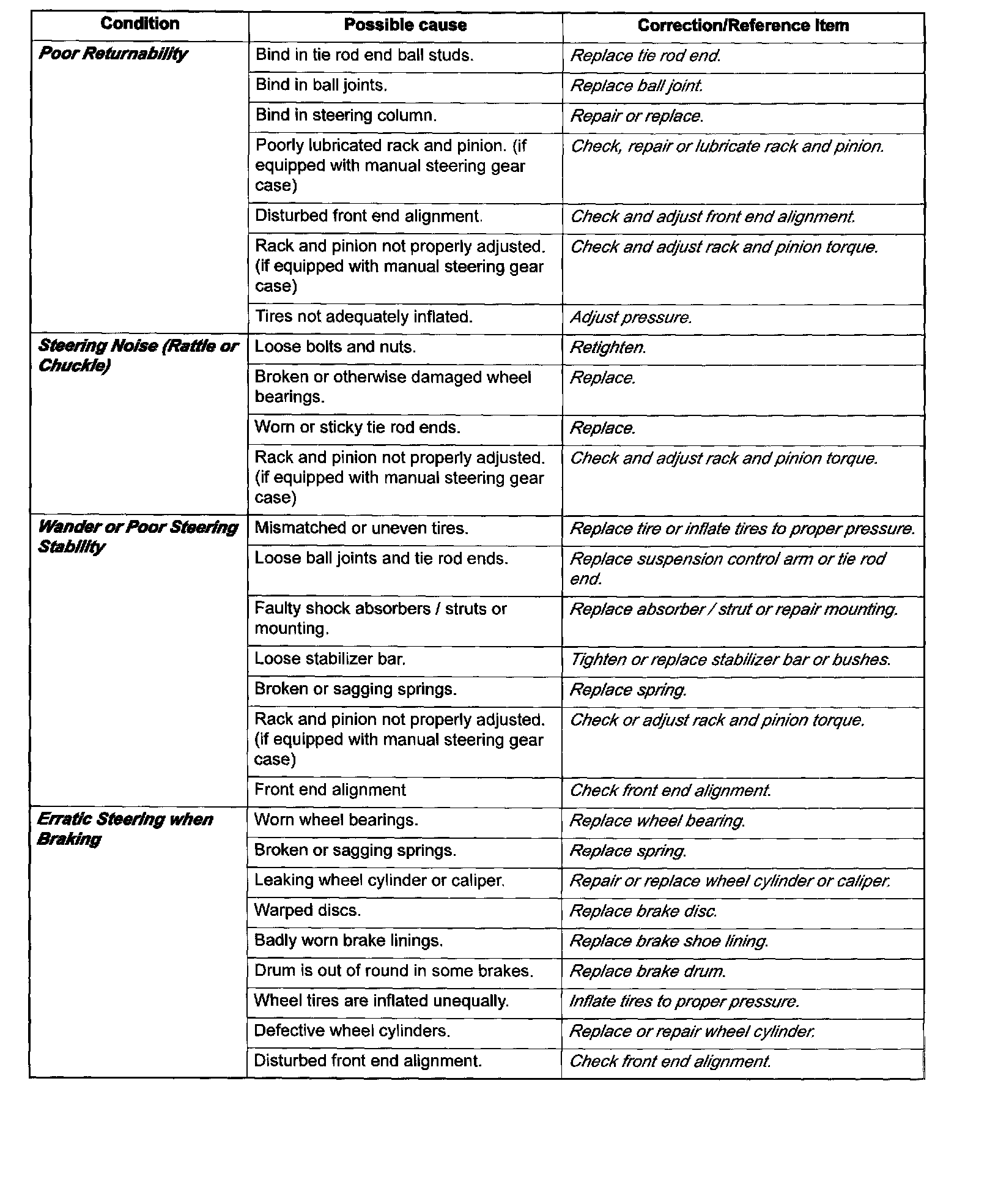

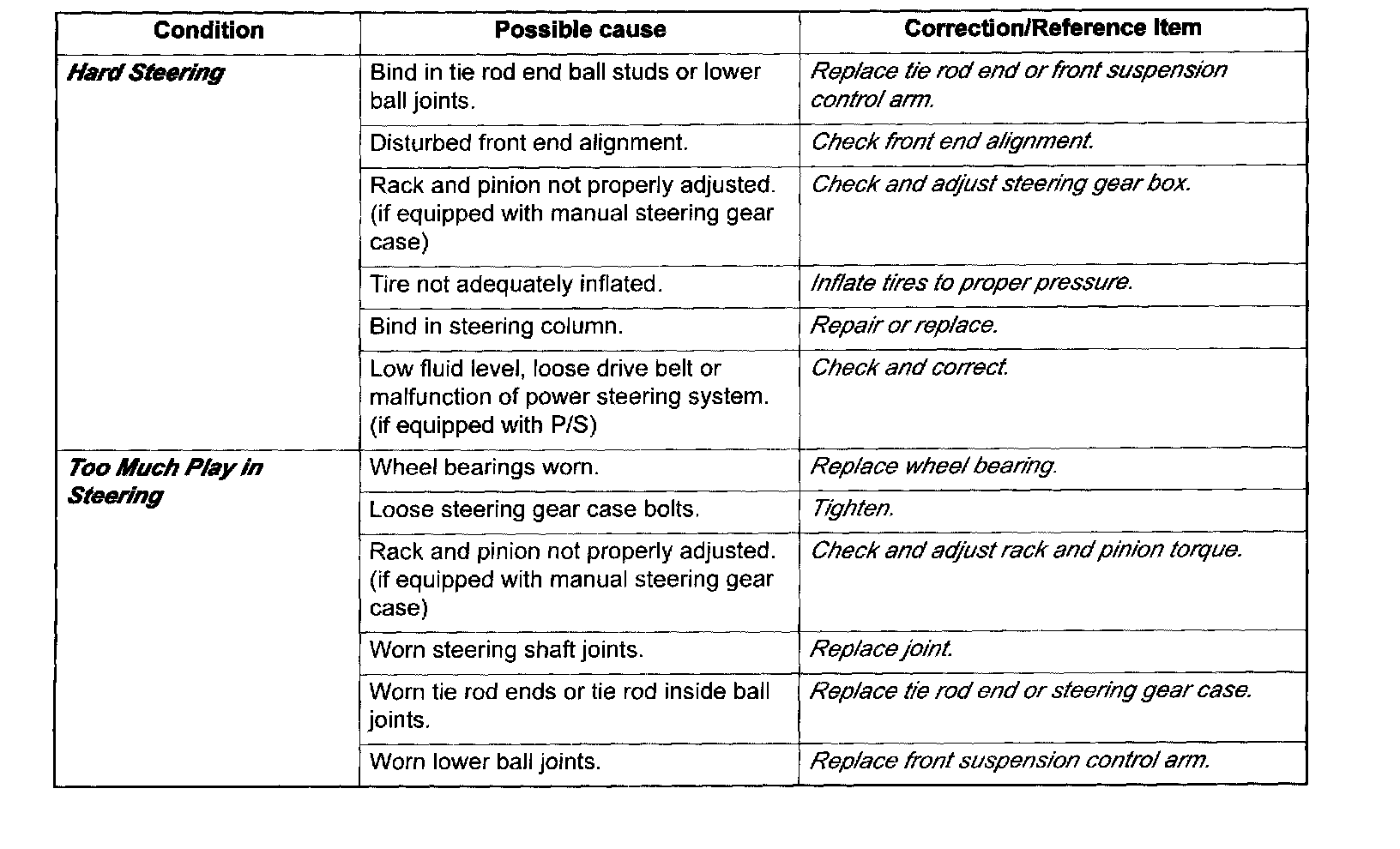

Steering Symptom Diagnosis





Part 1 of 2





Part 2 of 2

Since the problems in steering involve several systems, they must all be considered when diagnosing a complaint. To avoid using the wrong symptom, always road test the vehicle first.
Proceed with the following preliminary inspections and correct any defects, which are found.
^ Raise vehicle on a hoist and inspect steering system for loose or damaged parts.
