Fuel Pump Circuit Inspection

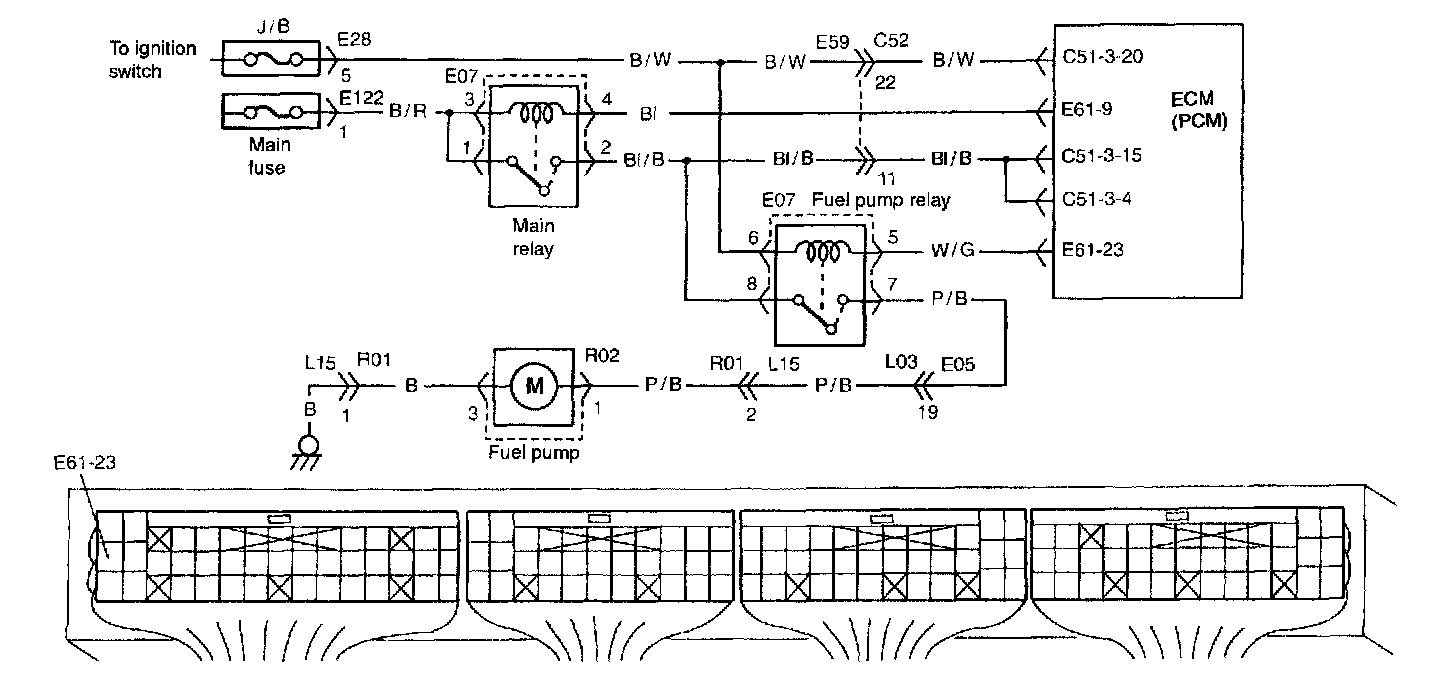

Wiring Diagram:






Inspection

CAUTION: Check to make sure that connection is made between correct terminals. Wrong connection can cause damage to ECM, wire harness etc.

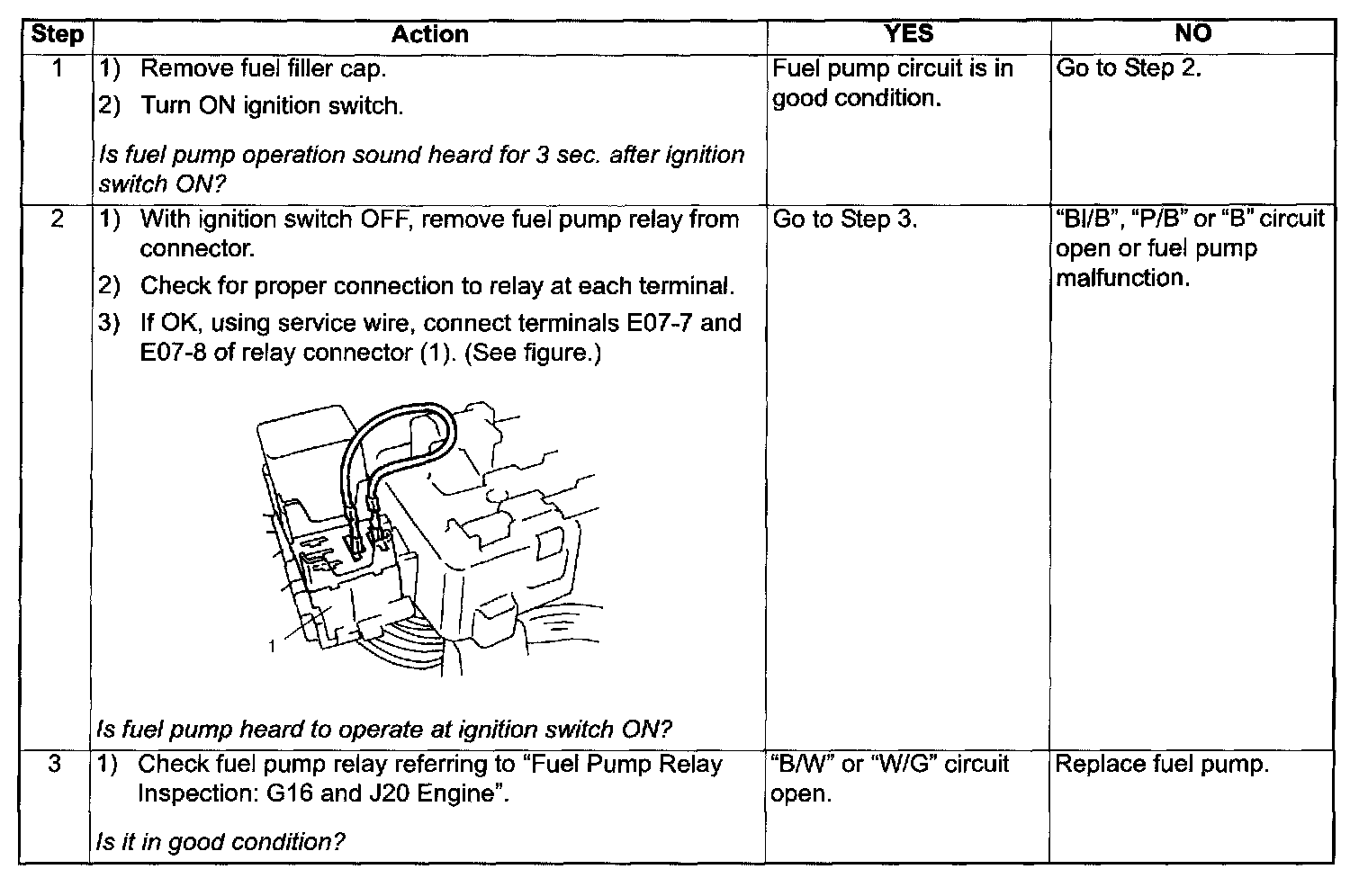

Step 1 - 3:
