Engine Room

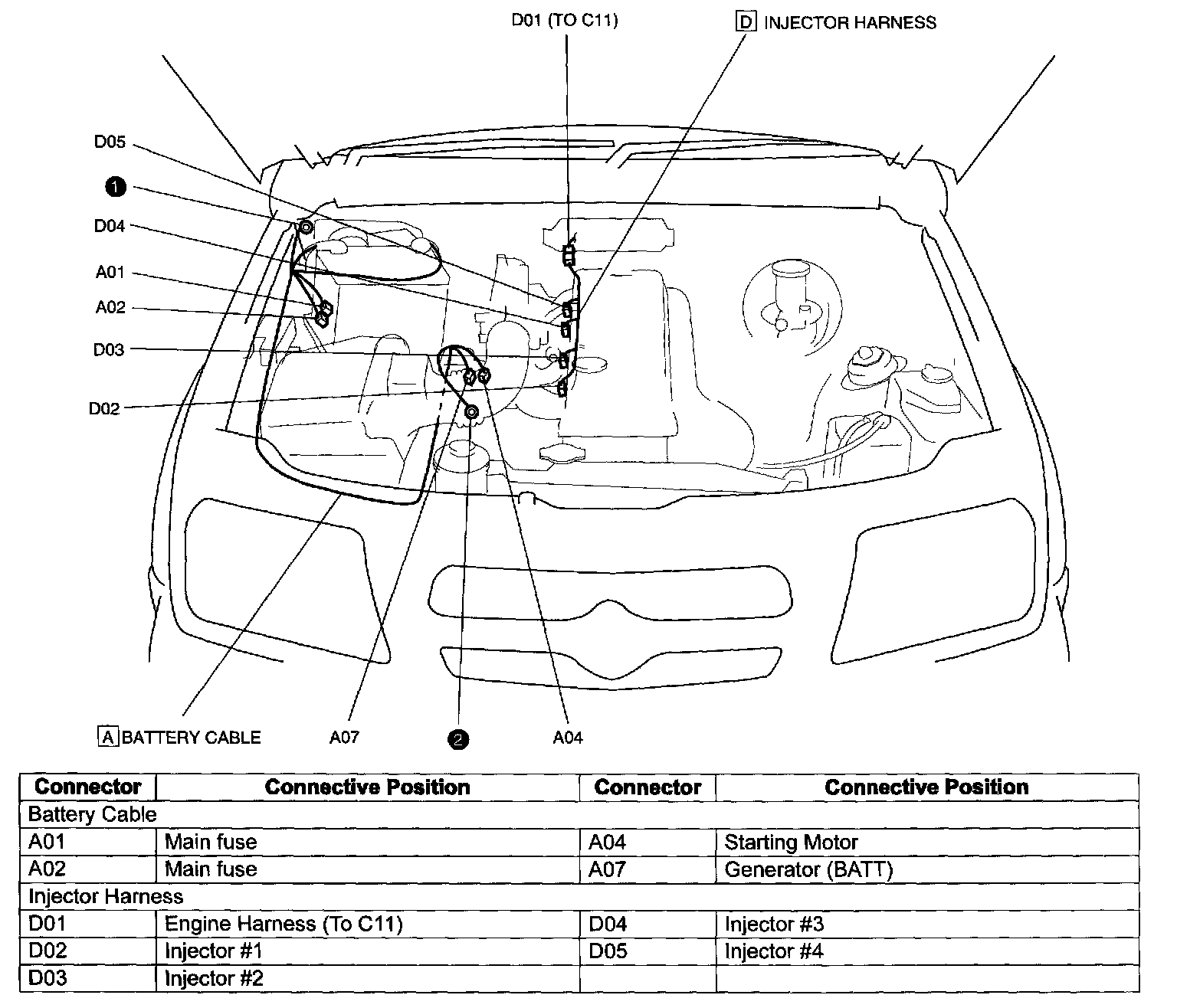

Engine Room A:Battery Cable / D: Injector Harness:

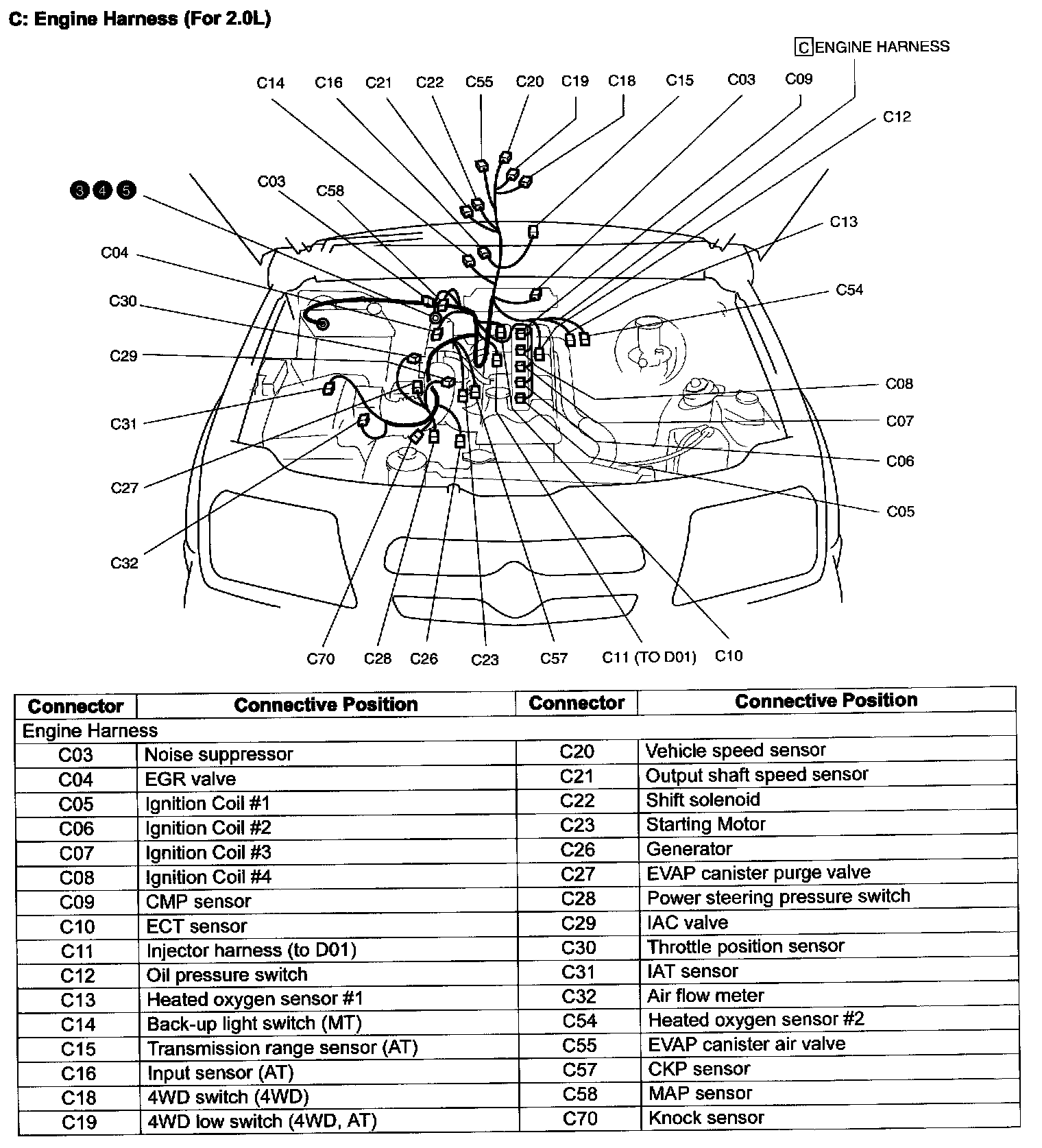

Engine Room C: Engine Harness:

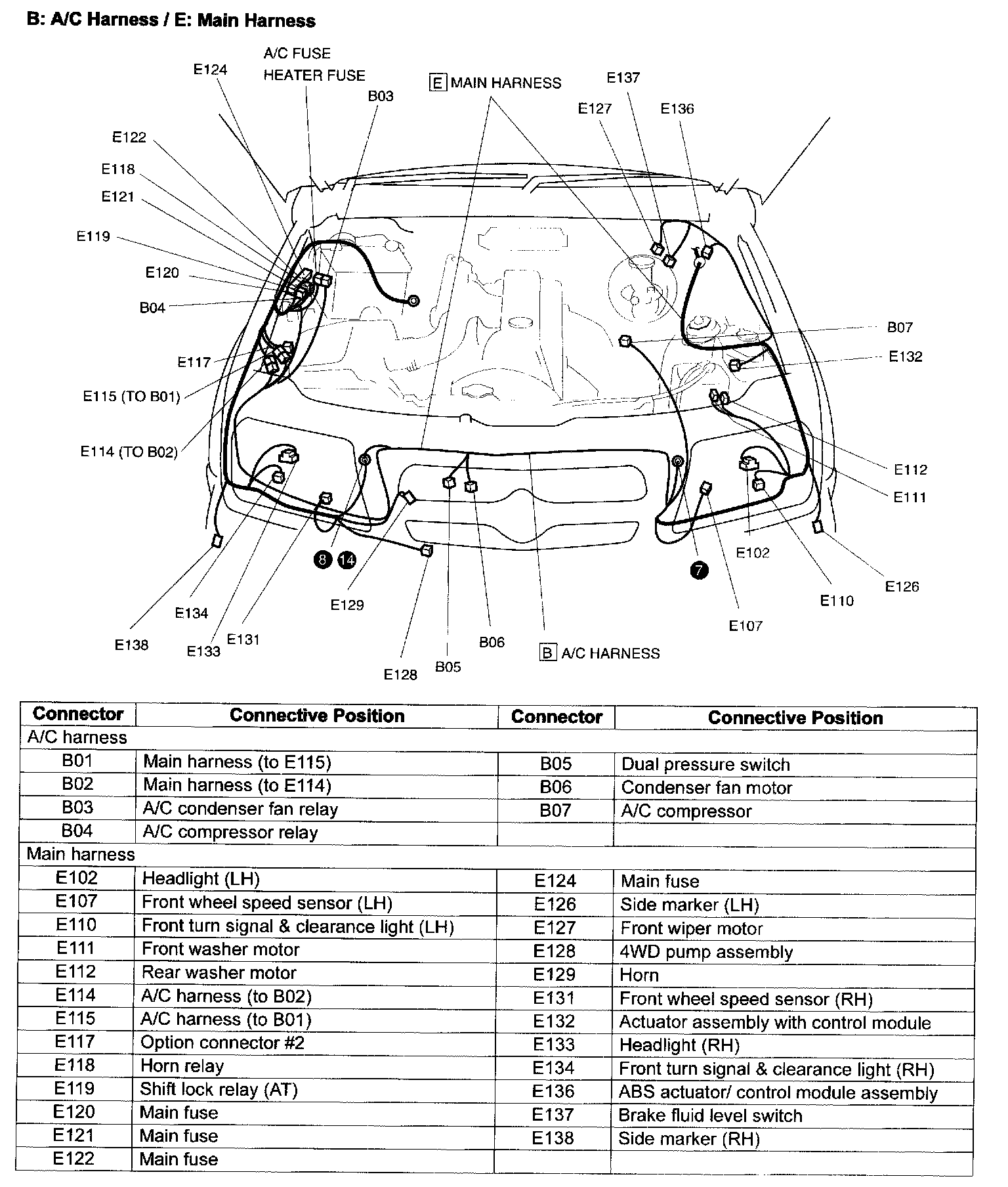

Engine Room B: A/C Harness / E: Main Harness:
