Side Ventilation Louver

Side Ventilation Louver Removal and Installation

Removal

1. Remove steering column hole cover.

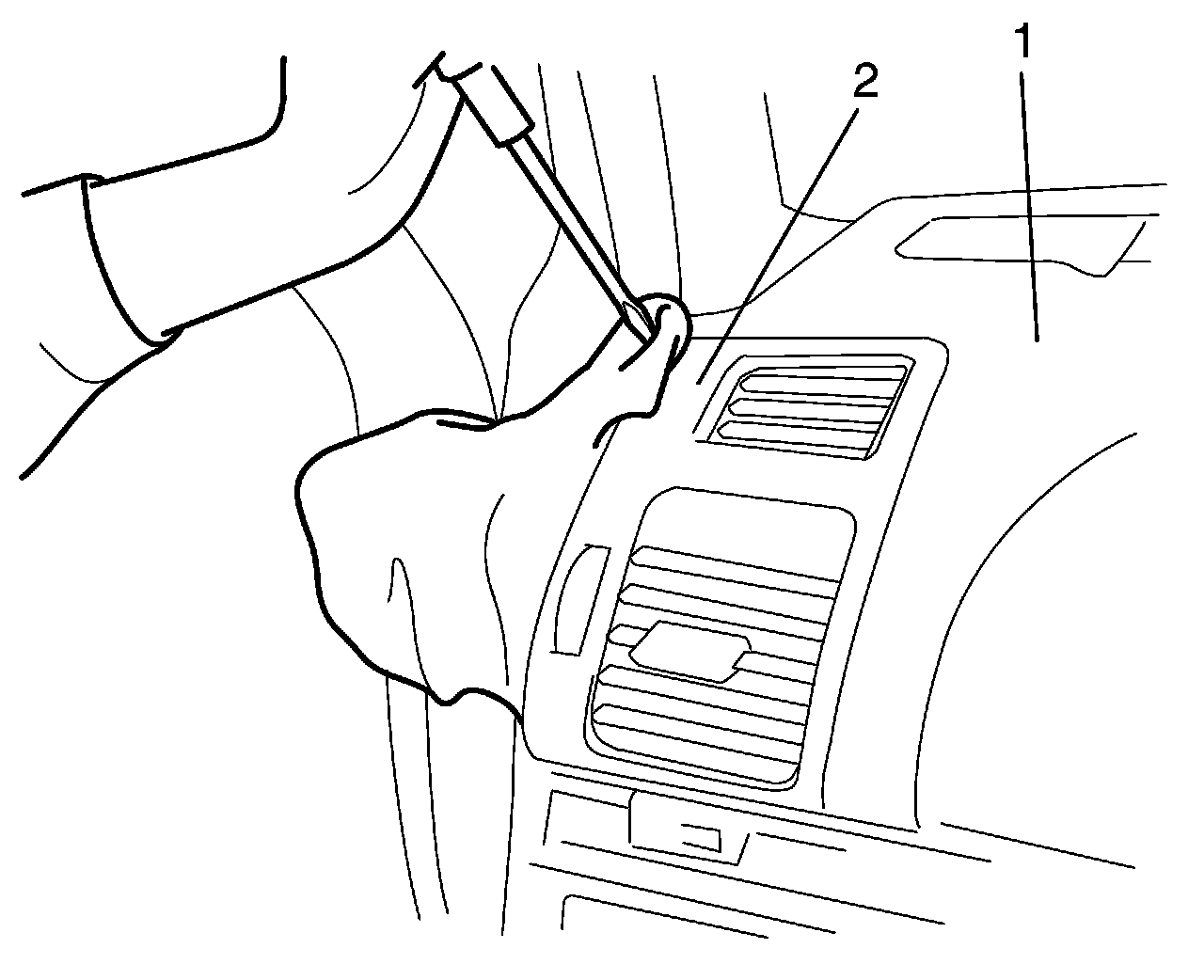

2. Remove side ventilation Louver (2) from instrument panel (1) as shown.

Installation
1. Install in reverse order of removal procedure.
