Center Ventilation Louver

Center Ventilation Louver Removal and Installation

Removal

1. Disconnect negative (-) cable at battery.
2. Disable air bag system referring to Disabling Air Bag System.

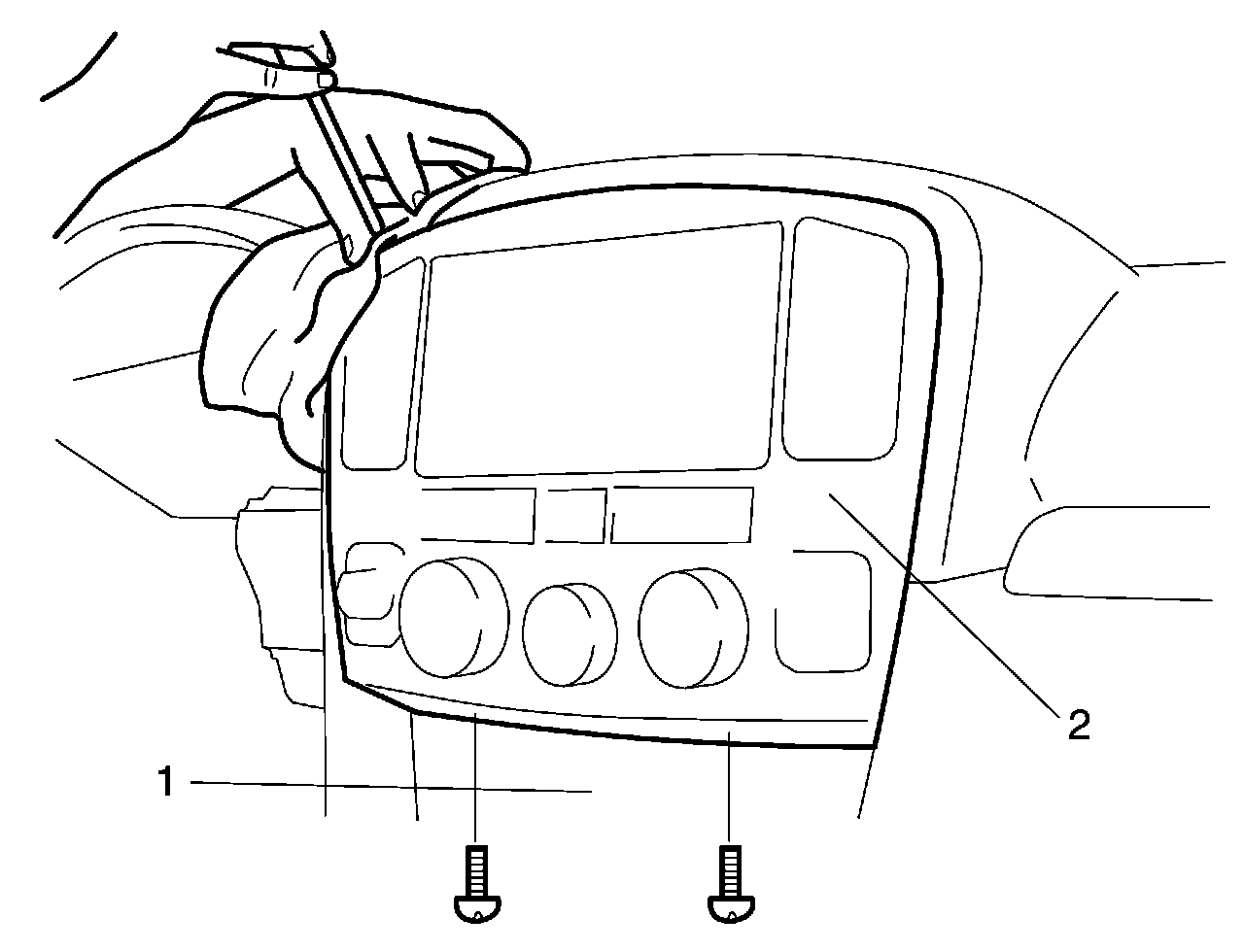

3. Remove center box (1), then disconnect couplers from HVAC control module and body control module.




4. Remove center garnish (2) as shown.




5. Remove center ventilation Louver (1) from center garnish (2).

Installation
1. Install in reverse order of removal procedure.
