License Plate Lamp

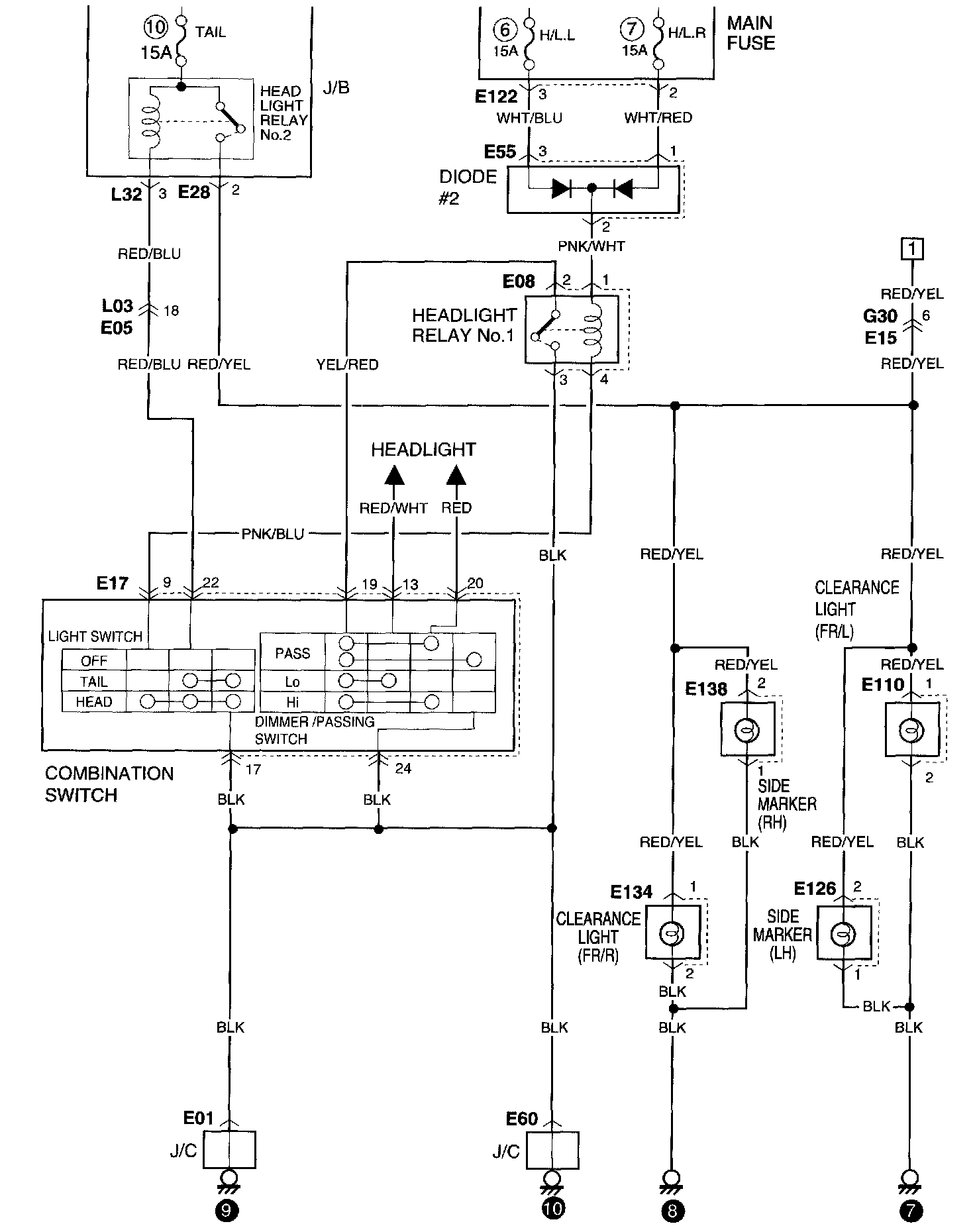

Clearance, Tall And Licence Plate Light Circuit Diagram Part 1:



Clearance, Tall And Licence Plate Light Circuit Diagram Part 2:
