Wiring Diagrams

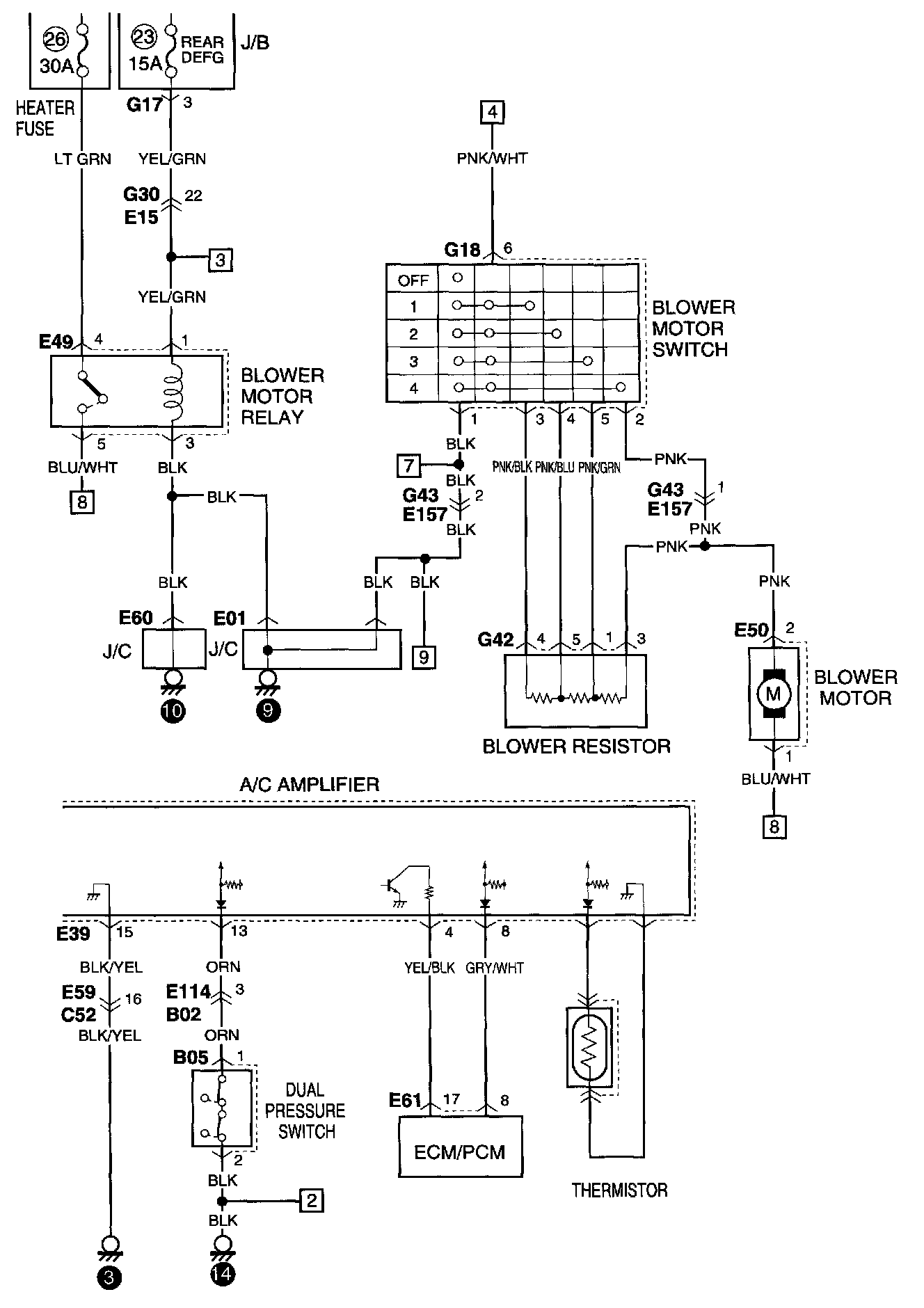

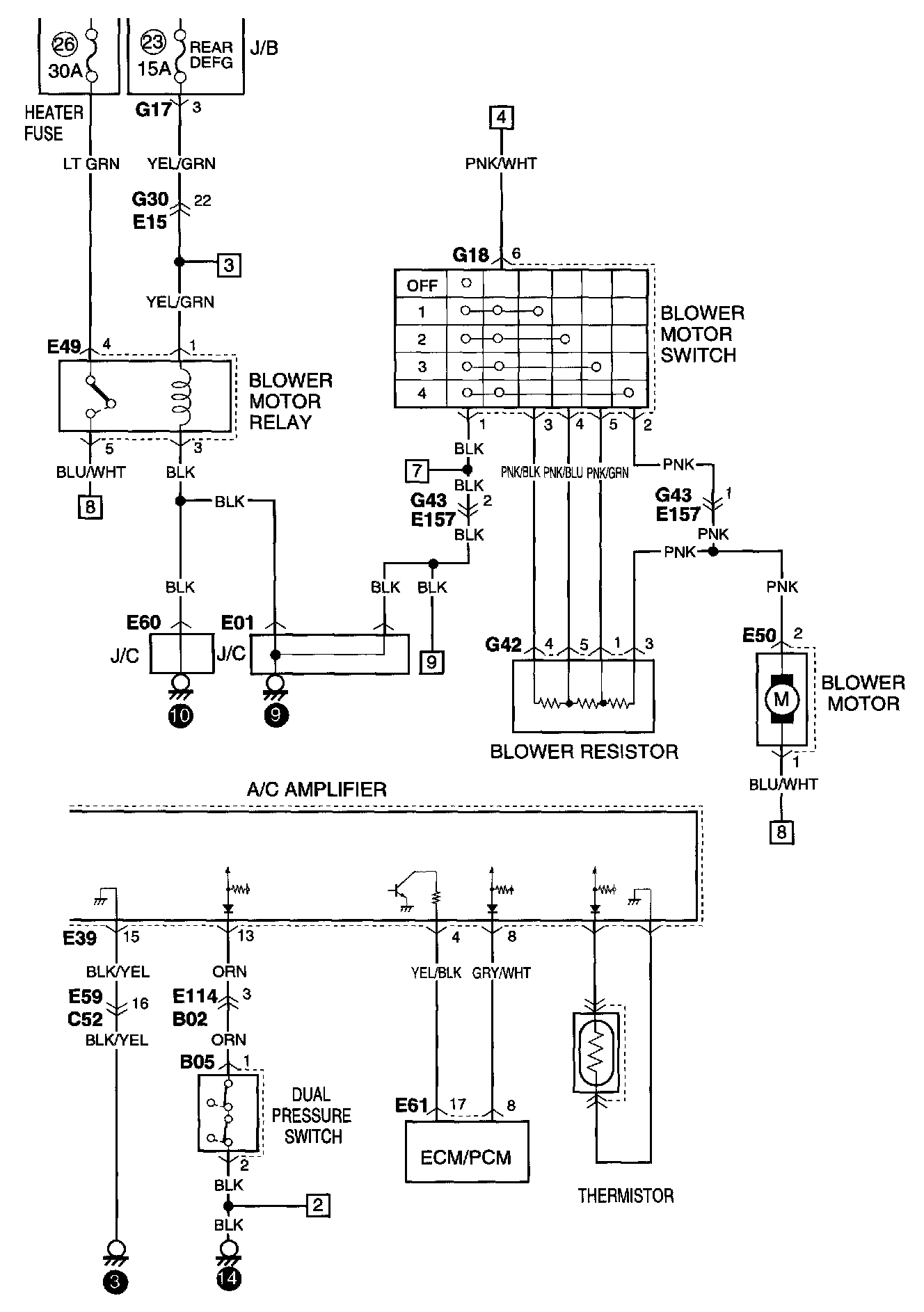

Heater Circuit Diagram Part 1:

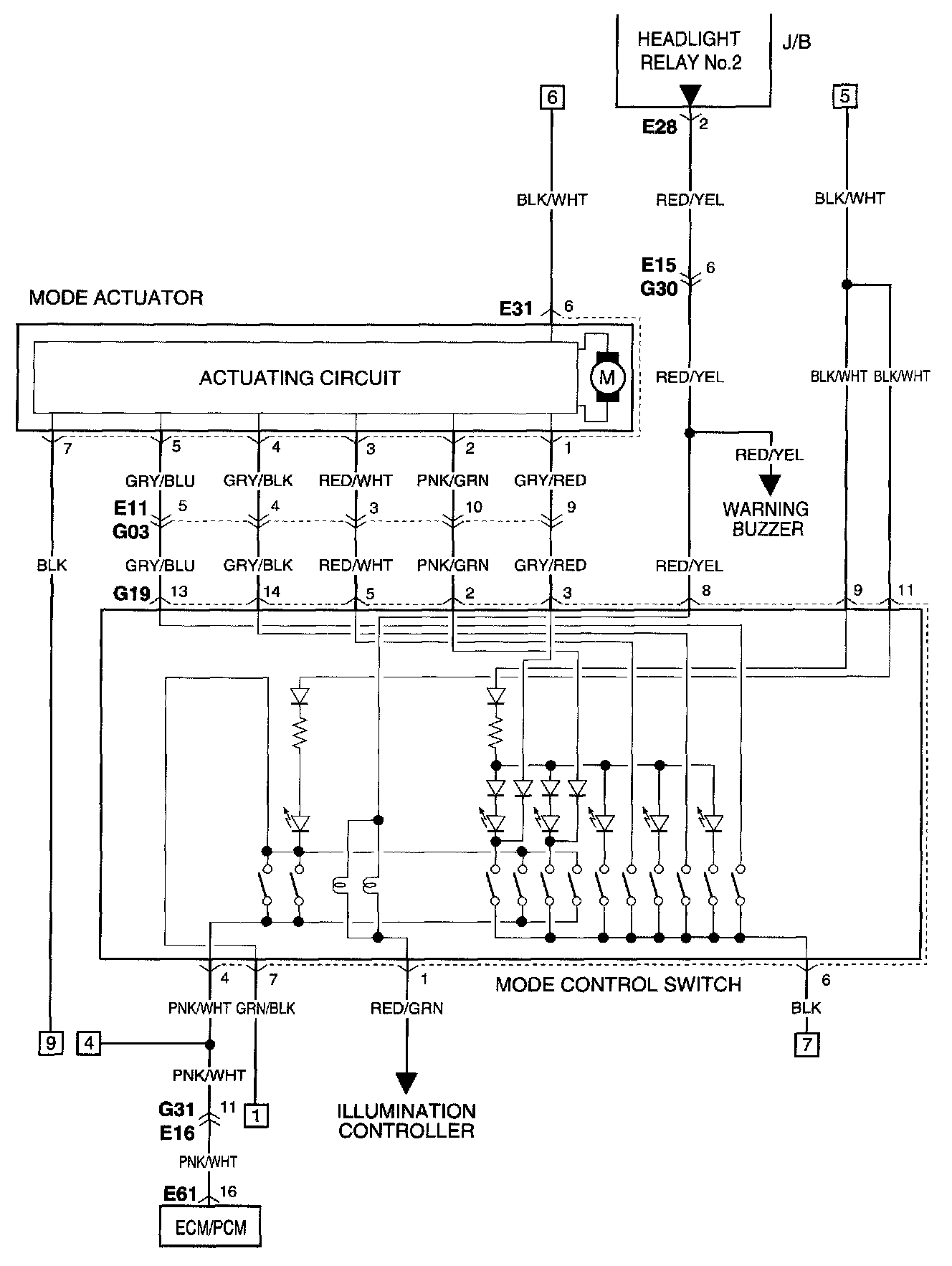

Heater Circuit Diagram Part 2:

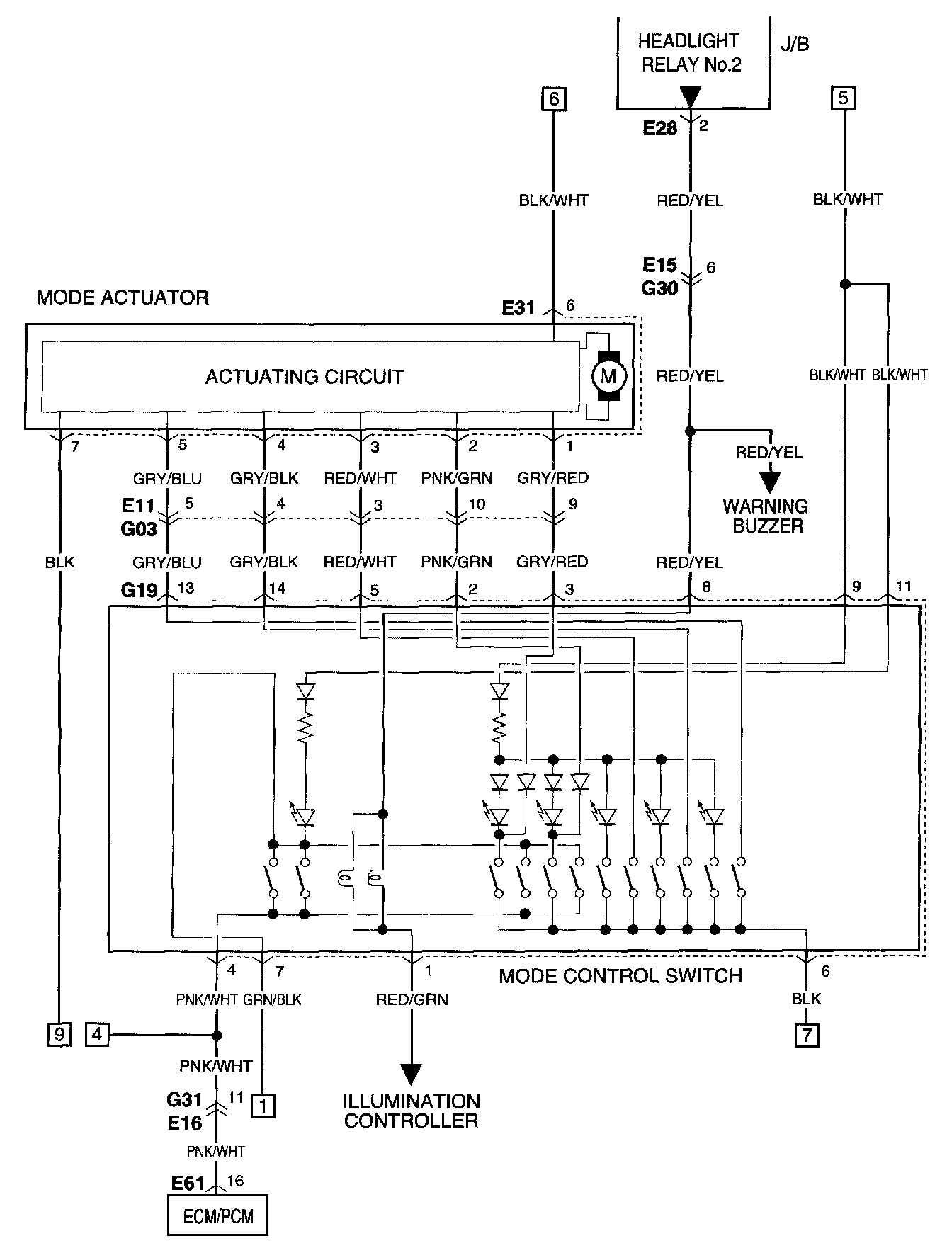

Heater Circuit Diagram - Part-3:

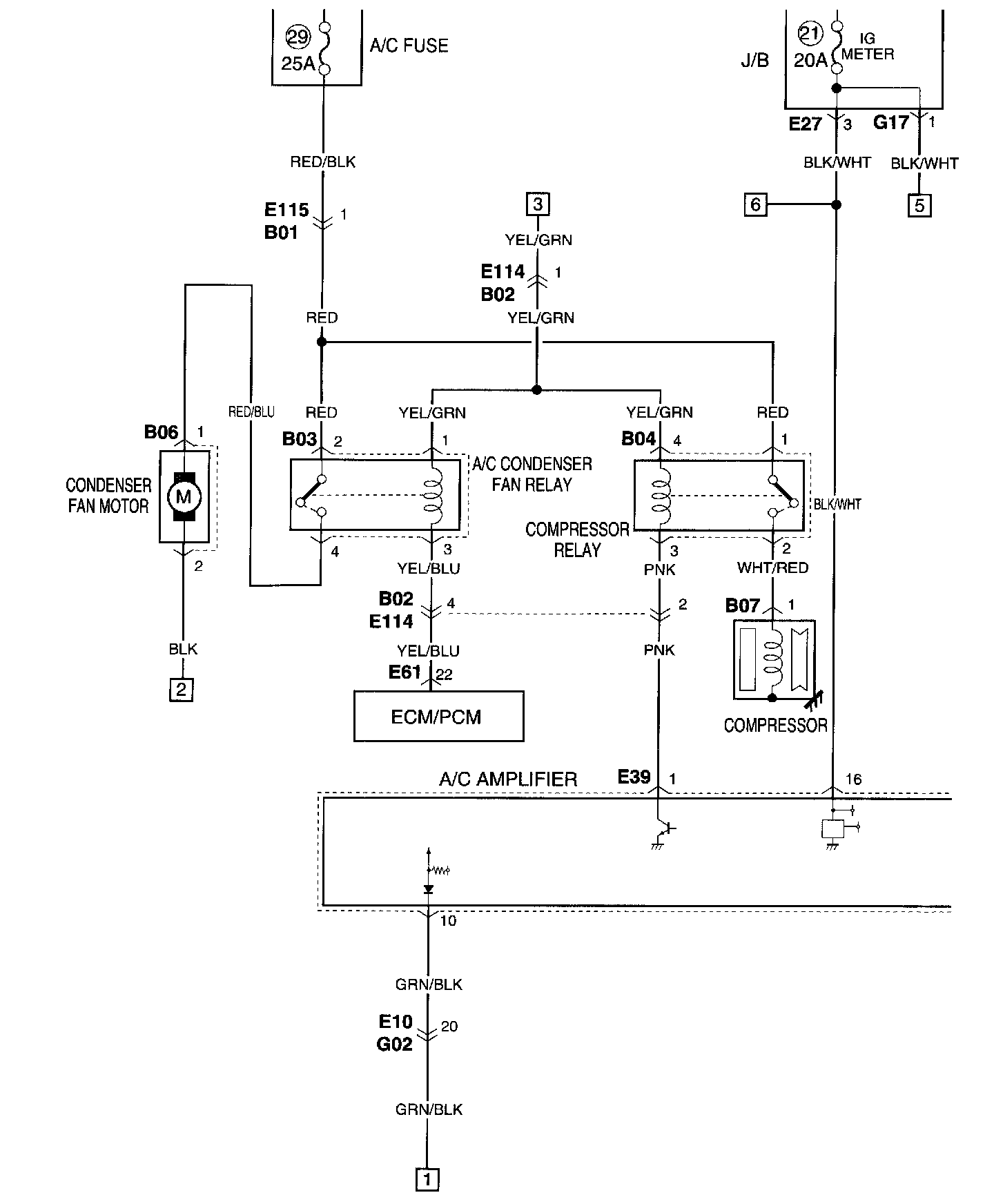

Air Conditioning Circuit Diagram Part 1:

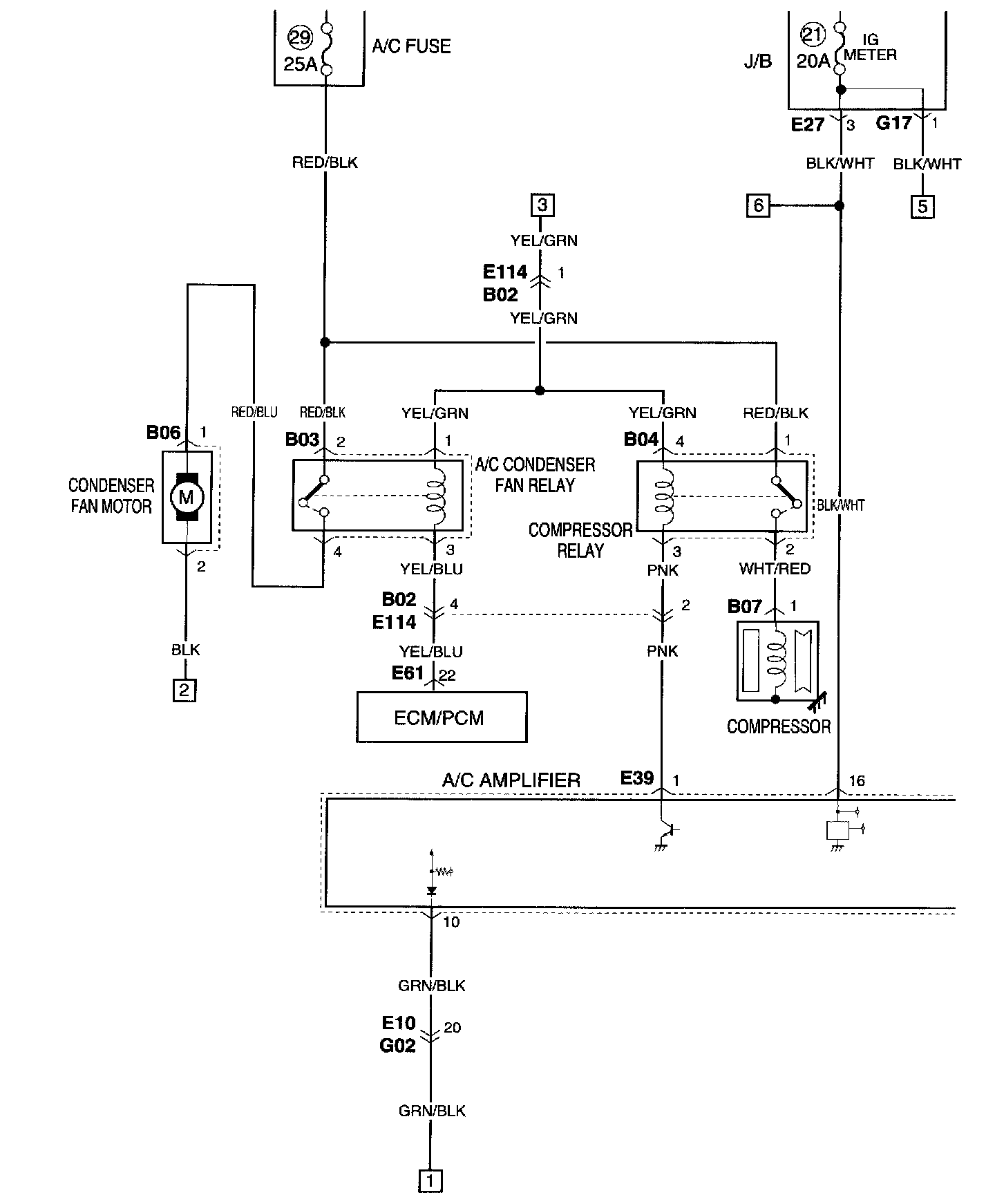

Air Conditioning Circuit Diagram Part 2:



Air Conditioning Circuit Diagram Part 3:
