Air Bag Systems

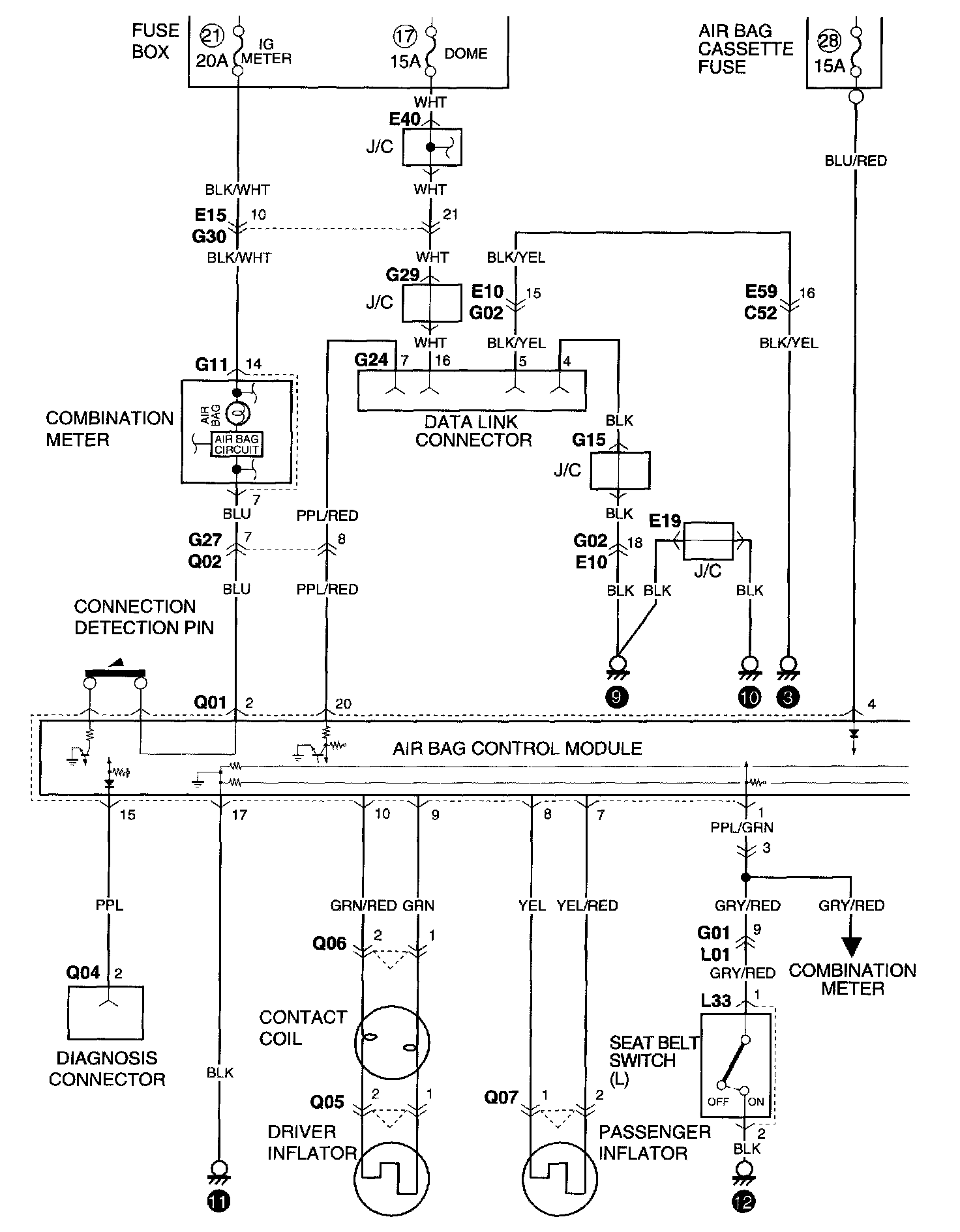

Air Bag Control System Circuit Diagram Part 1:

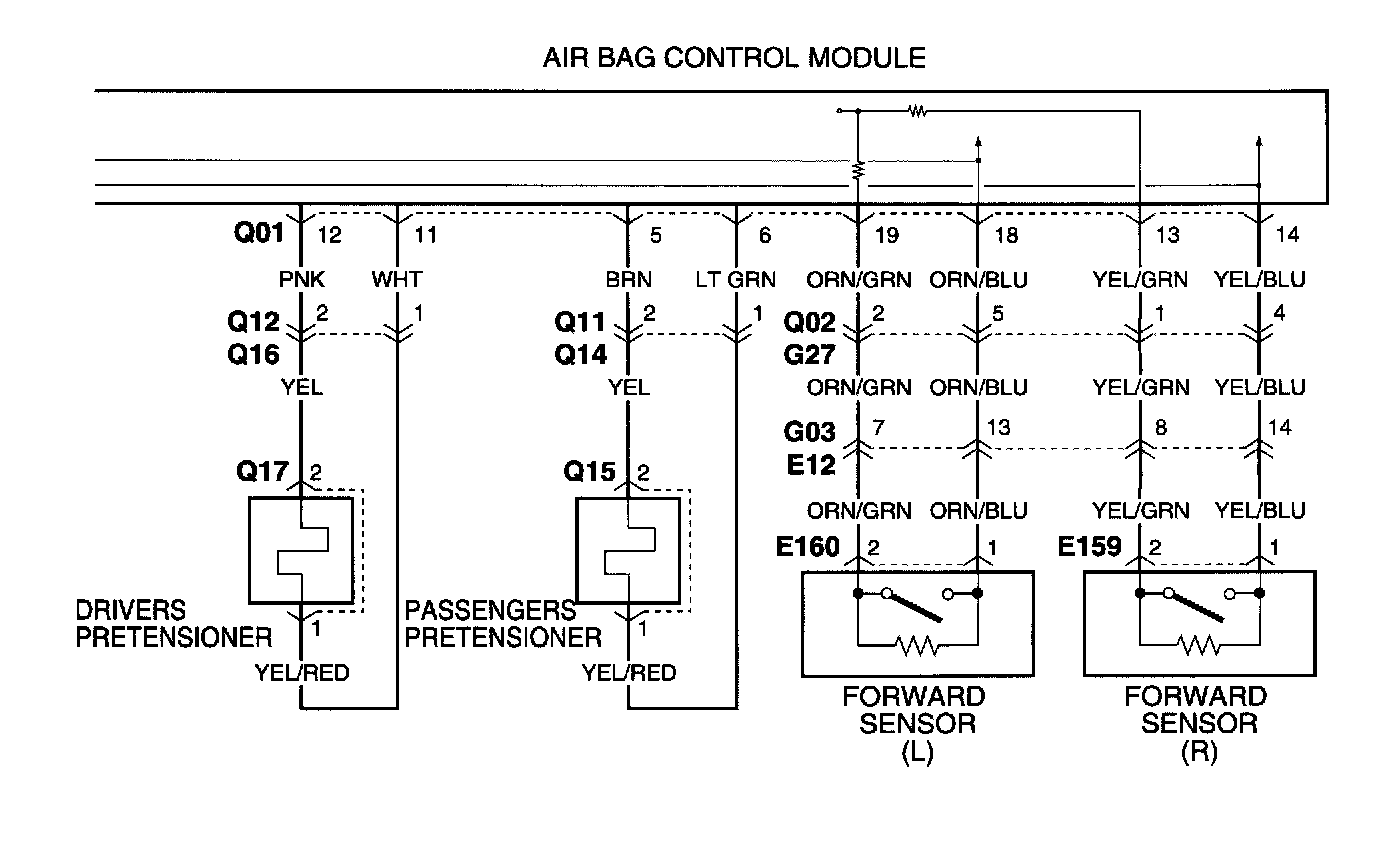

Air Bag Control System Circuit Diagram Part 2:

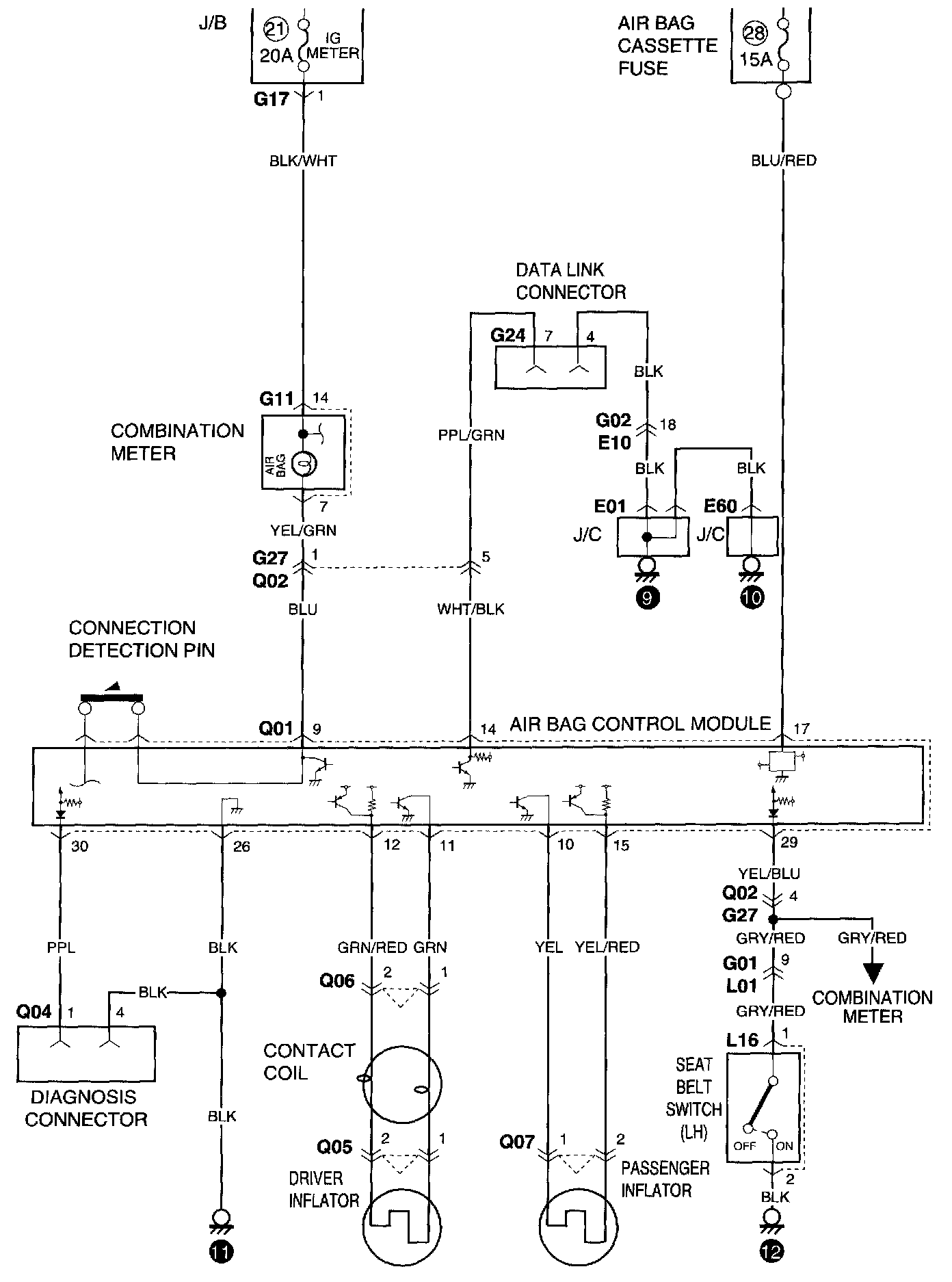

Air-bag Control System Circuit Diagram:
