Luggage / Roof Rack: Service and Repair

Roof Rail (If Equipped) Removal And Installation

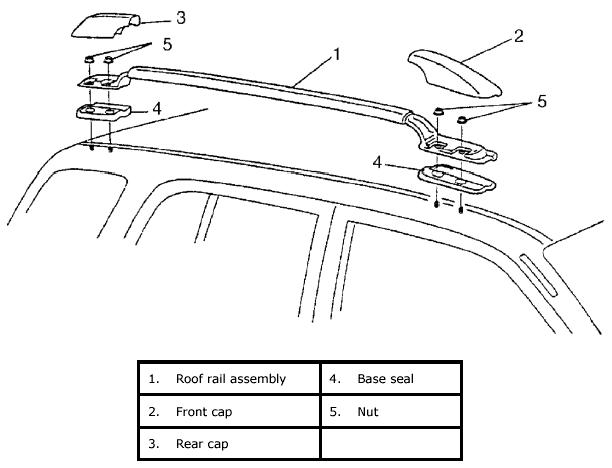

Roof Rail (If Equipped) Components:

Removal

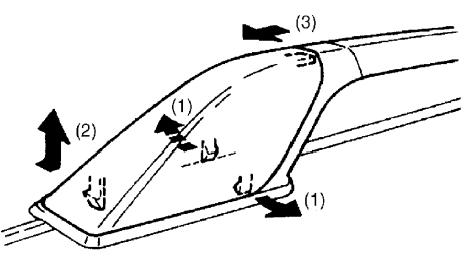

1. Remove roof rail front and rear caps as shown in figure.







2. Remove nuts.
3. Remove roof rail assembly.

Installation
Reverse removal procedure for installation.
Confirm that each roof rail fixing nut is tightened securely.
