Convertible Top: Service and Repair

Canvas Top And Topbow Frames Removal And Installation

Removal
1. Open canvas to referring to Owner's Manual.
2. Remove fording top and rear canvas top.

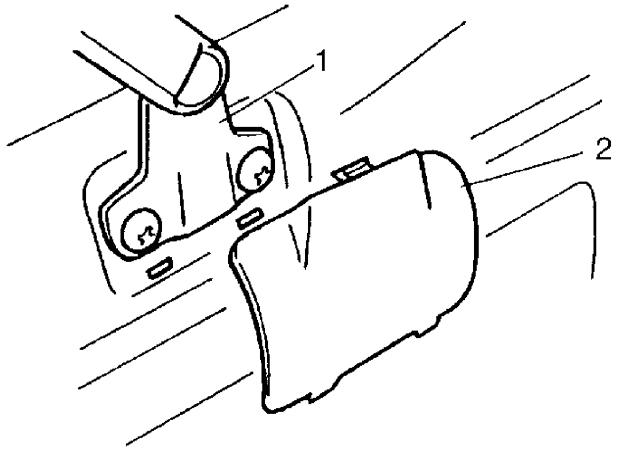

3. Remove topbow bracket cover (2).

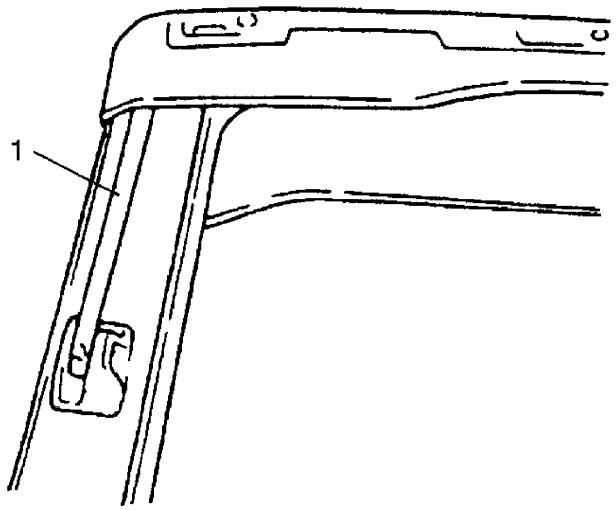

4. Remove topbow center frame (1).







5. Remove topbow front frame (1).







Installation
Install in reverse order of removal procedure.
