Symptom Related Diagnostic Procedures

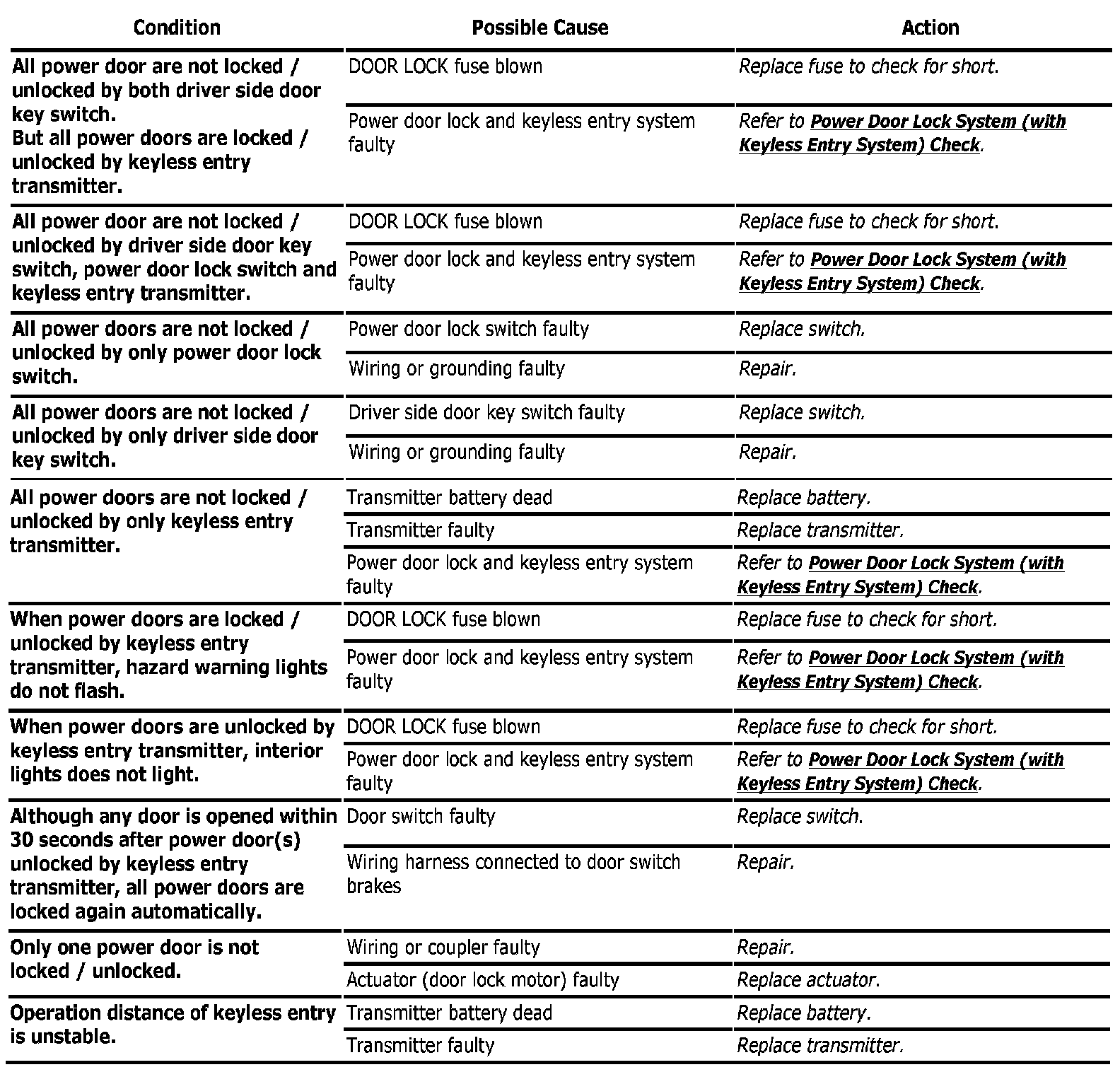

Power Door Lock System Symptom Diagnosis

Power Door Lock System (without Keyless Entry)







Power Door Lock System (with Keyless Entry)
